| Prod Model: |
UVO-P7.62-D1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Type: |
DOT Martix |
| Warranty: |
2 Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Single Color |
| Display Function: |
Image & Text Display |
| Scanning Mode: |
1/8 Scan |
| Application: |
Stage Performance |
| Pixel Pitch: |
7.62mm |
| IP Rating: |
IP43 |
| Certification: |
RoHS |
| Pixel Density: |
27,777 dots / m² |
| Pixel Configuration: |
1r |
| System Operating Platform: |
Window2007 |
Product Description

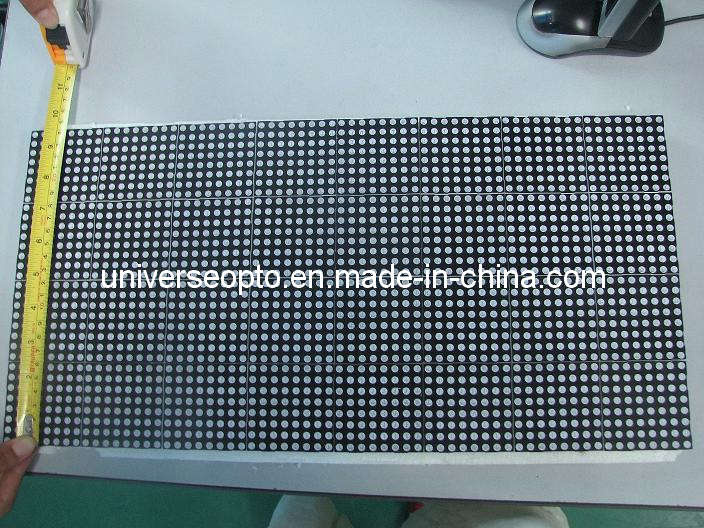

P7.62 Indoor LED Module (UVO-P7.62-D1) LED display
Pitch: 7.62mm
Pixel Configuration: 1R1G
Package Type of LED: COB(DOT Matrix)
Module Size: 488X244MM
Module Resolution: 64x32
Brightness: 3500CD per square meter
Max Power Consumption: 600W per square meter
Drive mode: 1/4
Driving IC: MBI5026GF
Driving Power: 5V
Lifespan: >100000H
Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.
Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.
Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
