| Prod Model: |
P7.62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
3 Years |
| Color: |
Full Color |
| LED Chip: |
Epistar Fromtaiwan |
| Best Viewing Distance: |
7-150m |
| Frame Frequency: |
60Hz |
| Refresh Frequency: |
350Hz |
| Life Span: |
100,000hours |
| Mtbf: |
10000 Hours |
| Certificate Approved: |
CE,RoHS,SGS |
| IP Grade: |
IP 60 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
7.62mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
17,222 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP60 |
| Certification: |
SGS |
Product Description

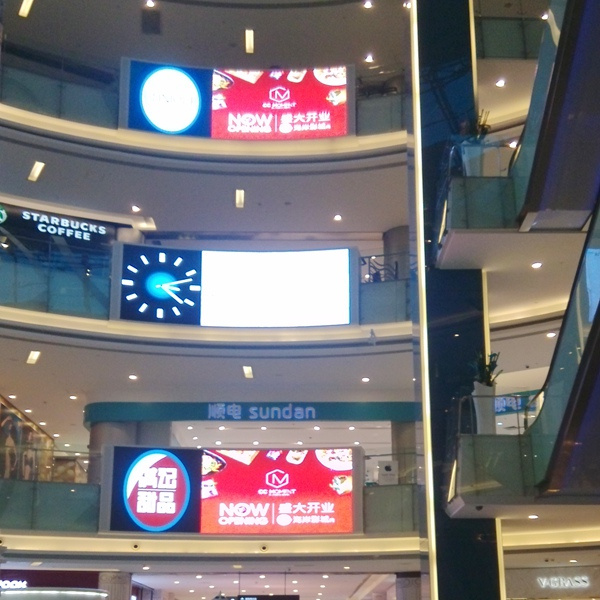

P7.62 LED Display Strip
1. UL, CE&RoHS certificate
2. Excellent visual effect
3. Low power consumption
4. Life Span: 100, 000hrs
5. Warranty 5year
Features and Advantages
1. In order to ensure that images and tests are clear, vivid and consistent, all the chips for the entire RGB LED screens for outdoor screens within 100 square meters are at the same grade such as the same brightness and the same wavelength.
2. In order ensure screen background can become matt, completely absorb LED reflective light and eliminate shadow and ghosting, we adopt imported glue to varnish module surface, the glue thickness for each module is not more than 0.1mm, so the color is consistent and uniform.
3. To ensure product reliability and long life, we select the best chips for all outdoor display, red chips are from Hitachi brand, blue and green ones come from US CREE.
4. Easy to maintain and achieve single-pixel and single-lamp maintenance.
5. High quality at competitive prices. 6. Wide applied in stadiums, advertisemjent, banks, securities exchange, stations, entertainment, shopping malls, postal offices, schools, monitoring, restaurants, enterprises etc
| The technology parameter of P7.62 indoor |
| Item | P7.62 |
| 1 | Pixel pitch | 7.62mm |
| 2 | Size of unit board | 244mm X 122mm |
| 3 | Resolution of unit board | 32X 16 |
| 4 | Density of pixel | 17222dots/m2 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | ≥8m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Maximum power consumption | 600~1000W/m 2 |
| 13 | Brightness | 2000-5000cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/16 or 1/8 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | 350Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP20~IP65 |
| 22 | Working temperature | -20°C~80°C |
| 23 | MTBF | >10000 hours |
| 24 | Life span | >100,000 hours |
| 25 | Computer operation system | Win XP/Vista/ Win 2000/WIN7ect. |
| 26 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC.ect |
