Product Description

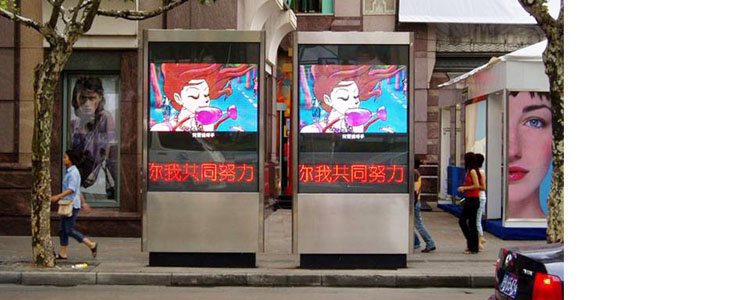

This serial of SMD Outdoor Full Color LED Display Screen is a revolutionary development that Orient contributes to outdoor full color LED display, which made the outdoor LED display with precise picture and super viewing angle be possible. Its key component is the integrated high density outdoor full color DOT-matrix module, which is different from the traditional outdoor full color LED display that is composed by single LED diode. It is a revolution from point light source to sphere light source. There is integrated LED chip with Red, Green and Blue colors in the LED cup of every pixel. Thus, every pixel will be lighting in mixed color. The module outside is covered by a plastic mask, while inside is sealed up by silica gel.
|
Module Size(W * H) |
192mm*96mm |
Pixel Configeration |
1R1G1B |
Pixel P itch(mm) |
6mm |
Pixel Density |
27777dots/ m 2 |
Display Resolution |
32dots*16dots |
Driving Method |
1/4 duty |
Cabinet Size(W * H) |
1344mm*1440mm |
Module Qty |
105pcs |
Cabinet Resolution(W* H) |
224dots*240dots |
Cabient Pixel |
53760dots |
Weight |
200kg/pc |
Area |
1.935m 2 |
Avarage Power Consuption |
450W/m 2 |
Standard Max Consuption |
1050W/m 2 |
|
Protection Grade |
IP65 |
|
Brightness |
4800CD/m 2 |
System Operating Humility |
10% ~ 90% RH |
Oprating Temprature |
-20& ordm; C~+60& ordm; C |
Optimal Viewing Distance |
2m-60m |
Display Color |
1.070, 000, 000 |
Gray Scale |
16384 |
Frame Frequency |
60HZ |
Refresh Speed |
> 2000HZ |
Power Supply |
110V 220V/50HZ |
MTBF |
≥ 10000HOURS |
Life Span (50% brightness) |
≥ 100, 000HOURS |
Control Mode |
synchronization with PC |
Oprating System |
WINDOWS(98/2000/XP/Vista) |
Input Signal Format |
VGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV |
