| Prod Model: |
teeholed PH6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Chip: |
Epistar, Sanan, Nationstar |
| Power Supply: |
Chuanglian, Chenglian, G-Energy, Meanwell |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| System Operating Platform: |
Winxp, Win7, Win2000, Win8 |

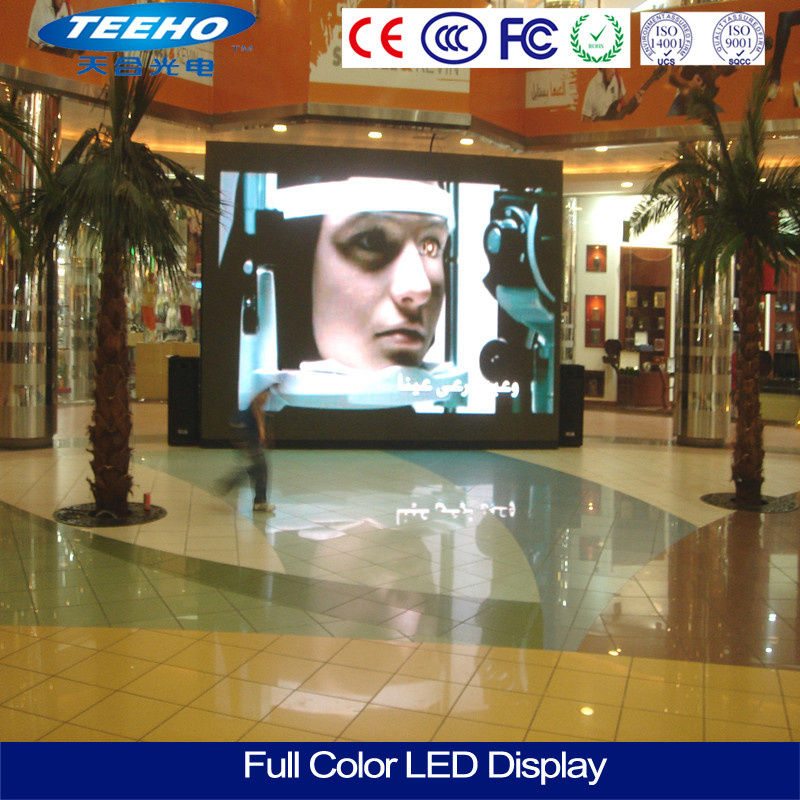

Product Description
| Specitication: | P6 LED Panel Specification |
|
| NO: | Product Name | Specification |
| 1 | Pixel Pitch | 6mm |
| 2 | Pixel Configuration | 1R1G1B/SMD3528 |
| 3 | Density | 27,777 pixel/m2 |
| 4 | Moduel Size(L×W)mm | 192mm×192mm |
| 5 | Cabinet Size(L×W×H)mm | 768mm×768mm×130mm |
| 6 | Module Resolution | 32×32 |
| 7 | Cabinet Resolution | 128×128 |
| 8 | Driving Method | 1/8 Scan |
| 9 | Driving IC | MBI5024 |
| 10 | Brightness | 1800cd/m2 |
| 11 | Contrast | 1000:01:00 |
| 12 | Brightness Adjustment | AC 85-264V |
| 13 | Power Consumption | Max Power:<900W |
| 14 | Average power: <320W |
| 15 | Cabinet Weight | <15kg |
| 16 | Color Temperature | 3200K-9300K |
| 17 | Horizontal Viewing Angle | 120º |
| 18 | Vertical Viewing Angle | 90º |
| 19 | Signal Processing | 10 or 14bit |
| 20 | Grey Processing | 1024×1024×1024
16834×16834×16834 |
| 21 | Control Distance | Cable100m,Multimode500m,Single mode
2km |
| 22 | Frame Frequency | 60 Hz |
| 23 | Refresh Rate | >600Hz |
| 24 | Control Mode | Synchronous/Asynchronous |
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve
|
| 26 | Users can choose the recommended curve, also can be adjusted according to actual situation
|
| 27 | MTBF | ≥50000 hours |
| 28 | Life Span | 100,000 Hours |
| 29 | Operating Temperature | Working : 35 - 90°C |
| 30 | Storage : 10 - 99°C |
| 31 | Environment Temperature | -30°C to 60°C; humidity Rh10% to 95% |
| 32 | Remote Control | Can realize remote control,For the possibility of potential failure logging, and send alarm signal to the operator (need to customize)
|
| 33 | Self-checking Technique | LED a single point of self-inspection, communications test, power test, temperature monitoring (need to customize)
|
| 34 | System Operating Platform | WindowsNT,Windows2000,WindowsXP,Windows7 |
| 35 | Power Supply | AC 85-264V |
| 36 | Protection | waterproof, dustproof, high temperatureproof,anti-corrosion, anti-burning,anti-static,shake proof,thuner-proof,the system with smoke alarm and temperature alarm function. (need to customize) |
PACKAGING&SHIPPING
1)Within 15-27 days after receiving deposit.
2)Wooden case, plywood case and flight case choosen by customers.
OUR SERVICE
1)We guarantee all our display, modules, spare parts for ONE years after consignment from factory.
2)We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3)After warranty, we also can offer you the parts for replacement at our bottom price.
4)After sales, if you have any problem about our product, you can inform us by e-mail, we will reply you at once when we get it and offer you a good solution to solve the problem.
