P6 Full Color RGB DIP 3in1 LED Display

Name: P6 Full Color RGB DIP 3in1 LED Display
Brand: ec-portal.com
SKU: 745976095
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 1200-1400/Square Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Square Meter
Pay Type:	T/T,Western Union,Paypal

Send Inquiry

Showroom Product Company Profile

Prod Model:	P6mm Outdoor LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	192mm*96mm
Cabinets Size:	768mm768mm/960mm960mm
Brightniess:	7000mcd-7500mcd
Driver Way:	1/8 Scan
Module Resolution:	32*16 Dots
Waterproof Level:	IP65
Best View Distance:	6m-60m
Control Card:	Linsn/Nowa/HD
Max Power:	20W
Module Weight:	0.4kg
Tube Chip Color:	Full Color
IP Rating:	IP65
Display Function:	Video Display
Average Power Consumption:	300W / m²
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,ISO9001
Pixel Pitch:	6mm
Pixel Configuration:	RGB 3in1
Pixel Density:	27777m2

Product Description

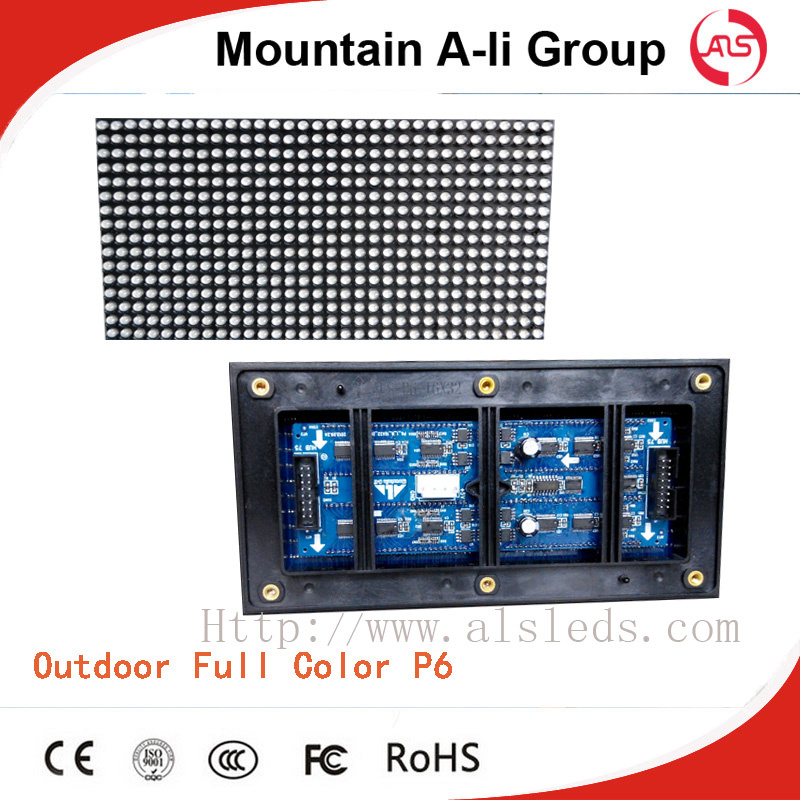

The specifications of modules

ItemsParameter

Product Model P6 Full Color Led Module

Module size192mm*96mm

Pixel pitch 6mm

Pixel density 27777dots/m2

Pixel configurationRGB 3 in 1

Module resolution32dots(W)*16dots(H)

Module maximum power consumption20W

Module Thickness2.7CM

Module Weight0.4kg

Driving methodConstant Current Driving

Scanning method1/8 scan

InterfaceHUB75B

Brightness ≥7000cd/m2

The specifications of cabinets

Cabinet size768mm x 768mm

Module quantity32pcs

Power supply5V/40A 5V/60A

Cabinet resolution 128*128dots

Optimal viewing distance5M~50M

Optimal viewing angle160°(W) 120°(H)

RHWorking temperature(Work :-20ºC~+50ºC)

System operating humility10%-95%

The specifications of power supplier

Operating VoltageAC220V±10%

Average power consumption350W/H

Maximum power consumption≤600W/

Electric current ≤20mA(single LED)

The specifications of control card

Control Panels Pentium4 or above

Operating system WIN98/2000/NT/XP

Control modelSynchronization with PC

The specifications of the main technical parameters

Driving deviceIC Constant Current Driving

Refresh rate≥600HZ

Grey scaleRGB Each 256, can display 16.7M colors)

MTBF≥9000hours

Power switchAutomatic Switch

Display Mode800*600/1024*768/1280*900

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

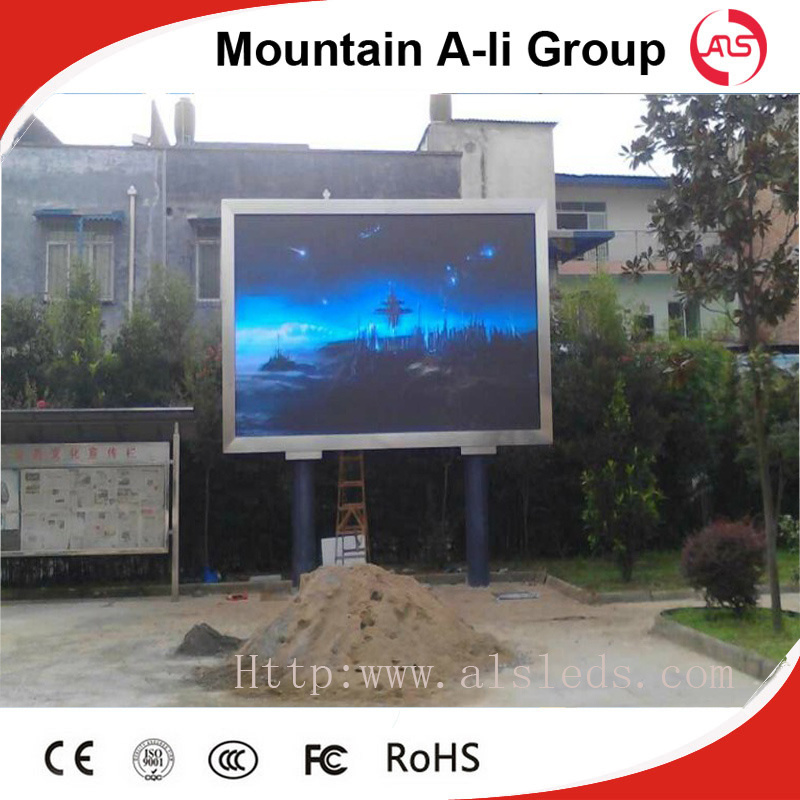

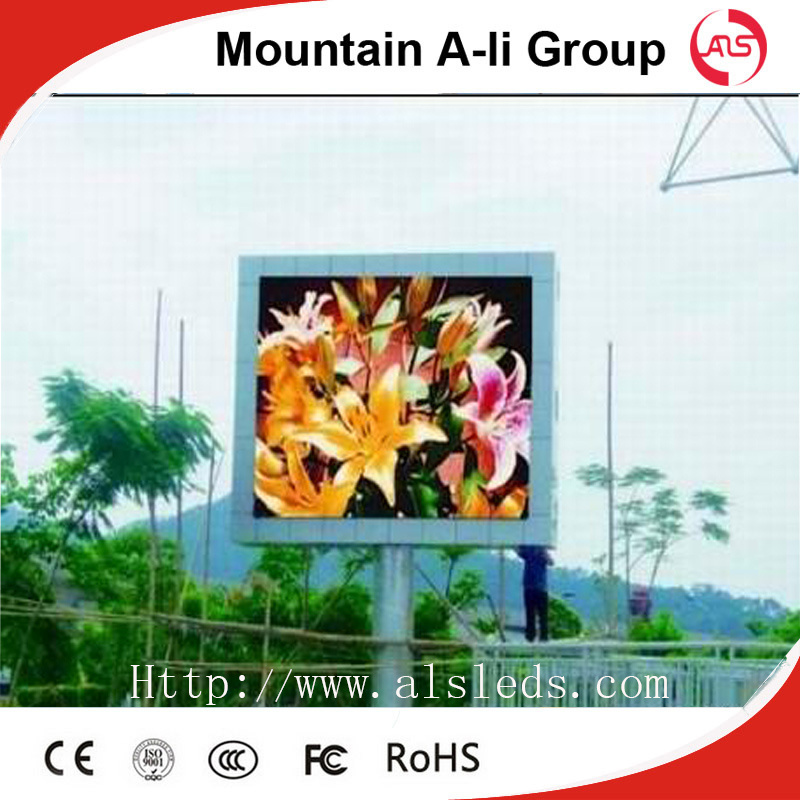

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
