| Prod Model: |
fox-p6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
More Than 2000CD/Sqm |
| Mtbf: |
10, 000hours |
| IP Grade: |
IP43 |
| Life Span: |
More Than 12years |
| Module Size: |
192*192mm |
| Working Voltage: |
AC220V/110V± 10% |
| Cabinet Dimension: |
1024mm*768mm*110mm |
| Viewing Angle Vertical/Horizontal: |
140 Degree |
| Module Dots: |
32*32 |
| Viewing Distance: |
6-80m |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
ETL |
| Pixel Configuration: |
1r1g1b, 1r, 1g, 1b |
| Pixel Density: |
27777dots/M2, 27, 777 Dots / M² |
Product Description
Detailed Product Description

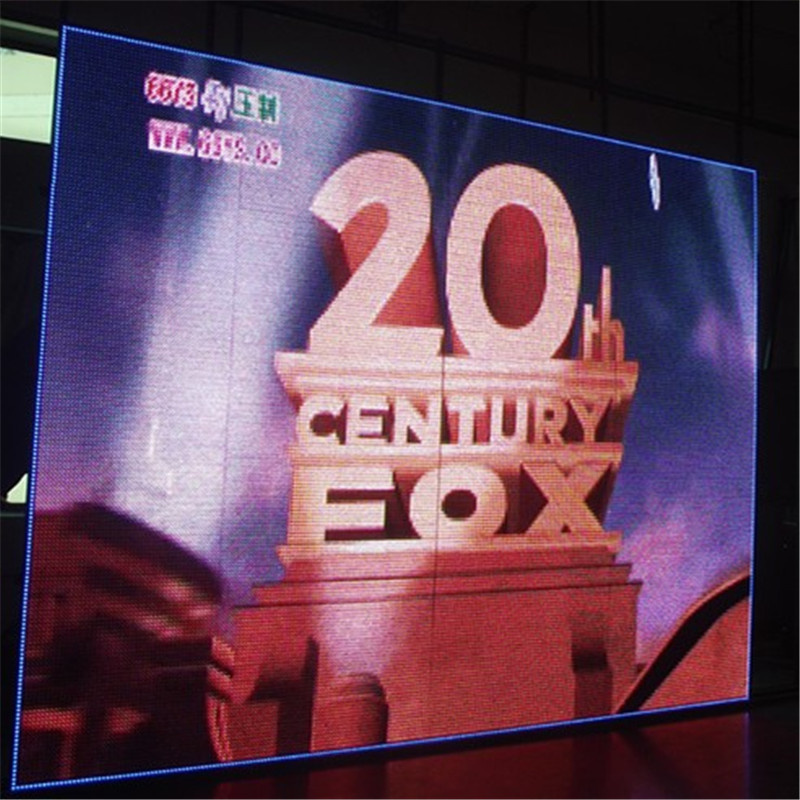

PH6mm 1R1G1B-3 IN 1 2200 Nits Indoor LED Display Modules For TV Shows, Exhibitions
Quick details:
1. Energy saving;
2. High definition;
3. Low heat productivity;
Description:
1)Available models: PH4mm, pH6mm, pH8mm, pH9.6mm, pH12mm
2)Light weight, only 12.5kg for a module size of 576mm X 576mm
3)Slim profile, 8cm thickness
4)Fast to install using new fast-rig locking system.
5)Excellent image quality, full pixel color and brightness calibration.
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years
6. Delivery time: 3-12working days
| Description | Technical parameter |
| Unit module | Module size | 192*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 32dots*H: 32dots |
| Cabinet | Dimension | 1024mm*768mm*110mm |
| Quantities of module | 24pcs |
| Power supply | 5pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing angle | 12-300m |
| Temperature | Storage: -35degree~+85degree |
| Working: -35degree~+85degree |
| Thickness | 11cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 500W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static scanning, also virtual |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 9, 000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Network calbe: 100m, Multi-model: 500m, Single-model fiber: 20km |
| Software | LED media player |
