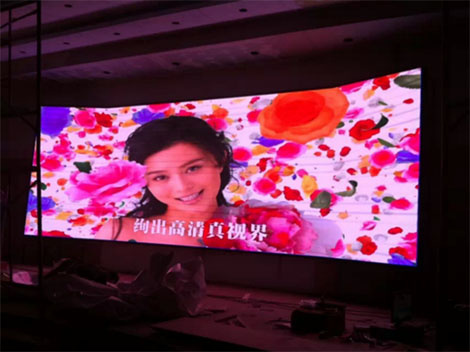

P6 Full Color LED Board/LED Display
| Price: |
US $ 518-530/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
384mm*192mm |
| Cabinet Size: |
768mm*768mm |
| Brightness: |
1300CD |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN2000 |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| IP Rating: |
31 |
Product Description
P6 Indoor Full Color Stage LED Display, Advertising Screens,LED Display BoardIndoor Rental LED Display,Indoor Fixed LED Display,LED Video Display,LED Wall,LED Curtain for stage rental events,exhibition,wedding,advertising,meeting room
Features:
1. Competitive prices, reliable quality 2,Super light and thin die-casting aluminum cabinet; 3.High refresh rate 4.Noiseless design; 5.Fine and smooth picture;6.Seamless connection between cabinet; 7,High brightness8.Fast installation and dismantlement. Specification
| Technical Prameters |
| PROJECT | P6 indoor full color LED display board |
| Pixel pitch | 6mm |
| Pixel density | 27777 Pixels/sqm |
| Module size(W*H) | 384 W(mm) | 192 H(mm) |
| Module pixels(W*H) | 64Pixels(W) | 32 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3528 |
| Cabinet size(W*H*D) | 768 W(mm) | 768 H(mm) |
| Cabinet resolution | 128Pixels(W) | 128 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1500cd/sqm. |
| Power consumption(one cabinet) | Max:1000W/sqm. Average:350W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 39 Kg/M 2 for Iron cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.3mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥1200Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |

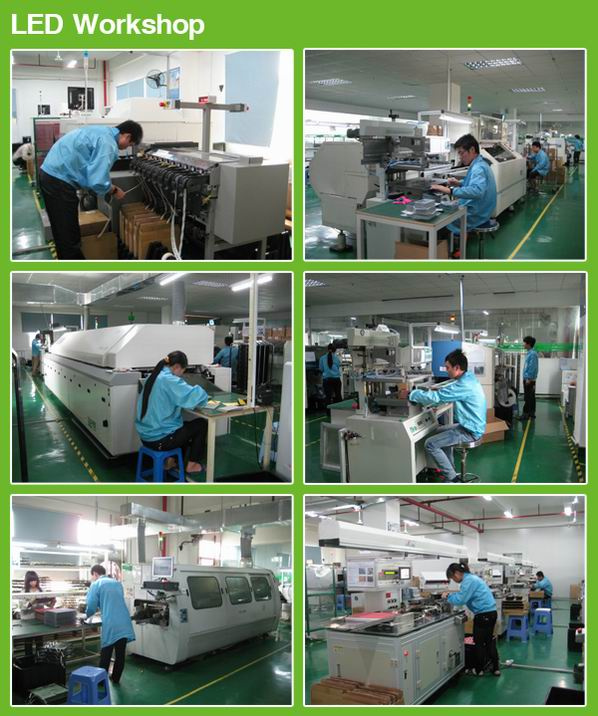

Quanzhou Jiacai Electronics Co., Ltd is a hi-tech company which is located in Fujian Quanzhou. Our factory is founded in 2006, coving an area of 175000 squar meters, with 35PCS producton lines for out door DIP modules, 6PCS production lines for indoor SMD products and more than 1600 skilled workers
Our RD team is composed by experienced experts, specialists and engineers, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients.
Our main products include indoor LED display, outdoor LED display, LED module, LED panel, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events. All our products have passed CE, FCC and RoHS certificates. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 1 years warranty
We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
