Prod Model: |
p6 DIP/ 3 in 1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
192mm*96mm |
Pixel Resolution: |
32dots(W)*16dots(H) |
Module Thickness: |
27mm |
Max Power Consumpion: |
20W |
Module Weight: |
0.4kg |
Brightness Of White Balance: |
7000CD/M2 |
Best Viewing Distance: |
5m~50m |
Control Mode: |
Synchronization with PC |
Warrenty: |
2 Years |
Lifespan: |
100,000 Hours |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Display Function: |
Video Display |
Average Power Consumption: |
350W / m² |
Scanning Mode: |
1/8 Scan |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
CCC |
Pixel Pitch: |
6mm |
Pixel Configuration: |
1 R,1g,1b(3 in 1) |
Pixel Density: |
27777pixels/Sqm |
Product Description

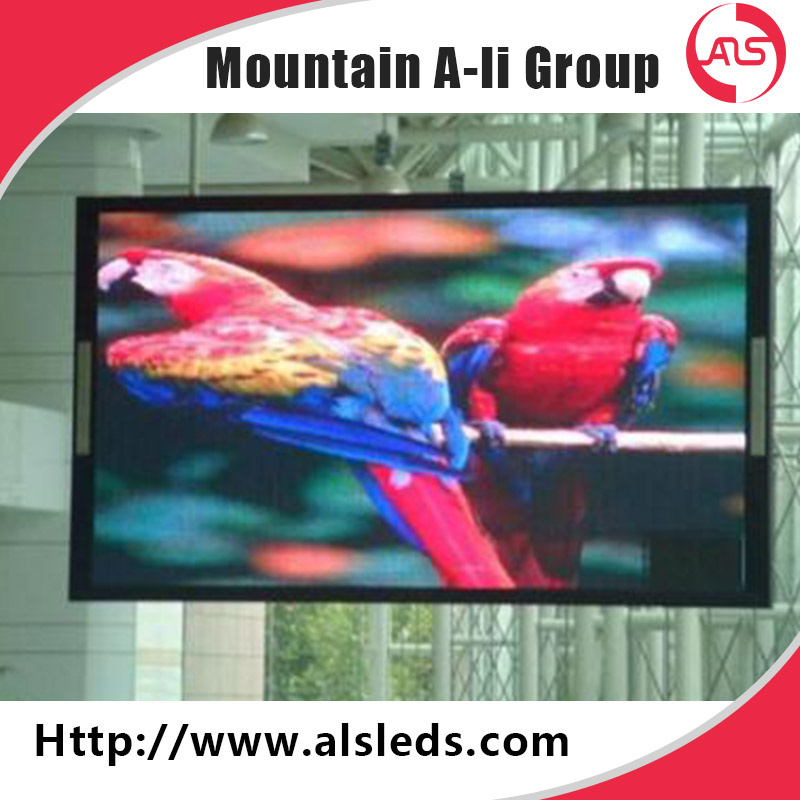

P6 DIP full Color LED Video Display for Outside
Technical Parameters:
p6 true color led video display outdoor DIP |
| Item | Parameter |
Unit Module | Model | P6 Full color led module |
Module Size | 192mm*96mm |
Pixel Pitch | 6mm |
Pixel Density | 27777pixels/m2 |
Pixel Configuration | 1R1G1B(3 in1) |
Module Resolution | 32pixels(w)*16Pixels(h) |
Max Power consumption | 20w |
Module Thickness | 2.7cm |
Module Weight | 0.4kg |
Driving Method | constant current driving |
Scan Method | 1/8scan |
Interface Way | hub75b |
Brightness | ≥7000cd/m2 |
|
|
|
Standard Cabinet Size Also cabinet size can be customized | Cabinet Size | 768mm*768mm |
Cabinet Composing | 32pcs |
Power Supply Mode | 5V/40A 5V/60A |
Cabinet Resolution | 128*128pixels |
Optimal Viewing Distance | 5m-50m |
Optimal Viewing Angle | 160°(W) 120°(H) |
Environment Temperature | Starage:-35°C - +85°C |
Work:-20°C - +50°C |
Relative Humidity | 10%-95% |
|
|
|
Power | Operating Voltage | AC220V±10% |
Average Power | 350W/H |
Max Power Consumption | ≤600W/m2 |
Current | ≤20mA(single led) |
|
|
|
Control System | Computer | Pentium4 or above P4 or above |
Operate System | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
|
|
|
Main technical parameter | Driving Device | IC constant current driving |
Refresh Rate | ≥600Hz |
Gray/Color | RGB each 256 grade, can display 16.7M color |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768/1280*900 |
Our features and advantages:
1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to makethe display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well
5.Price
No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!
6.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.
FAQ:
1. Are you manufacturer? If yes, in which city?
Yes, we are the professional manufacture of LED display, and we work on it more than 10 years. Our company in Shenzhen, Dongguang, China.
2. Can I visit your factory ?
We warmly welcome customers visit us. Before you come here, please kindly tell me your schedule, we can arrange for you. The nearest airport is Bao'an Shenzhen international airport.
3. Can you provide me your catalogue?
We specialize in producing and developing all kinds of led displays. As a reliable LED Display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price.
4.How about your quality warranty?
2 years quality warranty and lifetime technology support and maintenance from the second year. If you improperly operate or something wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.
Remarks
1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
5.Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you Email or call, and offer you a good solution for your problem.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
