| Prod Model: |
led display P6-8S |
| Product Name: |
P6-8s Indoor LED Display |
| Driver IC: |
Mbi5124 |
| Bightness CD/Sqm: |
2200 |
| Grey Scale: |
65536 Degree |
| Life Time: |
More 100,000 Hours (80%) |
| Mtbf: |
More 50,000 Hours |
| Operating Temperature: |
-30~-60t |
| Humidity: |
10%-95% |
| Color Temperature: |
6500k-9500k |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Configuration: |
1r1g1b/SMD2121 Black Lamp |
| Pixel Density: |
27777dots/M2 |
| System Operating Platform: |
Windows XP / Windows 7 / Windows 8 /8.1 / Windows |
Product Description
P6-8S Cool Advertising Display Detailed Indoor LED Display
Product descripition:
| NO.: | Product name | P6 high definition rental led display |
| 1 | Pixel Pitch(mm) | 6mm |
| 2 | Pixel configuration | 1R1G1B/SMD2121 Black lamp |
| 3 | Pixel density | 43264dots/m2 |
| 4 | Brightness | 2200cd/m2 |
| 5 | Module size(W*H) | 192*192mm |
| 6 | Module Resolution (W*H) | 32 dots x 32dots |
| 7 | Module weight | 600g |
| 8 | Cabinet size (W*H) | (500mm×500mm)or(500mmx1000mm) |
| 9 | Drive IC | MBI5124 |
| 10 | Drive mode | 1/13 scan |
| 11 | Viewing Angle(V/H) | 140 ºC |
| 12 | Grey Scale | 65536 degree |
| 13 | Life time | >100,000 Hours (50%) |
| 14 | MTBF | >50,000 Hours |
| 15 | Operating Voltage | AC110V/220V±10% |
| 17 | Screen Power Consumption | Max: 900w/m2; Average:300w/m2 |
| 18 | Input Power Frequency | 50/60Hz |
| 19 | Operating temperature | -30--60ºC |
| 20 | Humidity | 10%-95% |
| 21 | Refresh Rate | ≥1920HZ |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Color Temperature | 6500K-9500K |
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable |
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |

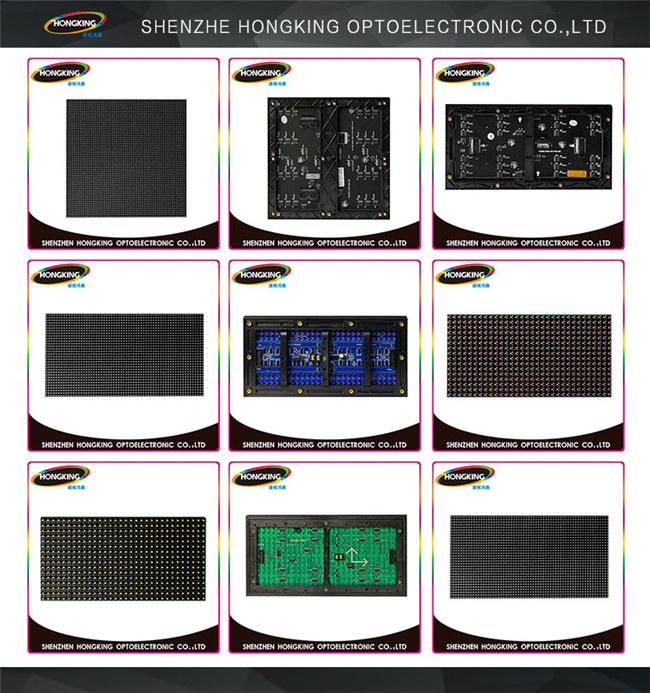

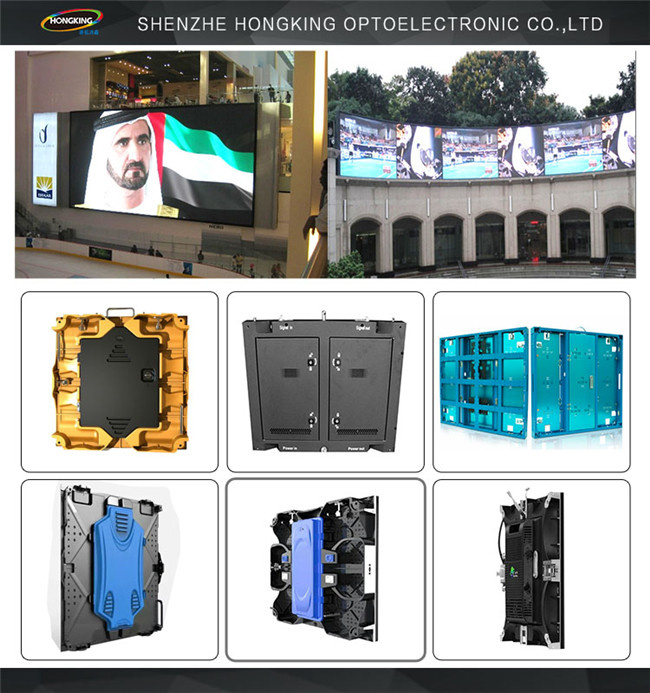

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
SHENZHEN HONGKINGLED OPTOELECTRONIC Co., Ltd, is one manufactuiers in SHENZHEN China, we product all kinds of full color indoor outdoor LED display, single color LED display, Di-color LED display,
SHENZHEN HONGKINGLED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 1000 worldwide installation projects In the pursuit of excellence, we succeeded in breaking numerous industry records. HONGKINGLED is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
JOIN HONGKING, WIN THE WORLD.
