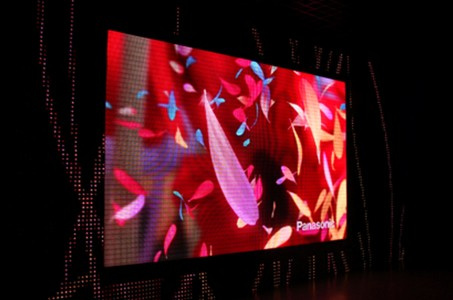

P5mm SMD LED Display

Prod Model:	P5
Cost:	High Cost-Effective
Factory:	OEM, ODM
Cabinet Material:	Light-Weighted Cabinets
Warranty:	2 Years
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	5mm
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Shopping Mall, Concerts, Shows and Event, Airport
IP Rating:	IP43
Certification:	CCC
Pixel Density:	40000 Dots/Sqm
System Operating Platform:	Win XP, Win 7, Win 8, Win 8.1, Win10

Product Description

Hot Sale P3 P4 P5 P6, P7.62, P10 Slim LED Sign (Rental/Fixed)

1) Relatively low cost (factory)
2) Light weighted Cabinets, saving shipping cost, esp by air.
3 High definition of displaying image.
4) Easy installment and low maintenance cost
5) Good heat emission capability.
6).Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.

Contact Us Now to know more: mobile: +86 13538127671


Item No.	P3	P4	P5	P6
Classification	Full color	Full color	Full color	Full color
Pixel pitch	3mm	4mm	5mm	6mm
Size of module (mm*mm)	96*96/192*96	128*128	160*160	192*96
Pixel density	111111 dots/m2	62500 dots/m2	40000 dots/m2	27777 dots/m2
Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED encapsulation	SMD2020	SMD2020	SMD3528	SMD3528
Resolution of module	32*32/64*32	32*32	32*32	32*16
Best viewing distance	2m	2m	3m	4m
Best viewing angle (Horizontal/Vertical)	140°/120°	140°/120°	140°/120°	140°/120°
Max power consumption	1300 W/m2	1300 W/m2	1200W/m2	1200W/m2
AVG power consumption	250~550 W/m2	250~550 W/m2	300~650W/m2	300~650W/m2
Size of standard cabinet(mm)	576*576	512*512	640*640	768*768
Resolution of standard cabinet	192*192	128*128	128*128	128*128
Weight of standard cabinet	15kg	12kg	18kg	30kg
Driving method	1/16 Scan	1/16 Scan	1/16 Scan	1/8 Scan
Frame frequency	60Hz/s	60Hz/s	60Hz/s	60Hz/s
Refresh rate	≥1000HZ	≥1000HZ	≥1000HZ	≥1000HZ
White balance brightness	≥1000cd/m2	≥1300cd/m2	≥1500cd/m2	≥1800cd/m2
Working /Storage environment temperature	Working:-20°C~50°C   Storage:-40°C~60°C
Operating ambient humidity	Working:10%--95% HR   Storage:10%--95% HR
IP grade	IP20~IP54
Working voltage	AC 220±10% or 110±10%
Grey scale	14 bits per color
Brightness adjustment	256 levels of each color (RGB) can be adjusted manually
Signal input	RF, S-Video, RGB, RGBHV, YUV, YC.Ect
Control system	Sending Card+ DVI Graphic card+ Receiving card+ Video Processor ( optional)
MTBF	≥5000 hours
Life span	≥100000 hours
Malfunction dot rate	Less than0.0001
Transmission distance	LAN cable less than100m;Optic fiber transmission :MMF less than 500m, SMF less than 20km

Application Areas:

Indoor advertising, digital billboards, advertising in big companies
1. Sport stadium, fields, and playgrounds.
2. Airports, bus stations and railway passenger terminals.
3. Facades of shopping malls, department stores, banks and car dealerships.
4. Architecture and social projects, information systems in cities.
5. Show-business, concerts, festivals, motor shows and other public events.

Why Chengxinguang(CXG) LED Display

1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.

2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.

3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
