Shenzhen Teeho Optoelectronic Co., Ltd. >> P5 Indoor Outdoor LED Display

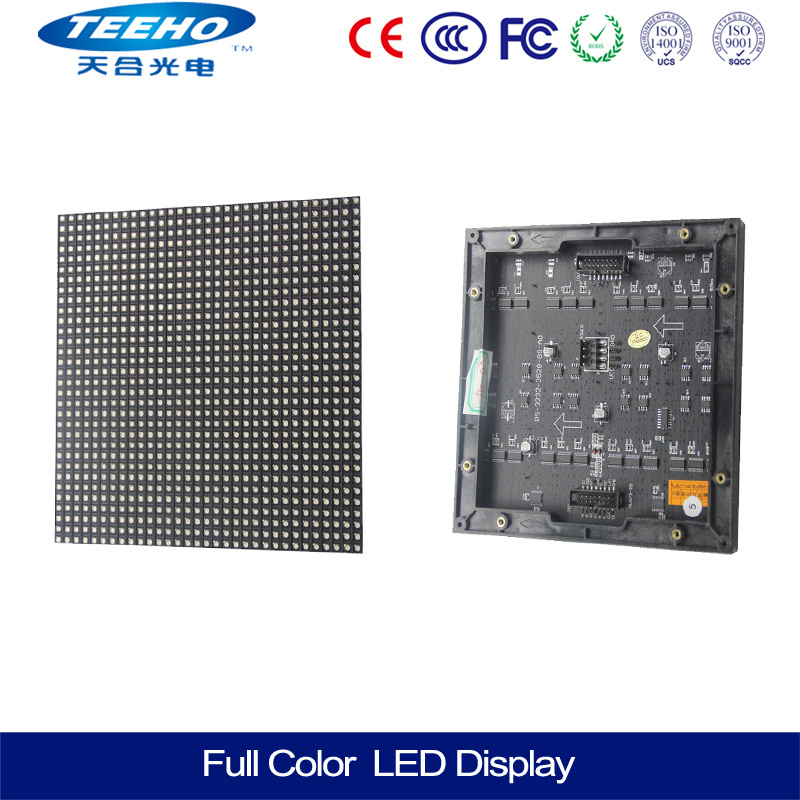

P5 Indoor Outdoor LED Display

P5 Indoor Outdoor LED Display
Price: US $ 8/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: PQZ-5-8S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixel Configuration: SMD 3528 Black
Module Size: 160mm X 160mm
Cabinet Size: 640mm X 640mm X 130mm
Module Resolution: 32X32
Cabinet Resolution: 128X128
Brightness: 2200 CD/Sq.M
Grey Processing: 14 Bit
Contrast: 2000:1
Refresh Rate: >800 Hz
Working Voltage: AC 85-265V
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 5mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 40,000 dots / m²
Scanning Mode: 1/8 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: FCC

Product Description

High Definition Indoor P5 LED Display

Applications:

            Shopping Malls
             Vocal Concerts
             Huge Office
             Theater and Arts
             Exhibition and Shows
Specitication:P5 LED Panel Specification
NO:Product NameSpecification
1Pixel Pitch5mm
2Pixel Configuration1R1G1B/SMD3528
3Density40,000 pixel/m2
4Moduel Size(L×W)mm160mm×160mm
5Cabinet Size(L×W×H)mm640mm×640mm×130mm
6Module Resolution32×32
7Cabinet Resolution128×128
8Driving Method  1/8 Scan
9Driving IC MBI5024
10Brightness2200cd/
11Contrast2000:1
12Brightness AdjustmentAuto and Manual
13Power ConsumptionMax Power:<1000W
14Average power: <400W
15Cabinet Weight<32kg/m2
16Color Temperature3200K-9300K
17Horizontal Viewing Angle120º
18Vertical Viewing Angle120º
19Signal Processing10 or 14bit
20Grey Processing1024×1024×1024
16834×16834×16834
21Control DistanceCable100m,Multimode500m,Single mode
2km
22Frame Frequency65 Hz
23Refresh Rate>800Hz
24Control ModeSynchronous/Asynchronous
25The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
26Users can choose the recommended curve or adjust it based on actual situation
27MTBF>50000 hours
28Life Span100,000 Hours
29Operating TemperatureWorking : -20 - 65 ºC
30Storage : -40 - 85 ºC
31Environment Temperature-30ºC to 60ºC; humidity Rh10% to 95%
32Remote ControlCan realize remote control and send alarm signal to operators in case of failure logging (Be customized)
33Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
34Operating System  PlatformWindowsNT,Windows2000,WindowsXP,Windows7
35Power SupplyAC 85-264V
36Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

You may concern

6 years experience of production,10000 sqm per month capacity

Professional purchasing suggestion,one-stop solution site

Qualified product within less than 5% customer complains.

Competitive price lead to high cost performance
Shenzhen Teeho Optoelectronics Co. Ltd(short for Teeho Optoelectronics), found in 2009, is a high-tech private enterprise specialized in LED Screens manufacturing with a ¥ 11 million of registered capital and over 300 employees in Shenzhen. It has been dedicating itself to offering one-stop LED display solutions to its customers including R&D, prototyping, assembly, sales and technology support across the globe.

Teeho industrial park is located in Bao'an, Shenzhen, the most populous LED industrial area, with a cover of more than 10, 000 m2 and over 300 million of amount of sales per year, fully equipped with modern automatic assembly lines with the manufacturing capabilities of 8000 m2 per month

Teeho Optoelectronics spans a wide range of products covering: Indoor Full-Color LED Displays, Out Full-Color LED Dislays, LED Television Displays etc, applied to governmental institutions, corporate image projects, business ads, media activities, cultural and entertainmental places, stadiums, stations and airports etc.

Teeho Optoelectronics is focusing all efforts to technology-leading strategies of production by relying on the three-tier talent strategy, gathering high profile professional talents, which makes a foundation of new R&D of products and specially custom-made products. The R&D teams of Teeho electronics have been dedicating themselves to one-stop solutions, and have obtained tens of certifications of products and innovative patents. Moreover, they have outstandingly achieved in high-end indoor full color display solutions.

Teeho electronics has been promoting itself by advanced technology and scientific managements and has the following certifications: ISO9001: 2008 Quality System Certification, ISO1400: 2004 Environment System Certification, CCC, CE, FCC, RoHS etc. With high quality and perfect service, Teeho Optoelectronics has built lots of sales and service networks and its high-quality products has been exported into more than 80 countries and areas such as the United States, India, New Zealand. Japan, Thailand, Taiwan and Hongkong.

Teeho Optoelectronics Co., Ltd has been marching on under core values of Integrity, Pragmatic, Harmony, Creativity to guide our staff members and to devote itself to leading status in this industry, to ensure that our client will be fulfilled with the high-quality products and best service. With the horizontal developments in industrial chain and a variety of for-profit models, we vigorously promote the construction of brand culture, strive to become a world-class brand researched and developed independently, to become the most professional LED screens and one-stop solutions supplier, which makes a contribution to competing of national brands in globe markets.
