| Prod Model: |
GJdisplay-P5-RGB |
| Pixel: |
5mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP54 |
| Certification: |
FCC |
| Pixel Pitch: |
P5mm |
| Pixel Density: |
40000pixel/M² |
| System Operating Platform: |
Win 7, Win8, Win10, Win XP |
Product Description
Our company provides onsite product installation debugging and maintenance service for our LED display.
Product adbantages:
1.Black lamp body and SMT led encapsulation technology confirm the high brightness and wide view ang angle.
2.Cabinet made with aluminum material light weight and good heat dissipation.
3.With fast locks and aviation plugs,easy to combine and quick to install and dismantle.
4.Seamless splicing,high defintion and good performance.
5.Packed with flight cases,keep good packing and safe condition,convenient to move and transport.
6.All LED display product,vieo wall with high gray scale and hign contrast ratio,good uniformity,seamless spliced,perfect performance.
7.To use the current-sharing backup power supply,the LED display never is black.
8.Modular desigh,easier to maintain,installation,power supply and signal cable connected is more convenient.
Full color
| Module name | Module size | Pixels Density |
| SMD INDOOR |
| P1.8mm | 230mm x 115mm | 128x94 pixels |
| P2mm | 240mm x 120mm | 120x60 pixels |
| P3mm | 92mm x 96mm | 64x32 pixels |
| P4mm | 256mm x 128mm | 64x32 pixels |
| P5mm | 160mm x 160mm | 32x32 pixels |
| P6mm | 244mm x 122mm | 32x32 pixels |
| P7.62mm | 244mm x 122mm | 32×16 pixels |
| P10mm | 320mm x 160mm | 32×16 pixels |
| SMD OUTDOOR | | |
| P4mm | 256mm x 128mm | 64x32 pixels |
| P5mm | 160mm x 160mm | 32x32 pixels |
| P6mm | 192mm x 192mm | 32x32 pixels |
| P8mm | 256mm x 128mm | 32x16 pixels |
| P10mm | 320mm x 160mm | 32x16 pixels |
| DIP OUTDOOR | | |
| P10mm | 160mm x 160mm | 6x16 pixels |
| P10mm | 320mm x 160mm | 32x16 pixels |
| P10mm | 320mm x 320mm | 32x16 pixels |
| P12mm | 192mm x 192mm | 16x16 pixels |
| P16mm | 256mm x 256mm | 16x16 pixels |
| P16mm | 256mm x 128mm | 16x8 pixels |
| P20mm | 320mm x 160mm | 16x8 pixels |
| P25mm | 200mm x 200mm | 8x8 pixels |
MODULE PARAMETERS
| Item | Parameter |
| Place Of Origin | Guangdong,China (Mainland) |
| Brand Name | GJ LED |
| Moudle Number | P5mm Black SMD3528 |
| Display | Video |
| Usage | Indoor |
| Pixel Pitch | 5mm |
| Pixel Density | 40000Dots/m2 |
| Brightness | ≥1500cd/m2 |
| Refresh Rate | ≥1500HZ |
| Grey Scale | 14 Bit |
| Features | Alumium Die-Casting |
| Scan Method | 16/Scan |
| View Angle | H:140° V:140° |
| Module Size | 160mm*160mm |
| Cabinet Size | 800mm*800mm |
| IP Grage | IP54 |
| Module Resolution | 32*32 |
| LED Lamp | SMD3528(Nationstar) |
| Relative Humidity | 10%-95% |
| Environment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Average power consumption | 390w/m2 |
| Max powerConsumption | 980w/m |
| IC | MBI 5141 |
| Certificates | CE,ROHS,CCC,ISO9001 |
| Application | Bar,events led display |
PRODUCT FEATURES
1.SMD LED encapsulation confirm wide view angle, above 140° for horizontal and vertical, without no strobe and color casting from different angle,good vision effect.
2.Black body LEDs ensure high contrast ratio and high resolution.
3. Cabinet is made with Die-casting Aluminum material for strong and durable.
4. Light weight and super slim thickness, easy to move and be portable.
5. Cabinet with fast locks and aviation plugs for connecting easily with each other, suit for fixed or hung install,easy to install and dismantle.
6. Exquisite and tasteful appearance due to structural wire layout.
7. Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system and play a variety of information like video,word, flash, music, clock, graph etc.
8. Packed with flight case, convenient to be collected and transported better for rental use
APPLICATION
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools,monitoring, restaurants,entertainment, enterprises etc
IF YOU NEED THE FULL CABINET AND MODULES TOGETHER, PLEASE SELECT OUR CABINET PRODUCT AND MODULE TOGETHER .
A...THE EASY WALL FIXING WITH MAGNET
B...EASY CABINET ON THE WALL

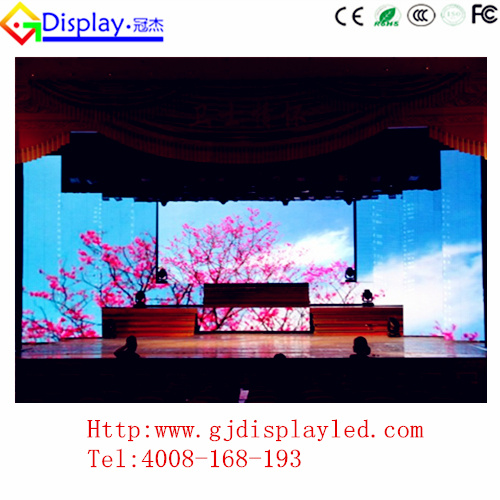

C... RENTAL FOR STAGE OR HOTEL/ HALL
PACKAGE
GOODS DELIVERIED VIA SEA / AIR/ DOOR TO DOOR EXPRESS
Payment terms:
T/T, L/C, western union, moneygram, ect.
30% T/T in deposit, balance 70% T/T before shipment.
Lead time: Below 50sqm, it will take about 2-3 weeks after receiving deposit.
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd like to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
