| Prod Model: |
LED015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN2000 |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
UL |
| Pixel Pitch: |
4 |
| Pixel Density: |
62500dots |
Product Description
Programmable P4 indoor full color led screen panel
1.Products Feature:
1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from
TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect.
| Item | Specification Parameter |
| Pixel Pitch | 4.0mm |
| Material | Cast aluminum |
| Color | Silver gray |
| Cabinet Size | 640*640 mm |
| Resolution rate | 160*160Dots |
| Module quantity | 2*2 |
| Density | 62500dots/ |
| White balance luminance | ≥1000CD/ |
| Color temperature | 6500K--8000K |
| view angel | H:120;V:120 |
| Protection grade | Before/After:IP30/IP30 |
| Non-Flatness | <0.5mm |
| Module interval | <0.5mm |
| Cabinet Weight | 11.5kg/Cabinet |
| Gross Weight(kg) | 89kg(Estimated data) |
| Outer Package Size | 780*780*940mm(Estimated data) |
| Maximal power/ | 500W/ |
| Average power/ | 200W/ |
| Frame frequency | ≥60Hz |
| Refresh frequency | 1920Hz |
| Gray grade | 14bit |
| Luminance adjusted | 256 grade by auto-optic/color &8 grade by hand |
| Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| Control system | Novastar / Linsn / |
| system supports | Windows XP,WIN 7, |
| MTBF | >5000h |
| Life-span | >100000h |
Speckles rate
| <0.0002 |

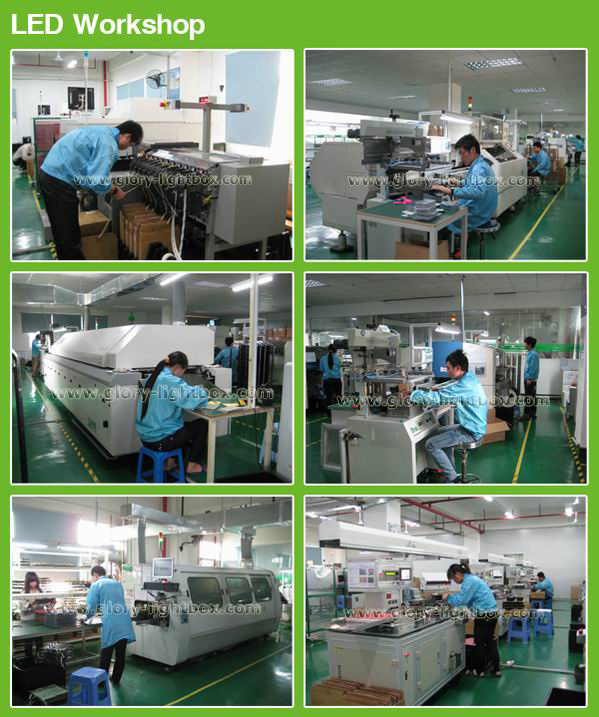

Factory showing:
Other options:
Guangzhou Glory Light Box Manufacturing Co., Ltd. Located in Guangzhou, China.
We are the factory and offer various advertising light boxes, light box display, LED signs etc. The aim of us is to continuously develop new and more effective advertising products. We have many regular lightbox products. But as we know, there are ever-changing articles in the advertising area. So our company also make the customized item according to your request. Welcome to let me know your model, size, material, structures, weight etc...
Our main product: Advertising player, LED screen display, Scrolling light box, LED crystal light box, LED slim light box, acrylic light box, LED display screen, solar light box and so on.
Our products are exported to Europe, America, Australia, Middle East, Asia...We have cooperated with some famous brand, Heineken, Tiger, Vodafone, Alfred dunhill. We are looking forward to the cooperation with you! !
Why choose light boxes? They widely used in the shopping malls, chain stores, , railway, bus-stop, airport, highway, parking lot, hotel, entertainment, the place where people here and there. Your products will be knowed quickly. And they are easy to application and maintain. Energy-saved and Environmental protection. It is the best choice to promote your products and bring your generous profits.
