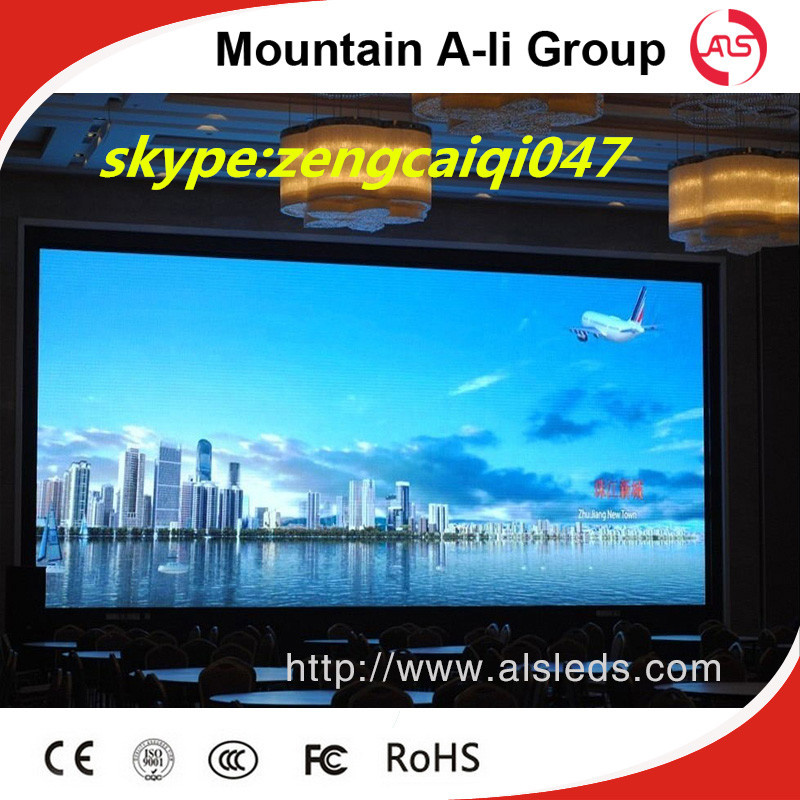

P4 Indoor Pretty Full Color LED Screen Display

Prod Model:	p4 Full Color Screen
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	P4 Indoor LED Display
Module Size:	256X128mm
Cabinet Size:	512X512mm
Optimal Viewing Distance:	4-20m
Control Mode:	Synchronization with PC
Cabinet Pixel:	128X128dots
Export Markets:	South America, Southeast Asia, Africa, Oceania, Mi
Brightness:	>1500CD/M2
Working Voltage:	220VAC
Optimal Viewing Angle:	160°(W) 120°(H)
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	4mm
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/16 Scan
System Operating Platform:	WIN2000
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP43
Certification:	Ios2000,FCC
Pixel Density:	62500dots/M2

Product Description

Product Description


Mountain A-Li Group Electronic Company
Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.



Product  features:


1.Energy saving design, good cooling system, high definition,

 2.Cost-effective, outstanding reliability, complete function,

 3.Are favorite by new and old customers

 4.Ultra-high refresh rate, can support video shooting,

 5.Clear picture quality assurance

 6.Quick and easy assembly, removing System, save loading time


Application

Widely used in a variety of needs large hall,sports arena,banking,telecommunications,government agencies,terminal,pier,railway stations,the stock market and other trading market,medical systens,electric power,galleries and other publicity,advertising,information dissemination,the guide places .

 Market:

North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe.


Parameters

The specifications of modules
Items	Parameter
Product Model	P4 Indoor Full Color LED Module
Module size	256mm*128mm
Pixel pitch	4mm
Pixel density	62500dots/m2
Pixel configuration	1R1G1B
Module resolution	64dots(W)*32dots(H)
Module maximum power consumption	18W
Module Thickness	13.07mm()26,63()
Module Weight	0.18kg
Driving method	Constant Current Driving
Scanning method	1/16scan
Interface	HUB75-A
Brightness	≥1500cd/m2
The specifications of cabinets
Cabinet size	512mm*512mm
Module quantity	16pcs
Power supply	5V/40A 5V/60A
Cabinet resolution	128*128dots
Optimal viewing distance	4M~20M
Optimal viewing angle	160°(W) 120°(H)
RH Working temperature	(Work :-20°C~+60°C)
System operating humility	10%-95%
The specifications of power supplier
Operating Voltage	AC220V±10%
Average power consumption	85W/H
Maximum power consumption	≤160W/H
Electric current	≤20mA(single LED)
The specifications of control card
Control Panels	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization with PC
The specifications of the main technical parameters
Driving device	Constant Current Driving
Refresh rate	≥400HZ
Grey scale	RGB Each 256, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic Switch
Display Mode	800*600/1024*768

Our services:


1. Your inquiry about our products or the price will be replied within 24 hours!

2. We provide 2 years for warranty and lifelong maintaining, you will  appreciate our warm after-sale service.

3. We will delivery goods as you demand, you can choose the cheaper more convenient way!

4. Well-trained and experienced staffs to answer all your enquires in fluent english.


Why choose us?


1. Advanced machinery, well trained workers.


2. More than10 years experience in LED lighting industry.


3. Unique designed, good quality, competitive price.


4. Full range of indoor and outdoor LED lighting solution.


5. If you want to know the further details are required. I will attempt to provide 6.product matches with complete details for your reference



Remarks

1.Payment term:
    30% T/T in advance and balance before delivery.

2.Delivery time:
    Within 15 working days after 30% advance payment.

3.Free training:
    You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.

4.Installation:

    We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
