| Prod Model: |
P4 High resolution indoor led display |
| Certification: |
RoHS |
Product Description
Features:
1. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless installation.
2. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
3. Using E-energy universal voltage power supply, stable performance
4. Receiving card+HUB no flat cable. Stable performance, more reliable connections.
5. No tools to assemble and dismantle, less worker and saves the cost.
6. It suit for hanging-up, each hanging beam can bearing 10-15pcs cabinets.

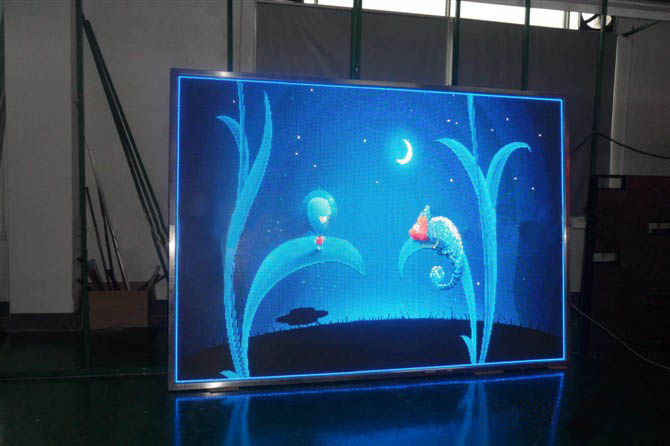

Photos:
Item
Cabinet Specification
Material
Cast aluminum
Color
Silver gray
Size
480*480mm
Resolution rate
120*120
Module quantity
2*2
Density
62500dots/m2
White balance luminance
≥ 1000CD/m2
Color temperature
6500K__8000K
Horizontal view angel
120
Vertical view angel
120
Protection grade
IP43
Non-Flatness
< 1mm
Module interval
< 1mm
Weight
8.5kg/cabinet
Maximal power/m2
600W/m2
Frame frequency
60Hz
Refresh frequency
800-2000Hz
Gray grade
13bit
Luminance adjusted
256 grade by auto-optic/color & 8 grade by hand
Input signal
RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc
Control system
PCTV non-linear editing card + DVI display card + main
controller card + optic fiber transmisson(Optional)
MTBF
> 5000h
Life-span
> 100000h
Speckles rate
< 0.0002
Our company supplies different kinds of products. High quality and favorable price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
