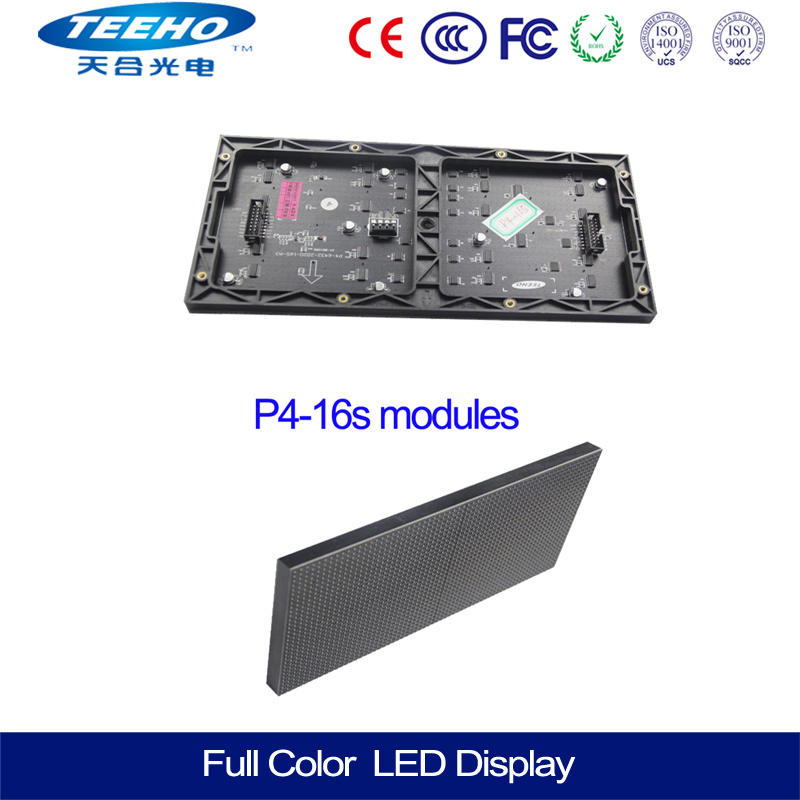

P4 Full Color Indoor LED Display
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,FCA |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
PAI-4-16S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
256mm X 128mm |
Cabinet Size: |
768mm X 768mm X 130mm |
Module Resolution: |
64X32 |
Cabinet Resolution: |
128X128 |
Brightness: |
1300 CD/Sq.M |
Grey Processing: |
14 Bit |
Contrast: |
2000:1 |
Refresh Rate: |
>3200 Hz |
Working Voltage: |
AC 85-265V |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
4mm |
Pixel Configuration: |
1R,1G,1B |
Scanning Mode: |
1/16 Scan |
System Operating Platform: |
WIN XP |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
IP Rating: |
IP43 |
Certification: |
ETL |
Pixel Density: |
62500 Dots/M&Sup2 |
Product Description
TEEHO OPTOELECTRIC
P4 Full Color Indoor LED Display
Application
Stage & Rental
Stadium Project
Municipal Project
Advertising & Media
Meeting & Exhibition
Commercial Property
Broadcast & TV Project
| Product Specification |
1 | Pixel Pitch | 4mm |
2 | Pixel Configuration | 1R1G1B/SMD2121 Black |
3 | Density | 62,500 pixel/m2 |
4 | Module Size(L×W)mm | 256mm×128mm |
5 | Cabinet Size(L×W×H)mm | 512mm×512mm×130mm |
6 | Module Resolution | 64×32 |
7 | Cabinet Resolution | 128×128 |
8 | Driving Method | 1/16 Scan |
9 | Driving IC | MBI 5124 |
10 | Brightness | 1300CD/m2 |
11 | Contrast | 2000:1 |
12 | Brightness Adjustment | Auto and Manual |
13 | Power Consumption | Max Power:<1000W |
Average power: <400W |
14 | Cabinet Weight | <32kg/m2 |
15 | Color Temperature | 3200K-9300K |
16 | Horizontal Viewing Angle | 120º |
17 | Vertical Viewing Angle | 120º |
18 | Grey Processing | 10 or 14bit |
19 | Control Distance | Cable100m,Multimode500m,Single mode 2km |
20 | Frame Frequency | 65 Hz |
21 | Refresh Rate | >3200Hz |
22 | Working Voltage | AC85-265V |
23 | Control Mode | Synchronous/Asynchronous |
24 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve |
Users can choose the recommended curve or adjust it based on actual situation |
25 | MTBF(Mean Time Between Failures) | >50000 hours |
26 | Life Span | 100,000 Hours |
27 | Operating Temperature | Working : -20 - 65 ºC |
Storage : -40 - 85 ºC |
28 | Environment Temperature | -30ºC to 60ºC; humidity Rh10% to 95% |
29 | Remote Control | Can realize remote control and send alarm signal to operators in case of failure logging (Be customized) |
30 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (customized) |
31 | Operating System Platform | Windows NT,Windows2000,Windows XP,Windows7 |
32 | Protection | Waterproof, dustproof, high temperature prevention, anticorrosion, smoulderproof, anti-static, shockproof, lightning proof, smoke alarm and temperature alarm. (customized) |
33 | Descriptions | 1.This product is wide applied to advertising media, government projects 2.Protection Level:IP43 3.Designs of cabinet sizes are based on installation sites/screen sizes 4.The parameters above are actual tests. |
34 | Warranty | 24 months |
