| Prod Model: |
P4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
304*152mm |
| Product: |

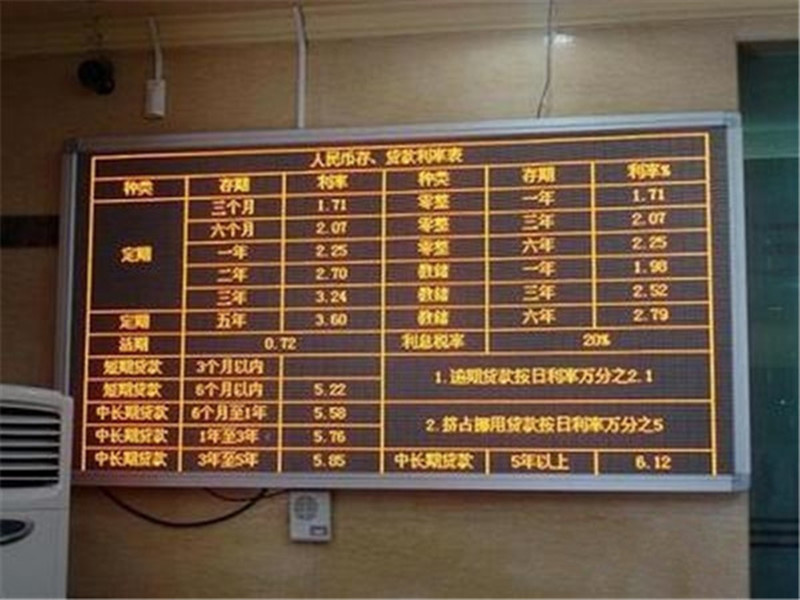

P4.75 DOT Matrix Single Color LED Display |
| Brightness: |
1200-2000CD/M2 |
| Driving IC: |
Mbi5124 |
| DOT Consumption: |
64*32 |
| Life Span: |
100,000hours |
| Viewing Distance: |
4m-100m |
| Viewing Angle: |
120degree |
| Power Consumption: |
350W/M2 |
| IP Grade: |
IP43 Front, IP43 Back |
| Tube Chip Color: |
Single Color |
| Display Function: |
Text Display |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
4.75mm |
| Pixel Configuration: |
1r |
| Pixel Density: |
44321dots/M2 |
Product Description
Application and Market
1. Application
Dual Color LED Indoor led dot matrix Display widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises, highway etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Payment terms:
| Payment terms: | 35% deposit before production, 65% balance before shipping
-T/T:
-Paypal
-Western Union
-Escrow |
| Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool
-Flight case;
-Anti-shaking wooden case |
| Shipping: | LED module: 3 to 5 working days upon receiving deposit payment
LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: | -Lifetime with professional engineer support for free.
-Within 1 year, supply spare parts for free if the machine has quality
problem |
Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and our current models4. Protection of your sales area, ideas of design and all your private information
Specification:
| Description | Technical parameter |
| Unit module | Module size | 256*128mm |
| Pixel pitch | 4mm |
| Pixel density | 62,500dots/m2 |
| Pixel configuration | 1R1G |
| Led specification | Φ 3ellipse |
| Pixel resolution | W: 16dots*H: 16dots |
| Cabinet | Dimension | 768mm*768mm*100mm |
| Quantities of module | 18pcs |
| Power supply | 2-6pcs |
| Thermal discharge | Fan |
| Total weight | 450kg |
| Best viewing angle | 4-100m |
| Temperature | Storage: -35degree~+85degree |
| Working: -20degree~+80degree |
| Thickness | can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 600W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/16scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 3500cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+dual color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of inter pixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Software | LED media player |
RFQ:
Q:What is your hot sale product?
A:P10 full color is best selling for Outdoor; P6 full color is best selling for indoor.
Q:What different from 1/4 scaning with 1/8 scaning?
A:1/4 scaning is better than 1/8, the screen will be high definition,high brightness.
Q:What different from LCD with LED?
A:1.LED is more energy save than LCD , have a high definition .
2.LED have a big viewing angle, it can up to160 degree.
3.LED can working well in a strong shine day.
Q:How to ensure the good quality of LED display?
A:Optimized structure can improve the efficency of installing screen to create value;Aging can improve the quality, ensure reliability.
Q:The advantage of LED SMD
A:1.High resolution ;2.Big viewing angle; 3.Rugged ; 4.Vivid Mixture Color Effect ;5.Color Consistency; 6.Enhanced Contrast Ratio;7.Mass Production; 8.Long Service Life.
