| Prod Model: |

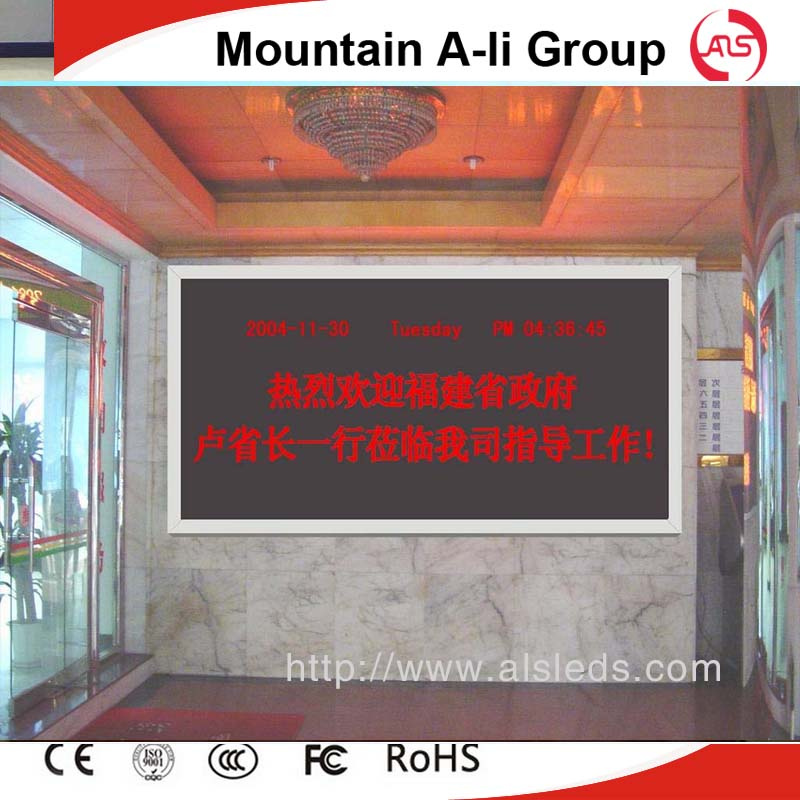

P4.81 indoor full color LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
250mm*250mm |
| Driving Method: |
Constant Current Driving |
| Optimal Viewing Distance: |
4m-50m |
| Average Power: |
120wm2 |
| Best Viewing Angle: |
160(W)120(H) |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Pixel Pitch: |
4.81mm |
| Pixel Density: |
43264dots/M2 |
| Scanning Mode: |
1/13scan |
| IP Rating: |
IP65 |
Product Description
Product Features and advantages:
.Energy saving design, good cooling system, high-definition, high cost, outstanding reliability and complete function by the majority of new and old customers favorite
.Ultra-high refresh rate, support the camera recorder, to ensure a clear picture quality
.Quick editing of assembly, disassembly system, saving unloading time
Remarks
1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
5.Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
Parameter
| The specifications of modules |
|
|
| Items | Parameter |
|
| Product Model | ALS-P4.81-13S |
|
| Module size | 250mm*250mm |
|
| Pixel pitch | 4.81mm |
|
| Pixel density | 43264dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 52dots(W)*52dots(H) |
|
| Module maximum power consumption | 15W |
|
| Module Thickness | 27.15mm |
|
| Module Weight | 0.154kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/13scan |
|
| Interface | HUB75-A |
|
| Brightness | ≥1800cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 500mm*500mm |
|
| Module quantity | 4 |
|
| Power supply | 5V/40A *1pcs |
|
| Cabinet resolution | 104*104ots |
|
| Optimal viewing distance | 4M~20M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RH Working temperature | (Work :-20°C~+50°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 120W/m2 |
|
| Maximum power consumption | ≤300W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥400HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768 |
|
HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
