Prod Model: |
P3 Indoor Full Color LED Display |
Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Module Size: |
192X96mm |
Brightness: |
>1500CD/M2 |
Cabinet Size: |
576X576mm |
Working Voltage: |
220VAC |
Optimal Viewing Distance: |
3-20m |
Optimal Viewing Angle: |
160°(W) 120°(H) |
Control Mode: |
Synchronization with PC |
Cabinet Resolution: |
192X192dots |
Lifespan: |
>100,000hours |
Warranty: |
2 Years |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Scanning Mode: |
1/16 Scan |
System Operating Platform: |
WIN XP |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
FCC,EMC,ISO9001 |
Pixel Pitch: |
3mm |
Pixel Configuration: |
SMD 3 in 1 |
Pixel Density: |
111111dots/M2 |
IP Rating: |
IP31 |
Product Description

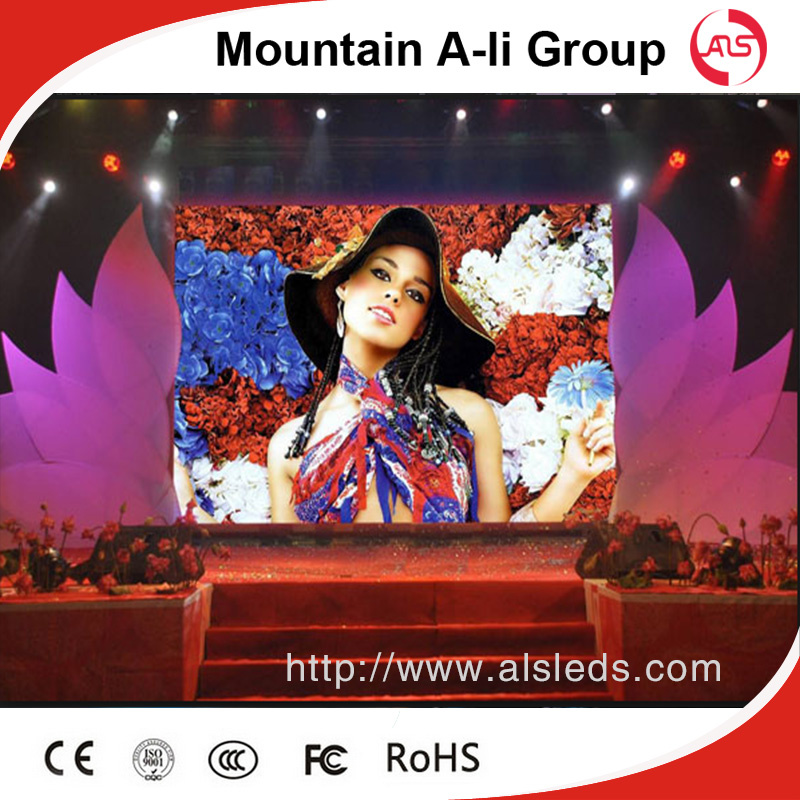

P3 SMD 3 in 1 LED Indoor Video Display Features & Technology Specification:
1. Widely application field and short ROI time. Commercial advertising LED display screen, Stadium perimeter LED display screen, mobile trailer LED display, LED screen for mobile media, shopping mall LED display, screen for logo showing, LED display for bank or stock exchange rate showing, LED moving sign for train and bus station, LED display screen for air port, communication LED display screen for information showing and instruction and ect.
2. Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more audience to get short ROI of your LED display screen's investment.
3. Long term brightness. More than 6000 nits brightness for outdoor full color LED display, more than 800 nits brightness for indoor full color LED display capacity through products lifetime of LED display screen.
4. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user program the LED display screen system.
5. Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
6. The list of available models of our LED display/screen/panels/signs. P2mm,P2.5mm,P3mm,P4mm, P5mm, P6mm, P7.62mm, P10mm, P12mm, P16mm, P20mm, P25mm, and ect.
P3 SMD 3 in 1 LED Indoor Video Display |
Unit Module | Item | parameter |
Model | P3 Full Color Led Module |
Module size | 192mm*96mm |
Pixel Pitch | 3mm |
Pixel Density | 1111111dots/m2 |
Pixel Configuration | 1R1G1B |
Module Resolution | 64dots(W)*32dots(H) |
Max power | 18w |
Module Thickness | 14.75mm(without magnet) 26.63mm (with magnet |
Module Weight | 0.16kg |
Driving Method | Constant Current Driving |
Scan Method | 1/16 scan |
Interface Way | HUB75-A |
Brightness of white balance | ≥1500cd/m2 |
Unit Module | Cabinet Size | 576mmx576mm |
Cabinet Composing | 18pcs |
Power supply Mode | 5V/40A 3pcs |
Cabinet Resolution | 192*192dots |
Optimal Viewing Distance | 3M-20M |
Optimal Viewing angle | 160°(W)120°(H) |
Environment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 10%-95% |
Operating Voltage | AC220V±10% |
Average power | 180W/H |
Max power Consumption | ≤360W/m2 |
Current | ≤20mA (Single LED ) |
Control system | Computer | Pentium4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥400HZ |
Gray/Color | RGB each 256 grade, can display 16.7M colors |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768 |
P3 SMD 3 in 1 LED Indoor Video Display |
Product Advantages :
1. Price Advantage: Best competitive price of the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle etc .
3.Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability. we have the strictly 72hours old ageing test to ensure the quality of the products. 2 Years warranty . CE,ROHS,CCC, ISO9001 ,EMC ,FCC certificates .
4. Service advantage: With professional service team for 24 hours service! Rich advertising LED display engineering experience both in domestic and oversea market .
Trade terms : | 1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery . |
2. Shipping freight are quoted under your requests . |
3. Shipping port: Shenzhen,mainland China . |
4. MOQ:1SQM . |
5.Package : Wooden packing and flight packing . |
About Technology : | 1. We provide the technology training for free, which contains the operation training and maintenance training at our factory. |
2. We will send our engineers to your country by negotiation. |
3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion. |
4. We will send our engineers to your place if we are expected after our negotiation. |
OUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: Responses in time, solve problems as soon as possible and ensure the use. Top quality+reasonable price+responsible after service=successful & win .
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges;
After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the requirements . Special service for big project, such as stadium, exhibitions, squares and so on .
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
3) Support prints your logo on products and let your logo shine anywhere. OEM/ODM orders are warmly welcome.
OUR COMPANY offers user-friendly products that optimize productivity and business efficiency and
maintain the highest standards of design and quality. Customer satisfaction is our prime objective and
our high quality LED video display screen used in more than 140 countries and win a high reputation.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
