| Prod Model: |
PH3mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576mm*576mm |
| Metel Cabinet: |
Aluminum Die Casting |
| LED Lamp: |
Black SMD2121 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
ETL |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 |
| System Operating Platform: |
Win7,Win8, XP etc |
Product Description

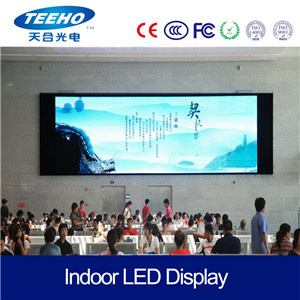

Specification Of SMDP3 Indoor LED Display |
Modules Specification |
Technical parameters |
UNIT |
parameters values |
Pixel pitch |
MM |
3 |
Panel size |
MM |
L192*H96*T13 |
Physical density |
/M2 |
111111 |
Pixel configuration |
RGB |
1,1,1 |
Driving method |
|
Constant current 1/16scan |
LED Encapsulation |
SMD |
2121 black led |
Display resolution |
DOTS |
64X32=2048 |
Module weight |
KG |
0.18 |
Module port |
|
HUB75-D |
Module working voltage |
VDC |
5 |
Module consumption |
W |
30 |
Led display specification |
Viewing angle |
Deg. |
120 degree |
Option distance |
M |
3-45 |
Driving device |
|
5024/5020 |
Every square metre module |
PCS |
54.25 |
Maximum power |
W/ M2 |
2100 |
Frame Frequency |
HZ/S |
≥60 |
Refresh frequency |
HZ/S |
≥320 |
Equilibrium brightness |
CD/ M2 |
≥1000 |
Working environment temperature |
0C |
-10~60 |
Working environment humidity |
RH |
10%~70% |
Display working voltage |
VAC |
AC46~54HZ,220V±15%/110V±15% |
Colour temperature |
|
9500K-11500K |
Gray scale/color |
|
≥16.7M color |
Input signal |
|
RF\ S-Video\ RGB etc |
Control system |
|
nonlinearity card,display card,Linsn control system |
Mean free error time |
HOURS |
>5000 |
Life |
HOURS |
100000 |
Lamp failure frequency |
|
<0.0001 |
Antijam |
|
IEC801 |
Safety |
|
GB4793 |
Resist the electricity |
|
1500V last 1min No breakdown |
teel box weight |
KG/ M2 |
40(standard steel box) |
Earth leakage current |
MA |
|
IP rating |
|
The back IP40,The front IP50 |
Steel box size |
mm |
L768Xh768x80
|
Shenzhen Teeho Optoelectronics Co.,Limited is one of leading high-tech manufacturer for led display , led lighting and related LED photoelectric engineering. Our factory covers an area of nearly 10,000 square meter, monthly production reach to 8,000 quare meters of LED display with 15 sets high-speed SMD machine.
Mass production ensures the uniformity and stability of all raw materials. Through resource integration,comprehensice integrated solutions, we providing more thoughtful services to our customers with ensuring the products quality and reduce cost effectively.
"Staff are first ,customers are highest "is the basic philosophy that we'v been insisting since Teeho founded. Our company aim to build a team like wolfs with ability of learning-oriented,high execution ,cohesion. Library was been set up for staff learning and relaxation .We also set up volunteer team to reveal enterprise positive energy. Company's overall image and working environment and positive energy has attracted a group of senior technological team and formed from the LED components to the LED terminal product research and development, manufacture complete industry scale.
Our products Teeho displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing.(all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifyion. Including: cover the indoor and outdoor series. such like: 1.rental display;2.advertising LED display;3.LED TV;4.full color anomalous display etc.Products are widely used in various public places: such as commercial plaza, government agency, stadiums, transport facilities,financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries,Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
Through the ways like cooperation with local customers, set up offices in local, SungreenLED have set up a batch of after-sales service which can rapidly solve problems. For rapid response, to quickly solve customer problem, personalized solutions. Make the products and services reflect personalized, comprehensive, long cycle, less defects.
Teeho is located in Shiyan Town, Baoan district, Shenzhen. Positive response national green environmental protection, energy conservation and emission reduction policy in developing process. We continue to focus on the LED display, striving to become the world's highest cost-effective LED supplier, the solution to the overall service, with the attitude of a new high-speed development in LED display industry.
Shenzhen Teeho Optoelectronics Co. Ltd(short for Teeho Optoelectronics), found in 2009, is a high-tech private enterprise specialized in LED Screens manufacturing with a ¥ 11 million of registered capital and over 300 employees in Shenzhen. It has been dedicating itself to offering one-stop LED display solutions to its customers including R&D, prototyping, assembly, sales and technology support across the globe.
Teeho industrial park is located in Bao'an, Shenzhen, the most populous LED industrial area, with a cover of more than 10, 000 m2 and over 300 million of amount of sales per year, fully equipped with modern automatic assembly lines with the manufacturing capabilities of 8000 m2 per month
Teeho Optoelectronics spans a wide range of products covering: Indoor Full-Color LED Displays, Out Full-Color LED Dislays, LED Television Displays etc, applied to governmental institutions, corporate image projects, business ads, media activities, cultural and entertainmental places, stadiums, stations and airports etc.
Teeho Optoelectronics is focusing all efforts to technology-leading strategies of production by relying on the three-tier talent strategy, gathering high profile professional talents, which makes a foundation of new R&D of products and specially custom-made products. The R&D teams of Teeho electronics have been dedicating themselves to one-stop solutions, and have obtained tens of certifications of products and innovative patents. Moreover, they have outstandingly achieved in high-end indoor full color display solutions.
Teeho electronics has been promoting itself by advanced technology and scientific managements and has the following certifications: ISO9001: 2008 Quality System Certification, ISO1400: 2004 Environment System Certification, CCC, CE, FCC, RoHS etc. With high quality and perfect service, Teeho Optoelectronics has built lots of sales and service networks and its high-quality products has been exported into more than 80 countries and areas such as the United States, India, New Zealand. Japan, Thailand, Taiwan and Hongkong.
Teeho Optoelectronics Co., Ltd has been marching on under core values of Integrity, Pragmatic, Harmony, Creativity to guide our staff members and to devote itself to leading status in this industry, to ensure that our client will be fulfilled with the high-quality products and best service. With the horizontal developments in industrial chain and a variety of for-profit models, we vigorously promote the construction of brand culture, strive to become a world-class brand researched and developed independently, to become the most professional LED screens and one-stop solutions supplier, which makes a contribution to competing of national brands in globe markets.
