| Prod Model: |

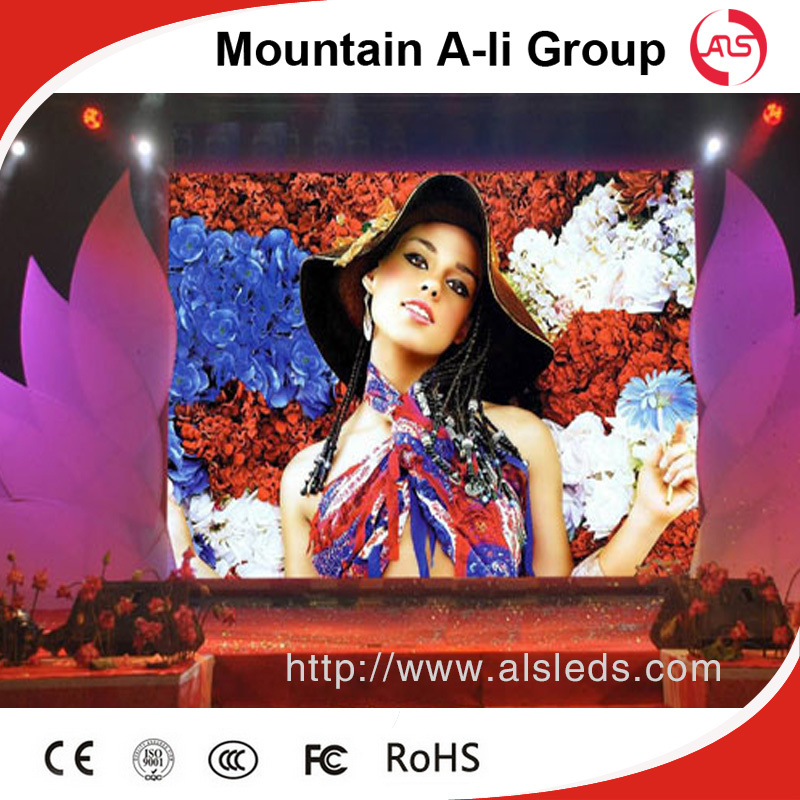

P3 Indoor High Resolution LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
P3 Indoor LED Display |
| LED Module Size: |
192mm*96mm |
| LEDs: |
SMD2121 |
| Brightniess: |
1500mcd/Suqare Meter |
| LED Modules Weight: |
0.2kg |
| Module Resolution: |
64dots *32dots |
| Interface Type: |
Hub75A |
| LED Modules Max Power: |
18W |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN2000 |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
FCC |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111dots/M2 |
| IP Rating: |
IP31 |
Product Description
Product Description
P3 Indoor Rental LED Display For Stage Video
Advantages:
High resolution high precision
Large view angle
Easy to carry and fast installation
Heat dissipation and long life
Seamless tiled best results
Competative factory price
Leading rental screen enterprise in China famous brand
Famous enterprise and TV corporate enterprise
Features:
1,Super slim cabinet and maximum thickness is only 75mm.
2,Super light cabinet and it's only 9.5kg/pcs.
3,Different colors of back cover can be satisfied with people's demand in different feeling.
4,Use high-end 16-bit IC and rich and delicate color and refresh rate up to 3500HZ.
5. The cabinet has the fast rotating hanging lock and manual pressure tablets which can avoid
accidental collision and dropping off and connect the screen is safer.
6,Based on unique back cover of design, according to the site conditions, it can be selected a
variety of quick repairing method.
7,Cabinet is used the die-casting aluminum molding technology and beautiful and strong structure
and its flatness ≤0.5mm.
8,Using Neutrik flight connector can make sure that LED screen is connected to be faster and it
works more steadily.
9,Using DC cooling fan can effectively reduce the noise when it's used in indoors.
10,Support for stacking and hanging installation.
Item | Parameter |
|---|
| Product model | P3-16S |
| Module size | 192mm*96mm |
| Pixel pitch | 3mm |
| Pixel density | 111111dots/m2 |
| Pixel configuration | smd 3in1 |
| Module resolution | 64dots(W)*32dots(H) |
| Maximum power consumption | 18W |
| Module thickness | 14.75mm |
| Module weight | 0.16kgs |
| Driving method | Constant current driving |
| Scan mode | 1/16 scan |
| Interface type | HUB75-A |
| Brightness | ≥1500cd/m2 |
| The specifications of cabinet |
| Cabinet size | 576mm*576mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A *3pcs |
| Cabinet resolution | 192*192dots |
| Optimal viewing distance | 3m~20m |
| Optimal viewing angle | 160°(W) 120°(H) |
| Temperature | "Storage:-35ºC~+85ºC |
| Working:-20ºC~+50ºC" |
| System operating humility | 10%-95% |
| The specifications of power supply |
| Operating voltage | AC220V±10% |
| Average power consumption | 180W/ |
| Maximum power consumption | ≤360W/ |
| Current | ≤20mA(single LED) |
| The specifications of control system |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| The specifications of the main technical parameters |
| Driving device | Constant current driving |
| Refresh rate | ≥400Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768
|
HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
