| Prod Model: |
SY-P3-16S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years Warranty After Shipping |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
FCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Stage Performance |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 Dots/M2 |
| IP Rating: |
for Indoor Use Only |
| System Operating Platform: |
Win98/2000/Nt/XP |
Product Description

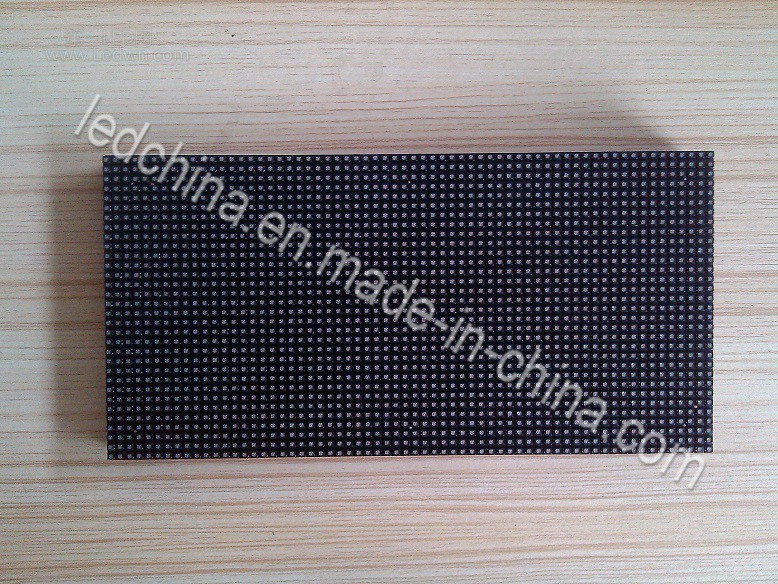

P3 Indoor High Resolution LED Display
Main features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated.
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Real white, brilliant colors, breathtaking grayscale.
| Description |
| Item Name | Parameter |
| Model No | SY-P3-16S |
| Module size | 192mm*96mm |
| Pixel pitch | 3mm |
| Pixel Density | 111111 pixels/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121 |
| Module resolution | 64dots(H)*32dots(V) |
| Drive type | Constant drive |
| Scan mode | 1/16scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥1700cd/m2 |
| Cabinet Dimension | 576mm*576mm |
| Module Quantity | 18pcs |
| Cabinet Resolution | 192*192 |
| Cabinet Material | Iron, Aluminum or Die Casting Aluminum |
| Best viewing distance | 3M~15M |
| Best viewing angle | 120°(H) 60°(V) |
| Average Power consumption | 550W/m2 |
| Max.Power consumption | ≤1150W/m2 |
| Current | ≤20mA(single LED) |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥600HZ |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Humidity | 10%-95% |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥5,000hours |
| Screen Lifespan | ≥100,000 hours |
| Screen Plainness | <±1mm |
| Blind Spot Rate | <0.0001 |
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.

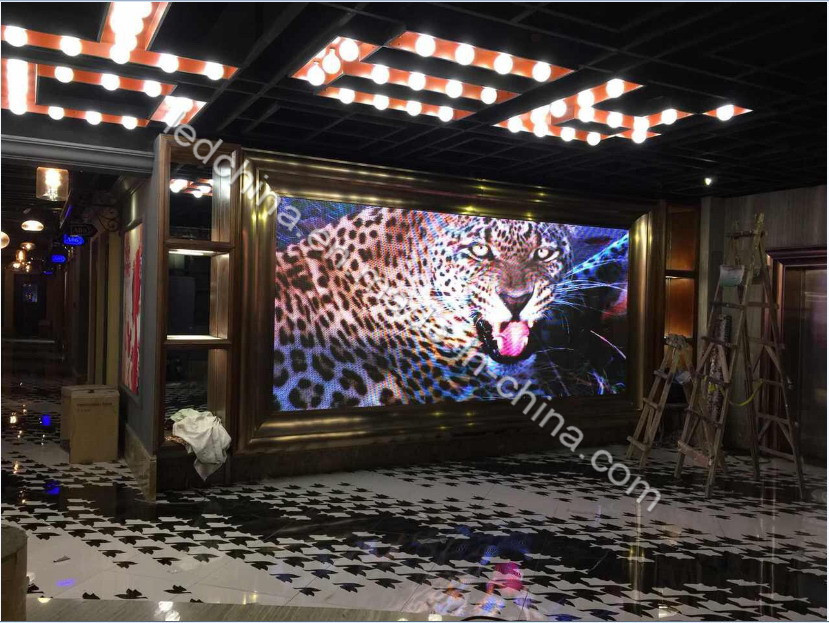

Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
