| Prod Model: |
SY-P3-16S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years Warranty After Shipping |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Certification: |
FCC |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 Dots/Sq.M |
| System Operating Platform: |
Win98/2000/Nt/XP |
| Application: |
Meeting Room |
| IP Rating: |
for Indoor Use Only |
Product Description

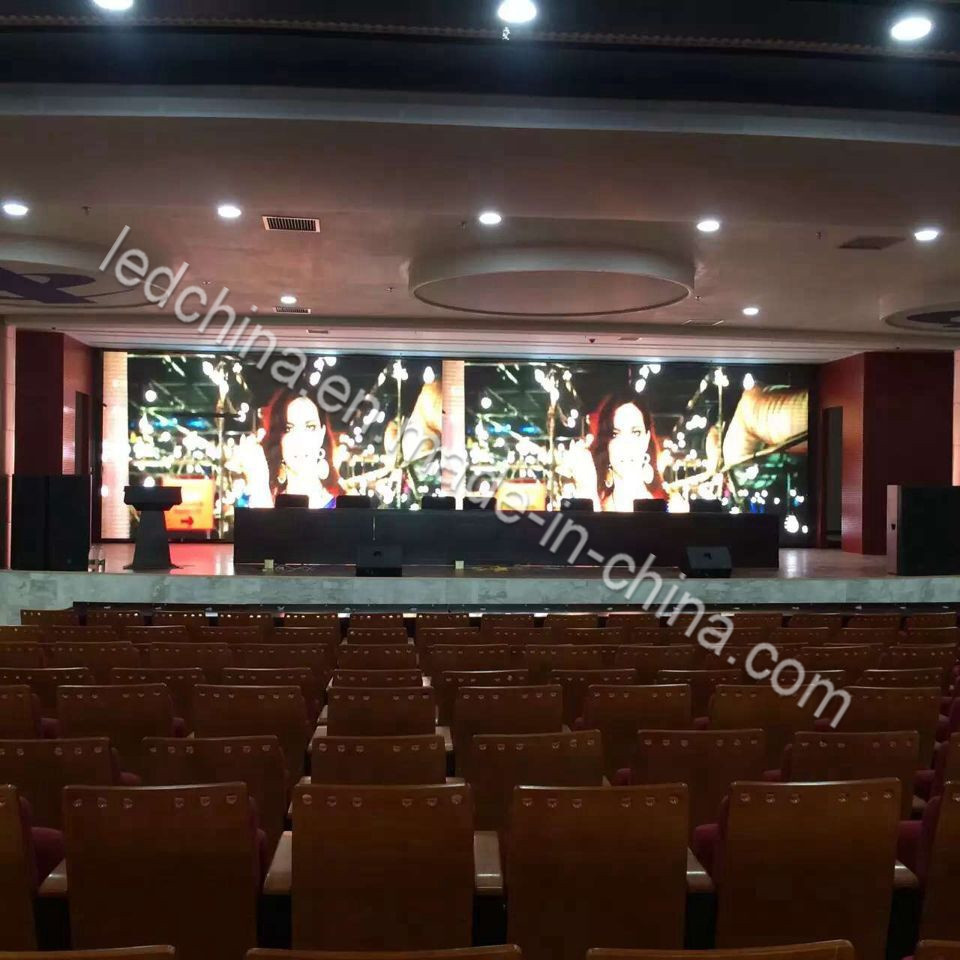

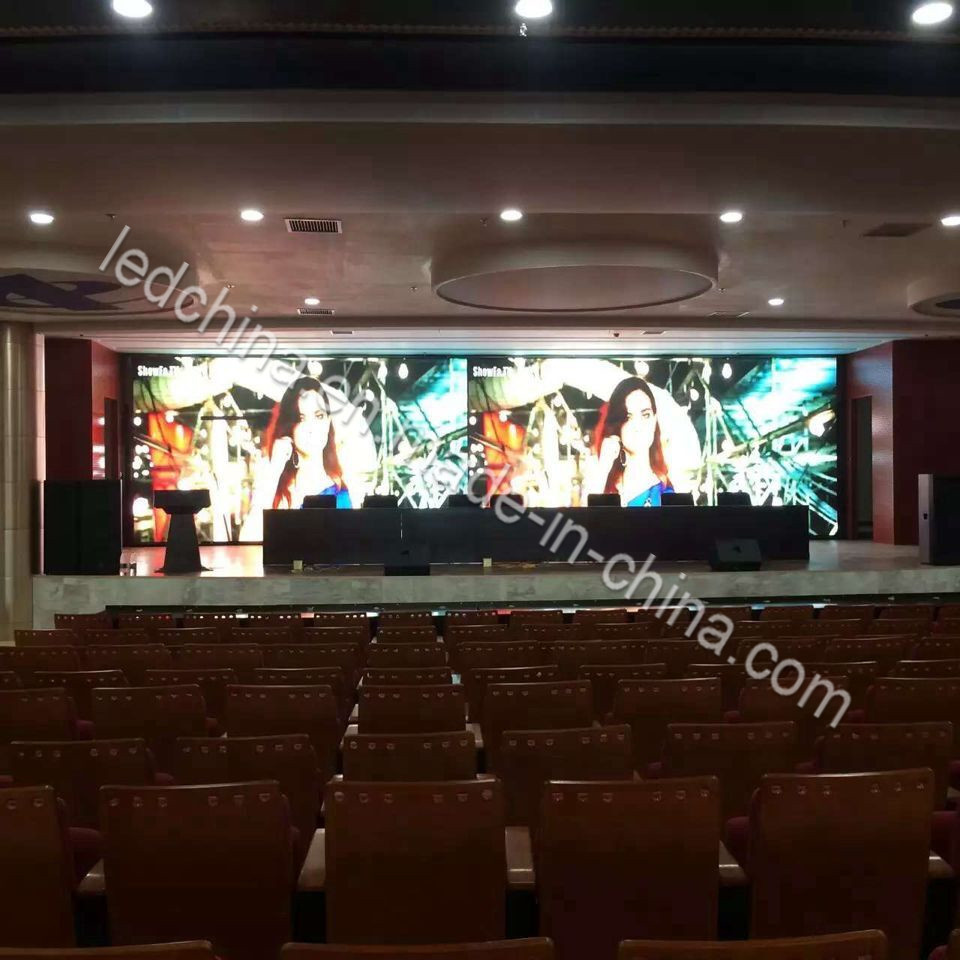

P3 Indoor High Definition LED Display
Features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated (no fans).
3. Lightweight and seamless.
4. Real white, brilliant colors, breathtaking grayscale.
| Indoor P3 SMD 3in1 Technical Parameters |
| Item Name | Parameter |
| Model No | SY-P3-16S |
| Module size | 192mm*96mm |
| Pixel pitch | 3mm |
| Pixel Density | 111111 pixels/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD2121 |
| Module resolution | 64dots(H)*32dots(V) |
| Drive type | Constant drive |
| Scan mode | 1/16scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥1700cd/m2 |

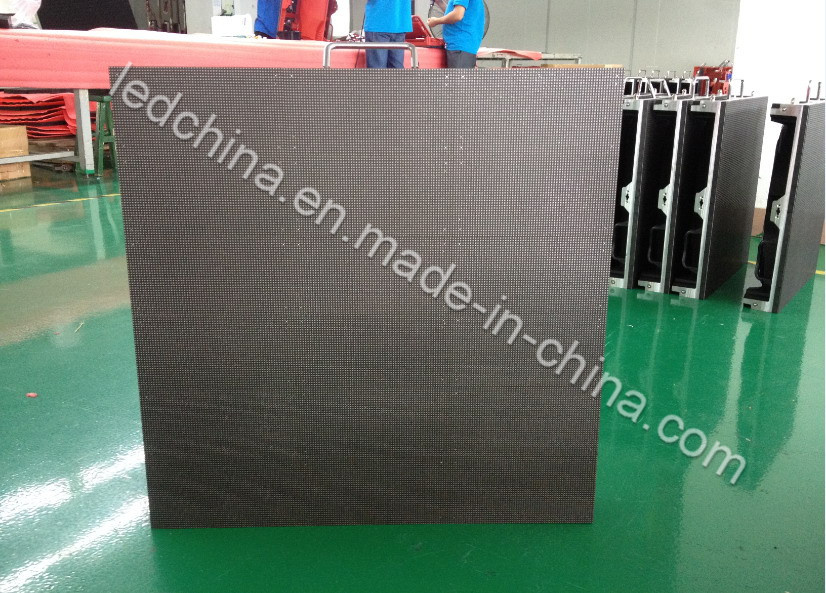

| Cabinet Dimension | 576mm*576mm |
| Module Quantity | 18pcs |
| Cabinet Resolution | 192*192 |
| Cabinet Material | Die Casting Aluminum |
| Best viewing distance | 3M~15M |
| Best viewing angle | 120°(H) 60°(V) |
| Average Power consumption | 550W/m2 |
| Max.Power consumption | ≤1150W/m2 |
| Current | ≤20mA(single LED) |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥600HZ |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Humidity | 10%-95% |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥5,000hours |
| Screen Lifespan | ≥100,000 hours |
| Screen Plainness | <±1mm |
| Blind Spot Rate | <0.0001 |
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
