| Prod Model: |
LW-FI 3 |
| P3 Indoor LED Display: |
Indoor Fixed |
| RGB LED: |
SMD2020 |
| Traditional Cabinet: |
Metal Plate |
| Drive Method: |
1/32 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 / M² |
| System Operating Platform: |
Win7 XP Vista |
| IP Rating: |
IP31 |
Product Description

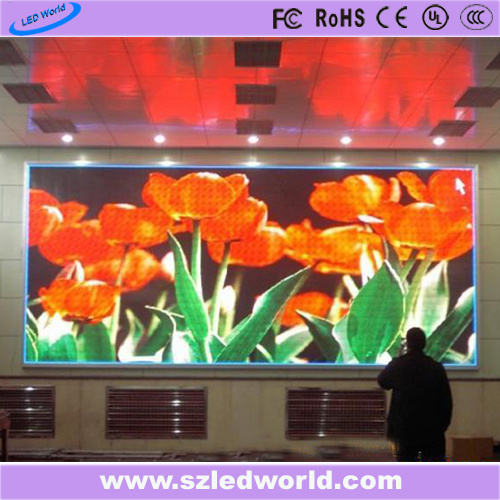

LED display screen, LED screen , LED sign , LED billboard, Metal LED panel , Full color LED sign
The design has the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.
This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.
The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.
The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.
High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.
Item |
Indoor Fixed LED display Series |
| Pixel Pitch(mm) | 3mm | 4mm | 5mm | 6mm |
| Pixel density(pix/m2) | 111111 | 62500 | 40000 | 27777 |
| LED Type | 2020 | 2020 | 3528 | 3528 |
| Viewing Angle | H:140°,V:140° |
| Color Depth(nits) | 1000 | 1200 | 1500 | 1500 |
| Drive Method | 1/32 | 1/16 | 1/16 | 1/16 |
| Color Depth | 16384 |
| Refresh Rate(Hz) | 1200 | 1200 | 1200 | 1200 |
| Module Size(mm) | 192×192×13 | 256×128×13 | 160×160×13 | 192×192×13 |
| Cabinet Size(mm) | 384×384 | 512×512×133 | 640×640×133 | 768×768×133 |
| Cabinet Material | Aluminum | Iron Sheet Metal | Iron Sheet Metal | Iron Sheet Metal |
| Cabinet weight(kg) | 9 | 15 | 23 | 32 |
| Voltage | 110/240V |
| Average.power(W/m2) | 300 | 250 | 160 | 120 |
| Max.power(W/m2) | 900 | 750 | 480 | 350 |
| IP Grade | IP31 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CE,FCC,RoHS,ETL,CCC |
