| Prod Model: |
P3.91 |
| Size: |
500mm*500mm |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Die-Casting Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Mall, Concerts, Shows and Event, Airport |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
3.125mm, 3.91mm, 4.81mm |
| Pixel Density: |
102400dots/Sqm, 63536DOT/Sqm, 43264dots/Sqm |
Product Description

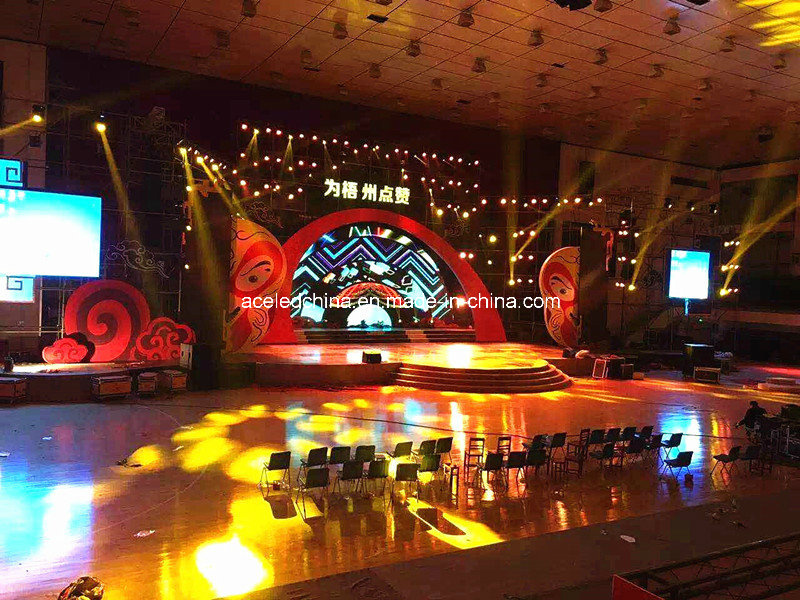

P3.125, P3.91 and P4.81 Indoor Rental LED Display with 500mm X 500mm
1. Indoor Rental LED Display with Perfect Size
2. Pixel Pitch: P3.125, P3.91 and P4.81
3. Cabinet Size: 500mm*500mm*80mm, 8.5KG/cabinet
4. Excellent Price
Contact Us Now to know more: mobile: +86 13538127671
| P3.125, P3.91, P4.81 and P6.25 Rental Die-Casting Cabinet of 500mm*500mm Datasheet | |
| 1 | Pixel Pitch(mm) | 3.125 | 3.91 | 4.81 | 6.25 |
| 2 | Led Lamp | SMD2121, Black LED | SMD2121, Black LED | SMD2121, Black LED | SMD3528 |
| 3 | Pixel Density (dot/) | 102400 | 63536 | 43264 | 25600 |
| 4 | Moduel Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| 5 | Brightness(cd/) | 1000 | 1000 | 1000 | 1500 |
| 6 | Viewing Angle(H/V) | H:140/V:140 | H:140/V:140 | H:140/V:140 | H:140/V:140 |
| 7 | Cabinet Material | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium |
| 8 | Cabinet Size(W*H*T,mm) | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 |
| 9 | Cabinet Weith(KG) | ≈8.5 | ≈8.5 | ≈8.5 | ≈8.5 |
| 10 | Fresh Rate | 1920 | 1920 | 1920 | 1920 |
| 11 | Grey Scale (Level) | 65536 | 65536 | 65536 | 65536 |
| 12 | Display Color | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| 13 | Brightness Adjustment (Level) | 256 | 256 | 256 | 256 |
| 14 | Waterproof | IP31 | IP31 | IP31 | IP31 |
| 15 | Driving Way | 1/16 constant driving | 1/16 constant driving | 1/13 constant driving | 1/10 constant driving |
| 16 | Input Power Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| 17 | Input Voltage (V) | 110V - 240V | 110V - 240V | 110V - 240V | 110V - 240V |
| 18 | Screen Power Consumption(W/) | Max: 200; Average:100 | Max: 600; Average:200 | Max:580; Average:195 | Max:600; Average:200 |
| 19 | LEDs Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
| 20 | Operating Temperature | -20ºC~+45ºC , 10%~90%RH |
| 21 | Signal Interface (Video Processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Control Distance | 100 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km |
Why Chengxinguang(CXG) LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: ACE LED) is located in Shenzhen, China, a major production base of global LED display screen industry. Chengxinguang is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
Chengxinguang is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
Chengxinguang uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose Chengxinguang as their partner for LED displays.
