P3.125 Indoor Rental LED Display
| Price: |
US $ 100-2000/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
P3.125 |
| Size: |
500mm*500mm |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Die-Casting Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Mall, Concerts, Shows and Event, Airport |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
3.125mm |
| Pixel Density: |
102400dots/Sqm |
| System Operating Platform: |
Win XP, Win 7, Win 8, Win 8.1, Win10 |
Product Description
Hot Sale P3.125 LED Display/ LED Sign with 500mm*500mm
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm cabinet.
2) 16 bit color, 16384 gray scale, refresh rate over 2500HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable

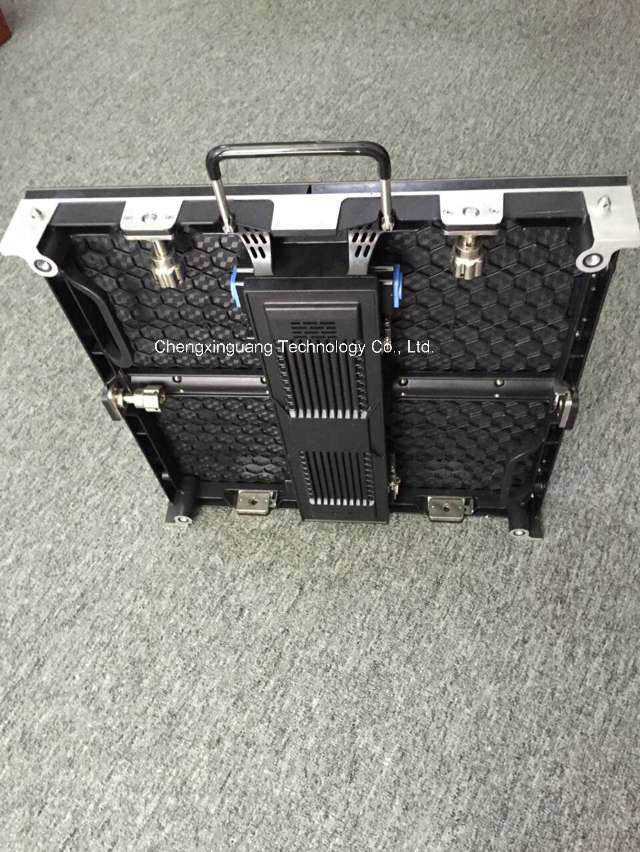

4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.2mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
6) With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle
7) High contrast rate up to 5000:1 by using black LED
8) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
9) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10). Good thermal design, excellent heat dissipation even no fan installation,
11) The same cabinet size can be compatible with different pixel pitches such as P3.125, P3.91,P4.81, and P6.25.If you want to update the product, you only need to change the module.
12).It is low noise, can be installed in office and meeting room.
Contact Us Now to know more: mobile: +86 13538127671
| P3.125, P3.91, P4.81 and P6.25 Rental Die-Casting Cabinet of 500mm*500mm Datasheet | |
| 1 | Pixel Pitch(mm) | 3.125 | 3.91 | 4.81 | 6.25 |
| 2 | Led Lamp | SMD2121, Black LED | SMD2121, Black LED | SMD2121, Black LED | SMD3528 |
| 3 | Pixel Density (dot/) | 102400 | 63536 | 43264 | 25600 |
| 4 | Moduel Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| 5 | Brightness(cd/) | 1000 | 1000 | 1000 | 1500 |
| 6 | Viewing Angle(H/V) | H:140/V:140 | H:140/V:140 | H:140/V:140 | H:140/V:140 |
| 7 | Cabinet Material | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium |
| 8 | Cabinet Size(W*H*T,mm) | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 |
| 9 | Cabinet Weith(KG) | ≈8.5 | ≈8.5 | ≈8.5 | ≈8.5 |
| 10 | Fresh Rate | 1920 | 1920 | 1920 | 1920 |
| 11 | Grey Scale (Level) | 65536 | 65536 | 65536 | 65536 |
| 12 | Display Color | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| 13 | Brightness Adjustment (Level) | 256 | 256 | 256 | 256 |
| 14 | Waterproof | IP31 | IP31 | IP31 | IP31 |
| 15 | Driving Way | 1/16 constant driving | 1/16 constant driving | 1/13 constant driving | 1/10 constant driving |
| 16 | Input Power Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| 17 | Input Voltage (V) | 110V - 240V | 110V - 240V | 110V - 240V | 110V - 240V |
| 18 | Screen Power Consumption(W/) | Max: 200; Average:100 | Max: 600; Average:200 | Max:580; Average:195 | Max:600; Average:200 |
| 19 | LEDs Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
| 20 | Operating Temperature | -20ºC~+45ºC , 10%~90%RH |
| 21 | Signal Interface (Video Processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Control Distance | 100 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km |
