| Prod Model: |
HX-OF20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Brand Name: |
Harse |
| Usage: |
Outdoor |
| MOQ: |
2 Square Meters |
| Size: |
3840*1920mm(P20mm) or Customised |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
2R, 1G, 1B |
| Pixel Pitch: |
20mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CCC |
| Pixel Density: |
2500 |
| Average Power Consumption: |
400W |
Product Description

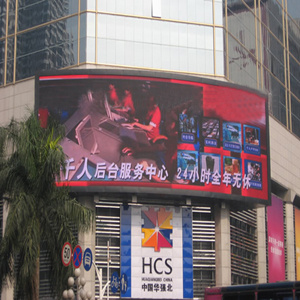

P20mm led display outdoor:
Brief discription:
1. High definition, energy saving
2. Lower heat productivity;
3. Outdoor advertising application;
4. High rate of return on investment.
Features:
1. LED Chip: Epistar from Taiwan;
2. Brightness: High Brightness that can have a better viewing effect;
3. IP 65: Good waterproof and dustproof design;
4. Operation: Easy Installation & Operate;
5. Service: Two years warranty.
Package:
1. Wooden case
2. Flight case(for rental)
Delivery time:
Within 15~25 days after receiving the deposit.
|
Display and control feature |
Structure feature |
|
Specification |
Parameter |
Specification |
Parameter |
|
Pixel Pitch |
20 mm |
Module size |
320 mm*160 mm |
|
Pixel composing |
2R1G1B |
Resolution/module |
16 dots*8 dots |
|
Wavelength (R) |
625±5 |
Standard cabinet size |
1280 mm*960 mm |
|
Wavelength (G) |
522±3 |
Weight per sqm |
65 Kg/sqm |
|
Wavelength (B) |
567±3 |
PIP grade |
IP65 |
|
Wave Angle (H) |
140°(H)/ 60° |
Install mode |
Wallmount, hung and stand structure |
|
LED package |
DIP546 |
Cabinet Material |
Iron/Aluminum |
|
Density per sqm |
2500 pixel |
Working power |
|
Display color |
256*256*256 |
Specification |
Parameter |
|
Whiteness brightness |
≥6500 |
Working voltage |
AC 220v/380v±10% 47~64Hz |
|
Brightness level |
128 grade |
Max power/sqm |
750W/sqm |
|
Frequency |
60 Hz |
Average power/sqm |
400W/sqm |
|
Refresh |
400 Hz |
Short circuit protection |
Yes |
|
Driving method |
Constant Static |
Led Lamp type |
Cree |
|
Control mode |
synchronous |
Working environment |
|
Display port |
DVI |
Specification |
Parameter |
|
Display mode |
1024*768 /1024*1024 |
Environment |
Outdoor |
|
Out of control |
1/10,000 |
Working temperature |
-20~50 |
|
lifetime |
100,000 hours |
Working Humidity |
10~90% |
Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.
"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.
Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.
Welcome to our Showroom and My Products for more detailed offer info.
