| Prod Model: |
P20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Ambient Humidity: |
10%--95% |
| Best Viewing Distance: |
16-300m |
| Brightness: |
>8000nit |
| Waterproof: |
IP67 Front IP65 Rear |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
20mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Pixel Density: |
1600 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
Product Description
Features and advantages;
1. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
2. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
7. As for P20, it is the promotional product for this season, we can give you a very competitive price.
Application and market;

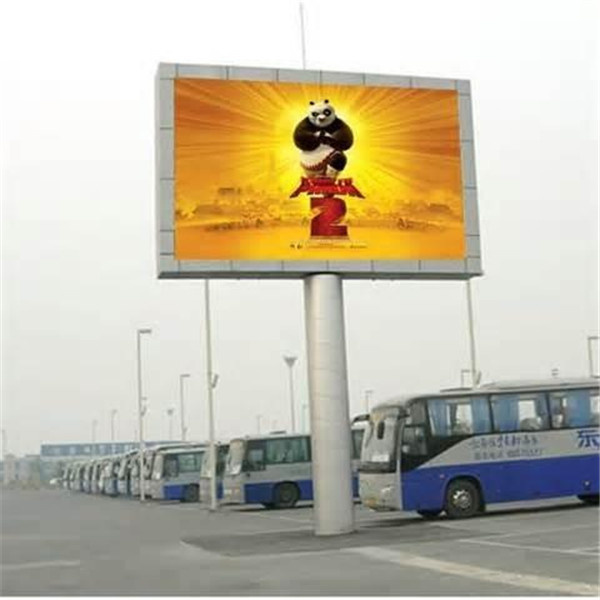

Wide application field & short ROI time: Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instructio
Our services;
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port: Shenzhen, Mainland China
4. MOQ: 1sqm
| Description | Technical parameter |
| Unit module | Module size | 320*160mm |
| Pixel pitch | 20mm |
| Pixel density | 2500dots/m2 |
| Pixel configuration | 2R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 16dots*H: 8dots |
| Mask material | Soft mask |
| Cabinet | Dimension | 960mm*960mm*170mm |
| Quantities of module | 18pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing angle | 16-300m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 17cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 250-500W |
| Max. Power consumption | ≤ 560W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 8000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
