| Prod Model: |
IP31 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
FCC |
| Pixel Pitch: |
2.5mm |
| Pixel Density: |
160000dots/M2 |
| Scanning Mode: |
1/32 |
| System Operating Platform: |
Win 7/Win8/Win10/Win XP |
| IP Rating: |
IP31 |
Product Description

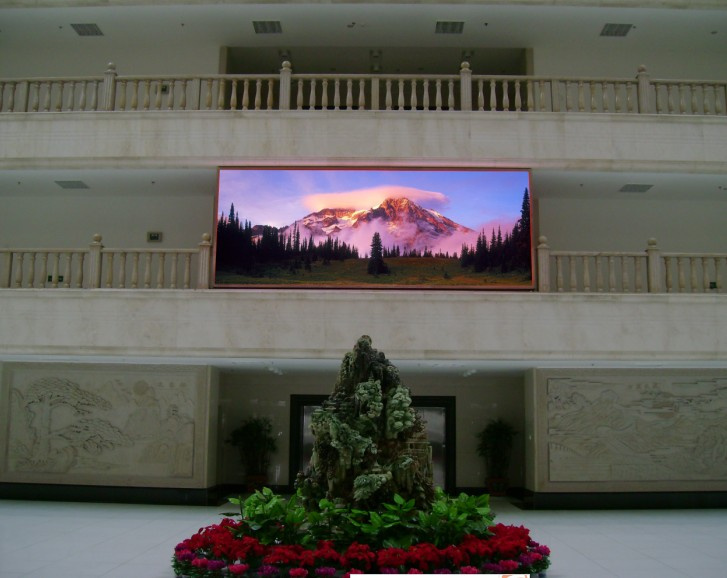

P2.5 HD Indoor Full Color LED Display
| Model No. | P2.5 | Module Size | 160mmx160mm |
| Display Function | Videl Display | Module Density | 4096dots |
| Pixel Configuration | 1R,1B,1G | Viewing Angle | 160° |
| LED Packing | SMD2121 | Temperature-Operating | -20-45ºC |
| Display Type | LED Video Display | Humidity-operationg | 10%-95% |
| IP rating | IP31 | Average power consumption | 200W/sq. |
| Package | carton
wooden structure support
pearl cotton | Max power consumption | 700W/sq. |
| LED Chip Brand | SM LED | Refresh Frequency | ≥360HZ |
| Pixel Density | 160000dots/sq. | Brightness | ≥1200cd |
| Module Resolution | 64*64pixels | Frame Frequency | ≥60HZ |
Full color
SMD INDOOR
P3mm 192mm x 192mm 64x64 pixels
P4mm 256mm x 128mm 64x32 pixels
P5mm 160mm x 160mm 32x32 pixels
P5mm 320mm x160mm 64x32 pixels
P6mm 192mm x 192mm 32x32 pixels
P7.62mm 244mm x 122mm 32x16 pixels
P10mm 320mm x 160mm 32x16 pixels
SMD OUTDOOR
P6mm 192mm x 192mm 32x32 pixels
P8mm 256mm x 128mm 32x16 pixels
P10mm 320mm x 160mm 32x16 pixels
The following are our advantage:
1.Quality is our cuture,We gurrantee our led display module or led display screen 2 years
2,Price is very reasonable,we are factory.we have own research and development department
3.MOQ:led display module:1pcs,led display screen:1 sqm
Website:http://www.wtoled.com
SHIMAO Optoelectronics technology Co.,LTD had been engaged in designing and manufacturing LED display for more than 9 years. Our products have certificates like CE/FCC/RoHS/CCC/UL.
The best quality products and excellent service will be provided to you by our professional team
Our company was founded in 2008, Total area reach 3600. We focus on full color LED display of research and development, production, sales and service, provide complete and professional products solutions.
We have accumulated rich experience in the research and development, manufacture the LED display and LED Core device, we have the first-class automated production equipment and have established a systematic for professional display production processes, this ensure our LED display stable quality and the improving of the product cost performance
Our company task is to formulate industry standards as our responsibility, we work hard and make the progress. The target is to create the world famous brand. We had passed the ISO9001: 2008 certification, 3C and CE authentication, our product standards is over the statement of LED display general specification.
