| Prod Model: |
P16mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Outdoor |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video |
| Certification: |
CE |
Product Description
We can supply LED Display, LED display module.

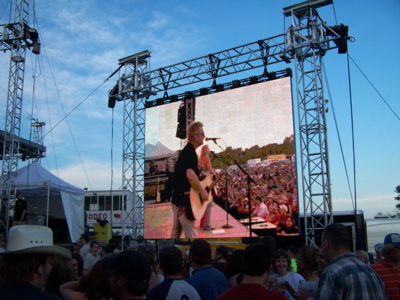

LED display rental is one of the quick-developing service line in the years recently. Our LED screens are perfect for corporate events, concerts, radio and television promotions, sporting events, fairs, festivals, conventions, tradeshows etc. All Tricolor display screens are bright enough to be seen in direct sunlight for either Indoor or outdoor events. LED screen plays the words, pictures and video programs; All of these enhance the stage witchery and increase the grade of the activities. The display color is 65536, and the refresh rate can be up to 4800 Hz/s. So the audience will not see the scan line when they take the video with DV or pictures with camera for the screen. The cabinets of our LED display can be made by die-casting alum or by steel; Our cabinet have the unique hanging structure which is suitable for rental business.
|
Specification |
Parameter |
|
Pixel Pitch |
16 mm |
|
Pixel composing |
SMD 3 in 1 |
|
Density per sqm |
3906 pixel |
|
LED package |
SMD 5050 |
|
Module size |
256 mm*128 mm |
|
Display resolution/module |
16 dots*8 dots |
|
Standard cabinet size |
1024*768 mm /1024*1024mm |
|
Weight per sqm |
50 Kg/sqm |
|
Protection classification |
IP65 |
|
Wave Angle (H) |
140° (H)/ 60° |
|
Display color |
65536*65536*65536 (16bit) |
|
Whiteness brightness |
≥ 5500 |
|
Changing frame frequency |
60 Hz |
|
Refresh |
1400 Hz |
|
Driving method |
Constant static Driving |
|
Control way |
Real Pixel |
|
Max power/sqm |
1100W/sqm |
|
Average power/sqm |
450W/sqm |
|
Working voltage |
AC 220± 10%50Hz or AC 110± 10%60Hz |
|
Short circuit protection |
Yes |
|
Working temperature |
-10~50 centigrade |
|
Working Humidity |
10~90% |
|
Out of control |
1/10, 000 ( scattered) |
|
Lifetime |
100, 000 hours |
|
Environment |
Outdoor |
|
Install mode |
Hung |
|
Install Purpose |
Rental |
|
Control mode |
Synchronous |
|
Display port |
DVI |
|
Display mode |
1024*768 /1024*1024 |
Shenzhen Tricolor Technology co., Ltd. is an integrated service supplier, which is specializing in the R&D, production and market of LED display screen. We specialize in one-stop service on solution offer, design, product manufacture, installation and after sale service that satisfy customer on various demands. Now Tricolor covers the solutions with LED Curtain Solution, Rental LED Screen Solution, Permanent Installation LED Screen Solution, Perimeter LED Screen Solution. We do our best to serve quality market customer all the time.
Tricolor is founded by a team with skilled and experienced technicians, who will dedicate themselves to research and provide complete LED display system solution; Tricolor promotes the environment protection and energy saving with technology. We would like to offer the most reasonable solution for the users by all-dimensional technology integration of electronics, optics, structure, system performance, and easy operation and product reliability.
Tricolor consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance; IP rating and so on, we will adopt the most strict quality control system to guarantee products with best quality.
