| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size : 256*128*25: |
LED Lamp DIP346 |
| Display Type: |
LED Dot Matrix Display |
| Tube Chip Color: |
Dual-color |
| IP Rating: |
IP54 |
| Certification: |
CCC |
| Pixel Pitch: |
16mm |
| Display Function: |
Text Display |
| Scanning Mode: |
Static Scan |
| Pixel Configuration: |
2r 1g |
| Application: |
Traffic |
| Pixel Density: |
3906DOT / Sq.M |
| Average Power Consumption: |
352W / Sq.M |
Product Description

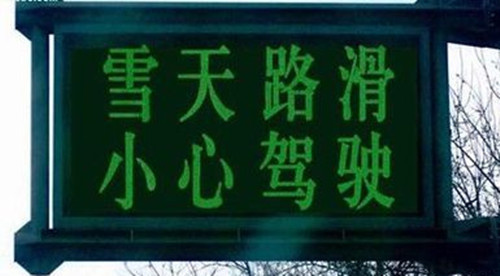

P16 outdoor traffic led display
Functions of traffic guidance led screen
1.According to monitoring data provided by mount control system linked with CCTV system, it can release traffic illegal information in scope of jurisdiction ,such as over speed, running a red light,ect.
2.It can be used as information board on highway,providing current traffic jam,reducing traffic accidents.
3.It can show some traffic signal and signs.
4.As a guidance of roads, it can avoid that people lose their ways and decrease traffic jam,reducing traffic accidents.
5.It provide traveler with the best route to destination.
6.Release some friendly reminder,such as ,caution notice, be careful,don't drive fatigue,etc.
Features
Traffic led display contain photosensitive control system and it can adjust the brightness automatically
according to outdoor environment .It's 1/3 energy-saving and environment-protect.It reduces the cost greatly and makes viewing effect better.
1.With high refresh rate and gray scale,deliver vivid picture.
2.Program of advertisement in display is changeable. It can display 24/7.
3.Support double signal cable for hot backup.When one network cable break off,another one will work
automatically.
4.It adopt highly efficient fiber-optic transmission system to reduce signal delay of decline,which ensure the consistency of the display.
5.Controlled by remote IP and Clustered-Control.
Product parameter
| Pixel pitch | 16 mm |
| Module size | 256*128*25mm |
| LED lamp | DIP 346 |
| Refresh rate | Over 600 HZ |
| Viewing angle | H110dgree V70dgree |
| Flatness | More or Less 0.25mm |
| Pixel configuration | 2R 1G |
| Module resolution | 16*8 |
| Scanning | Static constant current |
| Max power consumption | 880 w/sq.m |
| Viewing distance | Ove 16 m |
| Installation method | fixed installation |
| Pixel density | 3906 dot/sq.m |
| Module weight | 0.6 kg |
| Brightness | 8500-10500cd/sq.m |
| Average power consumption | 352w/sq.m |
| Screen weight | 65kg/sq.m |
| Control method | asynchronous |
Package and transportation
Professional package: wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation,
which faultlessly solve your worries about goods damage.
