| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100,000 Hours |
| Warranty: |
2 Years |
| Display Type: |
LED Dot Matrix Display |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Certification: |
CCC |
| Pixel Pitch: |
16mm |
| Display Function: |
Image & Text Display |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
350W / m² |
| Pixel Configuration: |
Red |
| Application: |
Traffic Guidance |
| Pixel Density: |
3906 Dots/Sqm |
Product Description

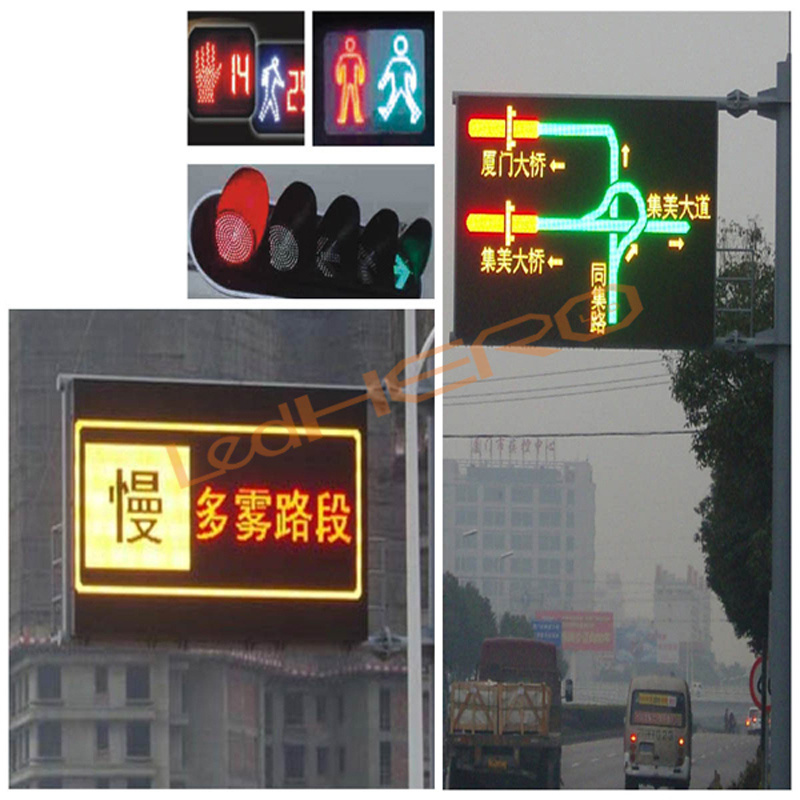

P16 led display for traffic guidance
1. high brightness
2. waterproof
3, CE & ROHS certificate
4.long lifespan
Specifications:
1 | Brightness | ≥7000cd/sq.m |
| 2 | Driving Method | 1/4scan |
| 3 | View Angle | Horizontal 120°,Vertica 70° |
| 4 | Min. Viewing Distance | static |
| 5 | Gray scale | 16bit |
| 6 | Colors | 281 Trillion |
| 7 | Refresh rate | ≥1200Hz |
| 8 | Input Voltage | AC220V/50Hz or AC110V/60Hz |
| 9 | Power Consumption(Max./Ave.) | 1100/400 W/sq.m |
| 10 | Screen weight | 60 kg/sq.m |
| 11 | MTBF | >10,000 hours |
| 12 | Life span | ≥100,000 hours |
| 13 | IP rating(Front/Rear) | IP65/IP43 |
| 14 | Temperature-operating | minus30°C~60°C |
| 15 | Humidity-operating | 10%~90% |
| 16 | Controlling system | Colorlight or Linsn |
| 17 | Source compatibility (With video processor) | AV,DVI,HDMI,SDI,S-Video,YPbPr |
| 18 | Operating System |
Windows98/me/2000/NT/XP/WIN7
|
Package and transportation
Professional package: wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation,which faultlessly solve your worries about goods damage.
About Led-Hero
With 7-year experience in LED display industry, our factory has the ability of processing, researching and developing led display to ensure prolificacy .A strict quality control process make sure that our led displays are of high quality.
After-sale service
1) Warranty:
Free to solve quality problems to ensure normal operation of led display in the warranty period . If the problem is from the product itself, we bear all the responsibility at any time.
2) Free maintenance:
If led display can't work,our company repair the broken parts and only charge cost of necessary raw materials in the warranty period.We provide spare parts and maintenance for the lowest price after the warranty period.
3)Quick response:
Respond within 2 hours,non-artificial and general fault be solved within 48 hours.
4) Free support:
Provide service support in real time by telephone or internet. With the help of network, we give clients remote debugging support (software) to solve the problem.
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
