| Prod Model: |
LED057 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
UL |
| Pixel Density: |
3906dots |
Product Description
HD P16 big size outdoor full color LED display ;Outdoor Fixed LED Display-AD16
Pixel pitch: 16mm
Refresh rate: 3840Hz
Brightness: ≥7500CD/
Cabinet Size: 960*960*150mm
Cabinet Weight: 50kg
Module features:
--Can be front or rear maintenance,
--Much easier for module repairing\disasembly work;
--Unique design with high precision,much stable and fla.
--Cabinet features:
--960*960mm standard iron box -- high smoothness of high accuracy.
Advantages of dual-maintenance module display:
There are no screws between module and cabinet, which can be easier to disassemble and install, it only cost a few seconds to disassemble.
The power lines can be directly disassembled, and there are no screw to fasten that makes a high work efficiency.
Space saving, the traditional display need enough space for easy maintenance in the later period. But, now, the new one has space saving advantage.

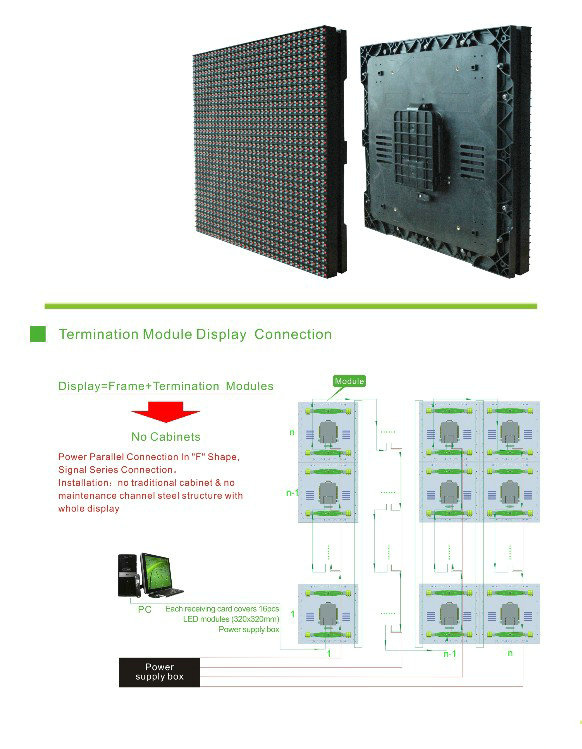

Front or rear maintenance option
Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
Energy Saving≥50%, Environment Protection
Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.
Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
Free Back Service Path, Excellent Display Effect
Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.
Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
IP65, Fast Installation and Maintenance
IP65 for modules, meets outdoor naked installtion requirements.
Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
Firm, Flat and Backup Solution
Dark black surface,firm and flat, anti-UV module parts, which gurantees screen in firm shape.
Power supplier and control system, backup solution is available to gurantee.
Camera optional, Lan cable, 3G, WIFI, Multi-control, ethernet for data trasmittance options.
Application places

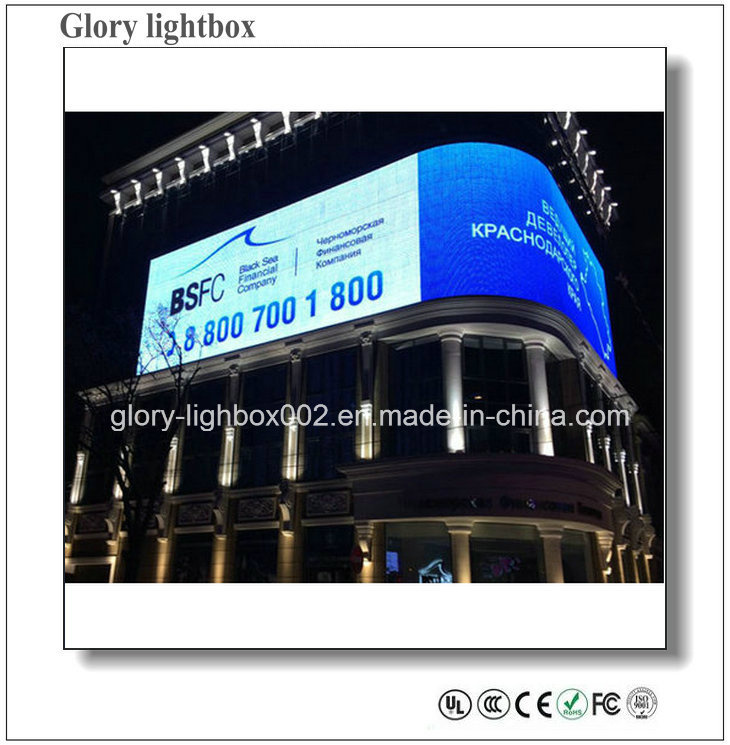

Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate.
Package Parameters:
Gross Weight: 113kg (Estimated data,2pcs /Case)
Outer Package Size : 1030*388*1150mm (Estimated data,2pcs /Case)
Packing Material :Carton+Pearl cotton +wooden pallet
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. wecan offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 2 years6. Delivery time: 3-12 working days| Item | Specification Parameter |
| Pixel Pitch,Resolution rate,size | 16mm,20*20 Dots,320*320*30mm |
| Pixel color, Pixel LED | 1R1G1B, DIP346 |
| Working voltage,Module Power | DC5V,60W |
| Driving IC,Driving way | JXI5020B,Static |
| HUB | HUB 16 |
| Material,Cabinet Weight(kg/Cabinet) | Aluminum / steel sheet ,39kg/Cabinet |
| Resolution rate,size,Module quantity | 60*60 Dots,960*960*150mm,3*3 |
| Density | 3906 dots/ |
| White balance ,Color temperature | 7500CD/,6500 K |
| view angel,Non-Flatness,Module interval | H:110°;V:50°,<1mm,<1mm |
| Maximal power/,Average power/ | 680 W/,300 W/ |
| Frame frequency,Refresh frequency,Gray grade | ≥60Hz,1920-3840Hz,13bit |
| Control system,System supports | Novastar / Linsn /,Windows XP,WIN 7, |
| Working temperature,Protection grade | -20ºC - +50ºC,Front/Back:IP65/IP54 |

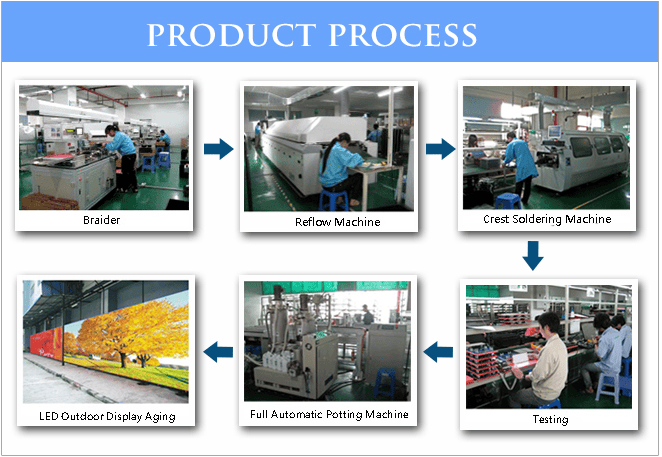

Factory showing:
Other options:
Guangzhou Glory Light Box Manufacturing Co., Ltd. Located in Guangzhou, China.
We are the factory and offer various advertising light boxes, light box display, LED signs etc. The aim of us is to continuously develop new and more effective advertising products. We have many regular lightbox products. But as we know, there are ever-changing articles in the advertising area. So our company also make the customized item according to your request. Welcome to let me know your model, size, material, structures, weight etc...
Our main product: Advertising player, LED screen display, Scrolling light box, LED crystal light box, LED slim light box, acrylic light box, LED display screen, solar light box and so on.
Our products are exported to Europe, America, Australia, Middle East, Asia...We have cooperated with some famous brand, Heineken, Tiger, Vodafone, Alfred dunhill. We are looking forward to the cooperation with you! !
Why choose light boxes? They widely used in the shopping malls, chain stores, , railway, bus-stop, airport, highway, parking lot, hotel, entertainment, the place where people here and there. Your products will be knowed quickly. And they are easy to application and maintain. Energy-saved and Environmental protection. It is the best choice to promote your products and bring your generous profits.
