| Prod Model: |
UVO-PH16-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Guarantee: |
1 Years |
| Color: |
Full Color |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
RoHS |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
300W / m² |
Product Description
We are a professional LED display in China, who designs different displays or modules according to customer's demand.
High quality and best service

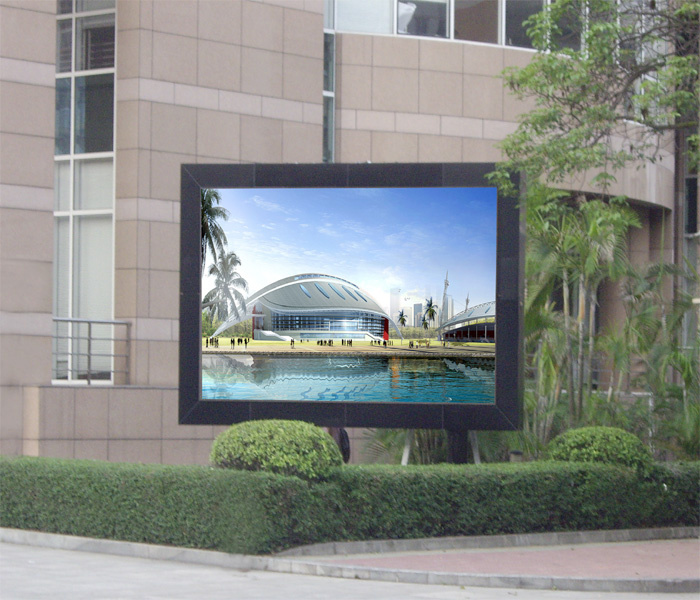

Below is parameter of P16 Full Color Display, for you reference
|
P16 Full Color Display |
|
Item |
Specification |
|
Pixel Pitch (mm) |
16 |
|
Pixel LED |
DIP546 |
|
Pixel Density (dot/m 2 ) |
27778 |
|
Pixel Configuration |
2R1G1B or 1R1G1B |
|
Module Size (Lmm*Hmm) |
256X128 Or 256X256 |
|
Brightness(CD/m 2 ) |
about 6000 |
|
Best Viewing Angle |
50° H/120° V |
|
Drive Mode |
1/4 Scan with Constant Current |
|
Drive IC |
MBT5026 |
|
Working Voltage |
AC 110V, 220~240V, 50HZ |
|
Protection Level |
IP65 |
|
Environment Temperature |
Storage: -40° C~90° C Operation: -30° C ~+ 50° C |
|
Blind Spot Rate |
Less than. 0003(LED display industry standard) |
|
Working Humidity |
5%-85% |
|
MTBF |
≥ 10000hours |
|
Lifespan |
≥ 100000hours |
Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.
Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.
Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
