| Prod Model: |
LS-FL-IA-0.5mx0.5m(P125) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1,800nits |
| Color Temperature: |
6,500deg. K |
| Viewing Angle: |
140/100 |
| Panel Size: |
768X768mm |
| Resolution Per Panel: |
48X48 |
| Panel Material: |
Epoxy Paint Coated Steel |
| Mounting System: |
Fixed on Ground |
| Tube Chip Color: |
Full Color |
| Display Function: |
Image & Text Display |
| Scanning Mode: |
Static Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
125 |
| Pixel Configuration: |
4r4g4b |
| Pixel Density: |
64 |
Product Description
Additional infromation:*Trademar: LEDSOLUTION
*Packing: Fumigation-Free Case/Flight Case/Carton Box
*Standard: CE, RoHS, ISO, UL, ETL
*Origin: Guangdong, China
*Production Capacity: 30.000PCS/Month

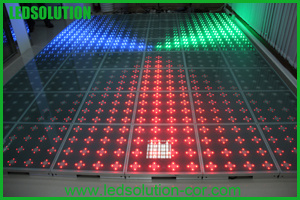

General:LEDSolution's Floor LED display perfectly shows amazing stage video for disco hall, night club, concerts, T-stage and event stage floor etc. On the upside of the floor LED display is the PVC, which has good anti-friction, thermostabilit and light transmittance; In the middle is the strip LED display, and the holder is made of aluminium alloy. So, it's very strong in structure, with the load bearing of 1, 500kg/sqm.
Features:* Fully Customizable
* Synchronizes to Music
* Displays major graphic formats
* Displays major video formats
* Video input for live cameras
| Parameter | Unit | Value |
| Pitch | mm | 16 |
| Brightness | nits | 1,800 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 100(-50~ +50) |
| Panel weight | kg | 28 |
| Panel width | mm | 768 |
| Panel height | mm | 768 |
| Panel depth | mm | 90 |
| Panel area | sq. m. | 0.59 |
| Panel material |
| Epoxy paint coated Steel |
| Load per square meter | Ton/m2 | 1.5 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| International Protection | IP | IP23 |
| Pixel type and configuration | R/G/B | 5050 SMD |
| Resolution per panel |
| 48x48 |
| Dot per panel |
| 2,304 |
| Dot per sq. meter |
| 3,906 |
| LED per sq. meter |
| 3,906 |
| Recommended minimum viewing distance | m | 12 |
| Colors |
| 281 Trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts | 200 |
| Input power (typical) | Watts | 80 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 625 |
| Green wavelength (dominant) | nm | 525 |
| Blue wavelength (dominant) | nm | 470 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Mounting System |
| Fixed on ground |
