| Prod Model: |
OTL10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| LED: |
DIP346 |
| Cabinet Color: |
Black |
| Cabinet Material: |
Fe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
ETL |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| Pixel Density: |
10,000 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
Front IP65 / Rear IP43 |
Product Description
Application: Public signal publishing platform, Traffic monitor scheduling, military commanding agency, Video meeting system, television studio, senior market and so on.
R&D background: With the development of the ultra high light LED display may use in the outdoor environment and extensive area no gap connection technology improve. The LED display will be applied more extensive in the major fairs just like the Beijing Olympic Games, Shanghai World Expo, Guangzhou Asian Games and so on.

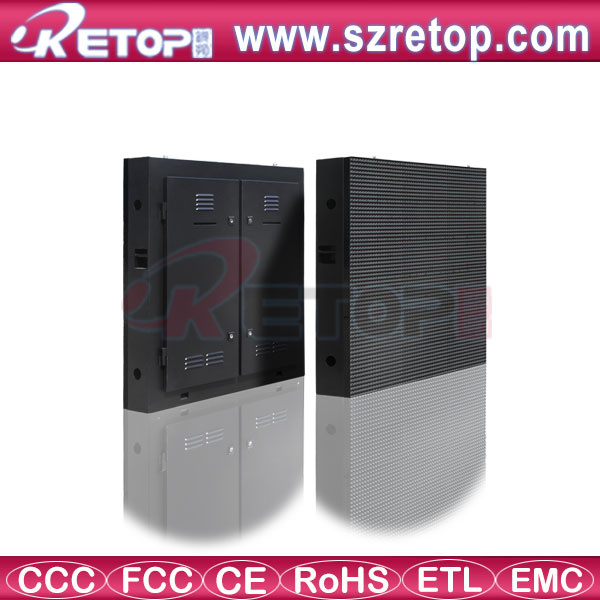

| P10mm outdoor full color LED display |
| LAMP | LED Type | DIP Lamps |
| Wave length | R: 620 nm |
| G: 526 nm |
| B: 464 nm |
| Brightness | R | R: 1095-1204 mcd |
|
|
|
|
| G: 2347-2582 mcd |
|
|
| B: 422-464 mcd |
|
|
| BOARD | Pixel configuration | 1R1G1B |
| LED driving method | 1/4 dynamic scan |
| Pixels | 32 | * | 32 | (W*H) |
| Pixel pitch | 10 | mm |
| Led board size | 320 | mm | * | 320 | mm | (W*H) |
| MODULE | Led boards | 3 | * | 3 | (W*H) |
| Pixels | 96 | * | 96 | (W*H) |
| Module area | 0.92 | m2 |
| Module size | 960 | mm |
| * | 960 | mm | (W*H) |
|
|
| Net weight |
| kg | (Fe) |
|
|
|
|
| Power | AC220/110 ± 10%, 47~63Hz |
| Water proof | N/A |
| Serviceability | Rear service |
| DISPLAY | Max. power consumption | R | ≤ | 810 | W/m2 | N | ≤ | 1010 | W/m2 | C | ≤ | 850 | W/m2 |
| Avg. power consumption | ≤ | 284 | W/m2 | ≤ | 354 | W/m2 | ≤ | 298 | W/m2 |
| Max. current (208V 60Hz) | ≤ | 4.33 | A/m2 | ≤ | 5.40 | A/m2 | ≤ | 4.54 | A/m2 |
| Hor. viewing angle(min 50% brightness) | 140° |
| Vert. viewing angle(min 50% brightness) | 140° |
| Brightness | ≥ 1000 cd/m2 |
| Pixel density | 444,444 | /m2 |
| Power factor | > 0.9 |
| Certifications | UL, CE, ETL, ROSH, CCC |
| Contrast ratio | 3000: 1 |
| Operating temperature | -20º C to +60º C |
| Operating humidity | 20% to 90% |
| Lifetime (50% brightness) | 100, 000 hours |
| Processing | 164 bit |
| Colors | 281 trillion |
| Refresh rate | ≥ 2400 Hz |
| Frame rate | 60 fps |
| Brightness level | Manual 100 levels, automatically 16 levels.
|
Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.
Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
