| Prod Model: |
HX-P10-R-OD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320mm X 160mm |
| Brightness: |
≥3000CD/Sqm |
| Pixel Pitch: |
10mm |
| Warranty: |
2 Years |
| Lifetime: |
More Than 100,000 Hours |
| LED Light Source: |
Small Straw Hat |
| Emitting Color: |
Red |
| 1 LED Power: |
<0.3W |
| Power: |
15W |
| LED Chips: |
Epistar |
| IP Rating: |
IP67 |
| Waterproof: |
Waterproof |
Product Description

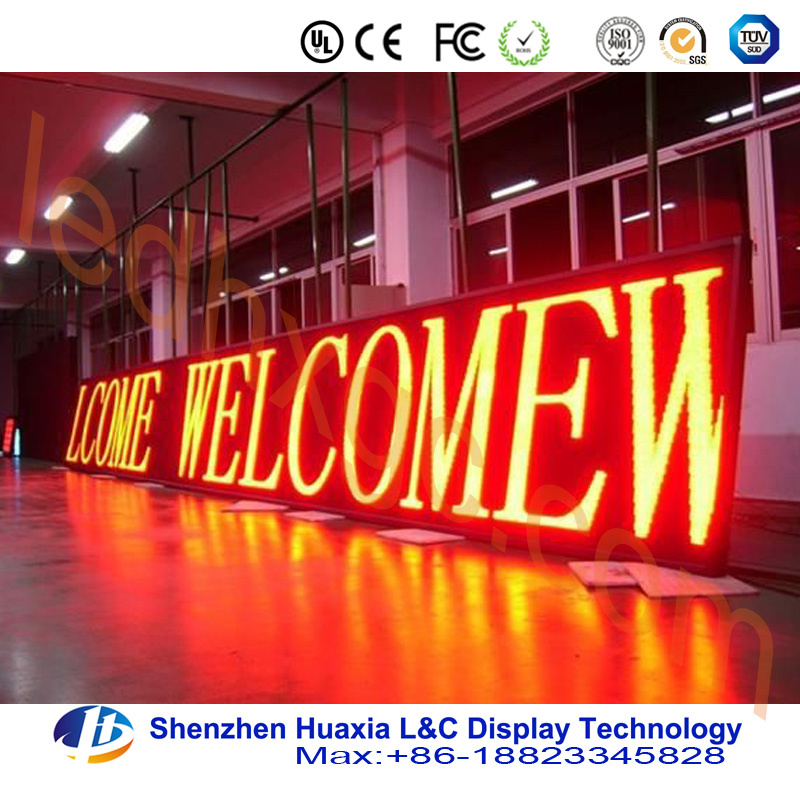

320mm*160mm P10 Outdoor Single Color LED Display
1) New style module mast can improve 10% brightness than normal module mask to realize more clearer text and images with stronger feeling of layers.
2) With Powerful and experienced engineers and technician team, with advanced production equipment, we control all steps from material to mass product, from design to produce that guarantee the quality and reliability.
3)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal.
4) High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
5)The brightness can be adjustable to meet the need of changing requirement of customer in environment.
6) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
7) High reliability: Using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.
9) Convenient installation and maintenance of display modules.
| Pixel Pitch | 10mm |
| Pixel Density | 10000 pixesl/m2 |
| Pixels Composition | 1Red/1Green/1Yellow/1White/1Amber/1Blue |
| Module Resolution(H× V) | 32 pixels × 16 pixels |
| Module Dimension(H× V) | 320 mm × 160 mm |
| Brightness | 3800 cd/m2 |
| Optimal Viewing Distance | > 10m |
| Avg. Power Consumption | 150 w/m2 |
| Max. Power Consumption | 350 w/m2 |
| Max Colors | 256 GRAY |
| Optimal Viewing Angle | H< 110° , V< 60° |
| Scan Mode | 1/4 Scan, Constant Voltage |
| Inputting Voltage | 220V or 110V |
| LED life span | 50, 000 - 100, 000 hr |
| Operating Temperature | -20° C~+60° C |
| Ingression Proof Grade | IP65 |
| Signal input format (with video processor) | AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI |
| Operating system | Windows (2000/XP/Vista) |
| Control distance | CAT5 cable: < 100 m; Single |
