| Prod Model: |
LW-FO 10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP Grade: |
IP65 |
| Outdoor: |
1r1g1b |
| At Any Dimention: |
Permanent |
| Silan+Opto: |
Fixed |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
Product Description
Features:
1, Metal plate material cabinet at your will .
2, Fast delivery time, about 10 days.
3, Competitve prices witg good performance .
4, Long life-span.
5, More options according your site(The models as before ).
Items | LW-FO6-S | LW-P8-FO | LW-P8-FO | LW-P10-FO | LW-P16-FO |
Pixel
Configuration | 1R1G1B
SMD3535 | 1R1G1B
SMD3535 | 1R1G1B
DIP246 | 1R1G1B
DIP345 | 1R1G1B
DIP345 |
| Pixel Pitch | 6mm | 8mm | 8mm | 10mm | 16mm |
| Pixel Density | 27,777 | 15,625 | 15,625 | 10,000 | 3,906 |
Module Size
(mm) | 192x96
or 192x192 | 256x128 | 256x128 | 160x160 | 256x128/256x256 |
| Pixels/Module | 32x16 or 32x32 | 32x16 | 32x16 | 16x16 | 16x8/16 |
Cabinet Size
(mm)(WxHxD) | 960x960x190 | 1024x1024
x190 | 1024x1024
x190 | 960x960x190 | 1024x1024
x190 |
| Pixels/Cabinet | 160x160 | 128x128 | 128x128 | 96x96 | 64x64 |
| Cabinet Weight | 42KG | 48KG | 58KG | 51KG | 58KG |
| Brightness | >6000cd/ | >5000cd/ | >7000cd/ | >7000cd/ | >7000cd/ |
| Viewing Distance | >6m | >8m | >8m | >10m | >16m |
Power
Consumption
(W/) | Max: 1300
Ave: 260 | Max: 1000
Ave: 260 | Max: 1000
Ave: 300 | Max: 1000
Ave: 300 | Max: 1000
Ave: 200 |
| Driver Mode | 1/4 scan | 1/4 scan | 1/4 scan | 1/4 scan | Static Latching |
| Viewing Angle | H: 120°; V: 120° | H: 110°; V: 60° |
| Cabinet Material | Cold Rolled Steel or aluminum |
| Refresh Rate | 300-3000HZ adjustable |
| LED Life | 100,000 hours |
| Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature | -20ºC ~ +50ºC |
| Operating Humidity | 10% - 90% |
| Gray Scale | Red, Green and Blue each 16K |
| Display Color | 4096 Billion |
| IP Rating | Front IP65 |
| Display Capability | Text, Graph and Video |

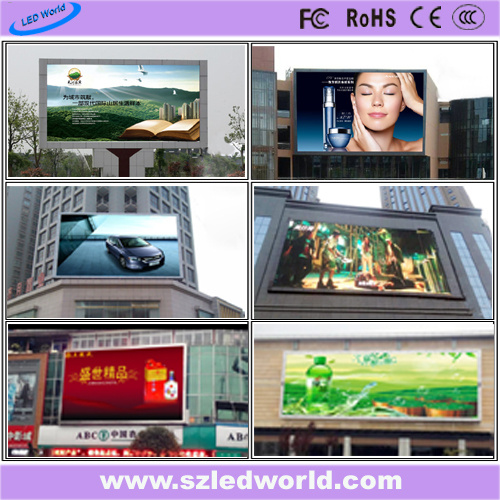

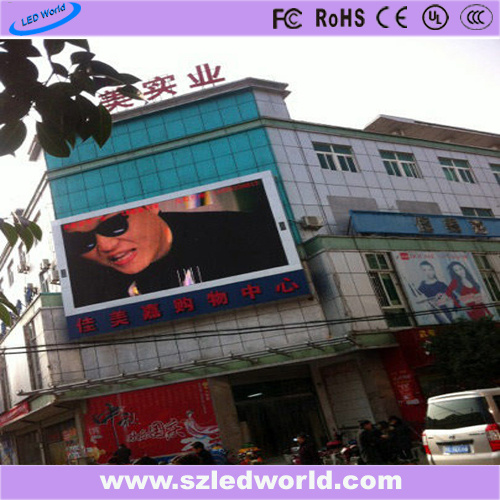

project case:

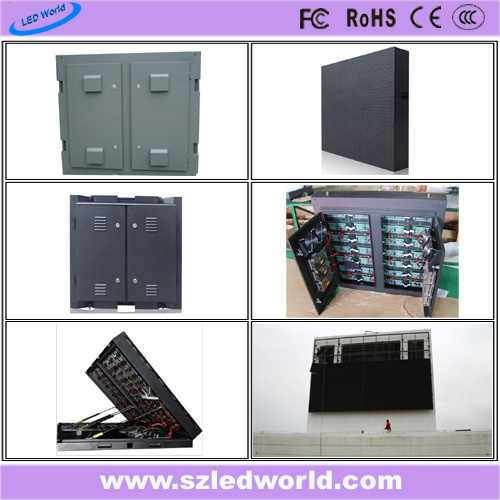

product detail:

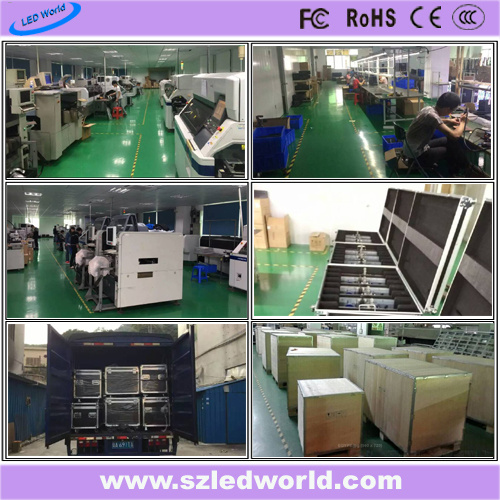

workshop and package:
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.
LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.
Warmly welcome you visit our company to innovate and win glory together.
