| Prod Model: |
CM003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Material: |
Stainless Steel |
| Usage: |
Advertising |
| Shape: |
Rectangle |
| Type: |
LED Display |
Product Description

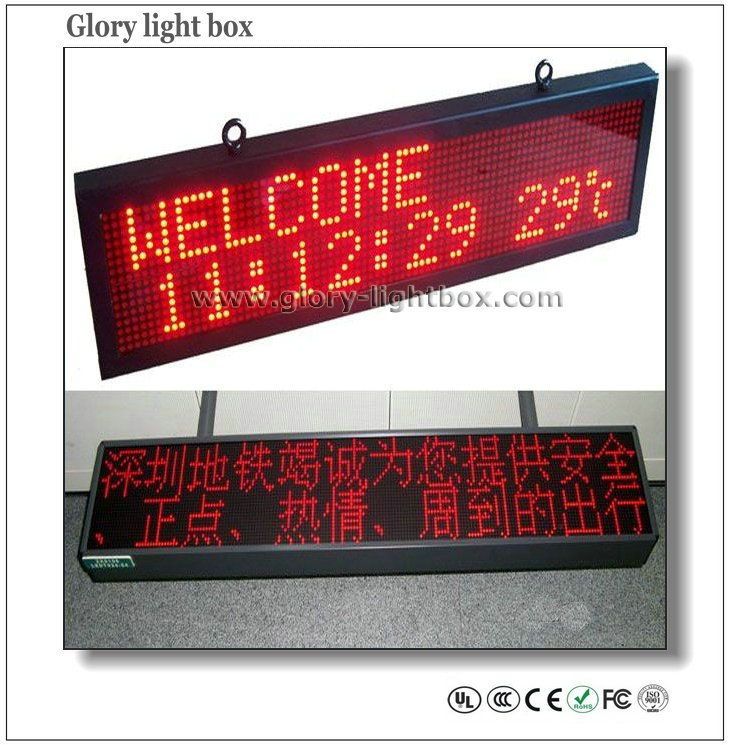

Product: P10 LED display/High definition LED display advertising screen/ waterproof large size LED display screen/indoor full color LED display screen/Excellent resolution P16 outdoor electronic LED display screen
Specification:
1)Size: OFP10, OFP12, OFP12.5, OFP16, OFP20, OFP25, OFP31.25 etc
2)Quality: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability
3)Display: Mounted inside wall, fixed on the grond, Hanged-up, supported by two pillars, mounted onto wall, supported by one pillar
4)Package: Babble inside, wooden case outside
5)Delivery time: 15-20 business days after deposit
6)Guarantee: 2 years
| Description | Technical parameter |
| Unit module | Module size | 256*128mm |
| Pixel pitch | 16mm |
| Pixel density | 3906dots/m2 |
| Pixel configuration | 2R1G1B |
| Led specification | 346 DIP |
| Pixel resolution | W: 16dots*H: 8dots |
| Cabinet | Dimension | 1024mm*768mm*185mm |
| Quantity of module | 24pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 50kg |
| Best viewing angle | 16-300m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-320W |
| Max. Power consumption | ≤ 320W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 1800cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
|
| Software | LED studio |
