| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160mm*160mm |
| Cabinet Size: |
960mm*960mm |
| Brightness: |
1900CD |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/4 Scan |
| System Operating Platform: |
WIN2000 |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP40 |
| Certification: |
ETL |
Product Description

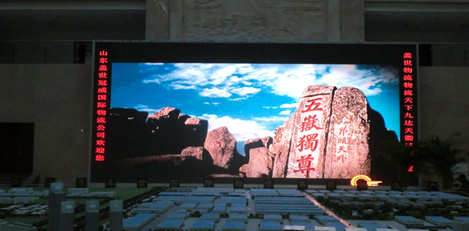

P10 Indoor Full Color LED Display
1. Large viewing angle
2. Light weight
3, ISO9001,CE , CCC,ROHS Certificates
4.Long lifespan
5.High brightness
Specification
Item | Parameter |
| Real Pixel pitch | 10mm |
| Pixel composition | 1 red, 1 green and 1 blue LED |
| Module | Module resolution | 32 x16 =512pixels |
| Module size | 320mm x160mm |
| Cabinet | Cabinet size | 960mm x960mm |
| Cabinet resolution | Real pixel: 9216pixels |
| Cabinet materials | Cold rolled steel (mixed Iron & steel) |
| Screen | Physical Resolution /sqm | 10000pixels/sqm |
| Brightness | ≥ 1900cd/sqm |
| Brightness adjustment | 256 level automatically |
| Scanning method | 1/4 scan |
| Drive methods | Constant current drive |
| Best Viewing angle | Horizontal: 100 degrees, vertical: 45 degrees, |
| Refresh rate | ≥240Hz |
| Control method | Synchronized with computer monitor |
| Lifetime | > 100, 000 hours |
| Defects rate | ≤ 0.0002 |
| Operating voltage | AC220V± 15% , 50/60HZ |
| Screen power consumption | Max: 1000w/sqm; Average: 800w/sqm |
| Control distance. | 100 m(no repeating) by net line; Optical fiber: 500m- 10km |
| IP level | IP65 in the front, IP54 at the back |
| Operating temperature | _ 35degree--+85degree |
| Operating ambient humidity | 10%_ 50%RH |
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 1years
6. Delivery time: 3-12 working days
Quanzhou Jiacai Electronics Co., Ltd is a hi-tech company which is located in Fujian Quanzhou. Our factory is founded in 2006, coving an area of 175000 squar meters, with 35PCS producton lines for out door DIP modules, 6PCS production lines for indoor SMD products and more than 1600 skilled workers
Our RD team is composed by experienced experts, specialists and engineers, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients.
Our main products include indoor LED display, outdoor LED display, LED module, LED panel, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events. All our products have passed CE, FCC and RoHS certificates. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 1 years warranty
We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
