| Prod Model: |
P10 outdoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
IP 65, Water Proof, Dust Proof |
| Compatibility: |
PC, Video Processor, Camera, I-Pad, etc. |
| Control: |
PC Control in Real Time |
| Power Input: |
AC 220V/50Hz; AC 110V/60Hz, ± 10% |
| Pixel Configuration: |
1r1g1b |
| Weight: |
60 Kg/M2 |
| Chip Brand: |
Epistar / Opto & Silan |
| Signal Port: |
Rj 45 |
| Resolution: |
10, 000 Pixels/M2 |
| FOB Port: |
Shenzhen |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
Product Description

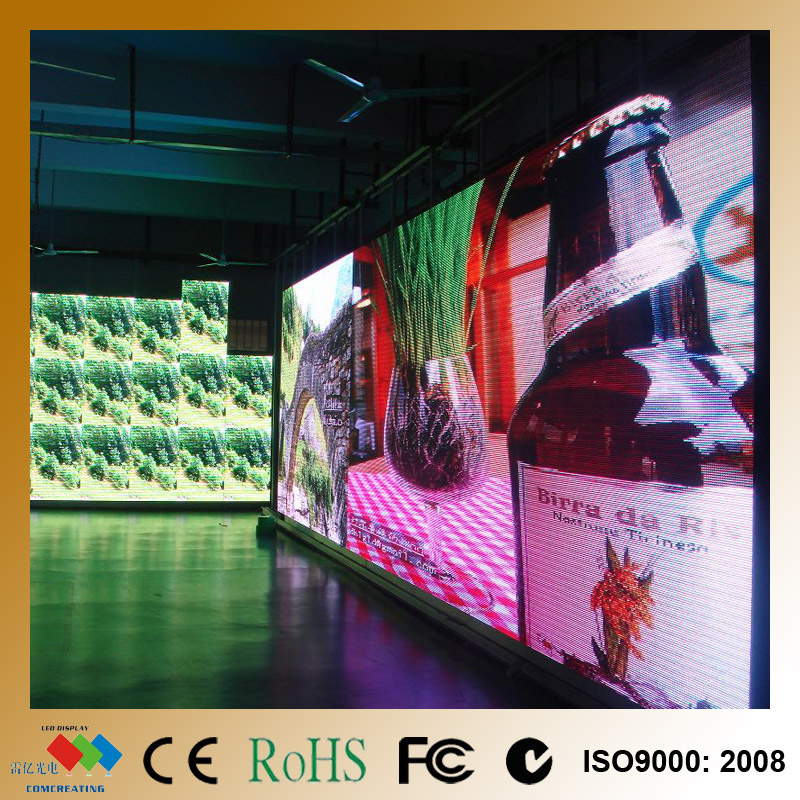

P10 high definition LED video display
1. CE. RoHS. FCC. C-Tick authorized;
2. ISO9001: 2008 QC system;
3. 100.000 hours life span;
4. Water proof. Dust proof;
5. AC 90V to 240V power input;
6. Video. Flash. Animation. Graphic. Text available;
7. PC controlled in real time;
8. Installation structure drawing offered FOC;
9. Easy for installation;
10. 2 years warranty offered;
11. 1% spare parts offered FOC;
12. Training in our factory offered FOC;
13. On-line remote service is available;
14. EXW. FOB. CIF accepted;
15. Factory visiting and inspecting is welcome;
16. OEM service offered;
17. Models available:
P4mm. P5mm. P6mm. P7.625mm. P8mm. P10mm. P12mm. etc. For indoor use;
P10mm. P12mm. P16mm. P20mm. P25mm. P31.25mm. etc. For outdoor use;
| LED Specification |
| 1 | LED Chip Brand | Red: Opto / Epistar
Green & Yellow: Silan |
| 2 | Wave Length (nm) | R: 625nm;
G: 525nm;
B: 470nm |
| 3 | Pixel Configuration | 1R1G1B |
| Module & Cabinet Specification |
| 4 | Physics Distance Between Pixels | 10 mm |
| 5 | Physics Pixel Density | 10, 000 Pixel/m² |
| 6 | Module Dimensions (W x H) | 160mmX160mm |
| 7 | Physics Pixel / Module | 16 x 16 = 256 |
| 8 | Cabinet Dimensions ( W x H xT) | 960mm X 960mm X 190mm |
| 9 | Physics Pixel / Cabinet | 96 x 96 = 9216 |
| 10 | Cabinet Weight | 55 kg |
| 11 | Cabinet Material | Steel Cabinet / Aluminum Cabinet |
| 12 | Cabinet Frame | Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use) |
| Screen Specification |
| 13 | Brightness | 6500 cd/m² / 8500 cd/m² |
| 14 | Viewing Distance (min, max) | 4 - 300m |
| 15 | Power Consumption / Screen | MAX : 1000 w/m² ;
Average: 300 w/m² ; |
| 16 | Drive Mode | 1/4 scan, constant current driving |
| 17 | Refresh Rate | 600 HZ |
| 18 | Frame Rate | 60HZ |
| 19 | Display Flatness | 0.5mm |
| 20 | Maintenance | Back maintenance, replace the module |
| 21 | Led Life Span | 100, 000 hours |
| 22 | Supply Voltage | AC220V/50HZ, ± 10%;
AC110V/60HZ, ± 10% |
| 23 | Operating Temperature | -20º C~+50º C |
| 24 | Operating Humidity | 10%-90% |
| 25 | Storage Temperature | -40º C~+60º C |
| 26 | Viewing Angle | Horizontal: 120° ; Vertical: 65° |
| 27 | Grey Scale | Red, green, blue each 16k |
| 28 | Display Colors | 4096 Billion |
| 29 | IP Rating | IP65 water proof, dust proof |
| 30 | Aging Time in Factory | More than 72 hours constantly |
| Control |
| 31 | The Software | LED Studio |
| 32 | System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
| 33 | Control Mode | Real Time Control (Synchronous) |
| 34 | Display Capability | Flash, Video, Graphic, Text |
| 35 | Signal Supported | RGB, VGA, DVI, etc. |
