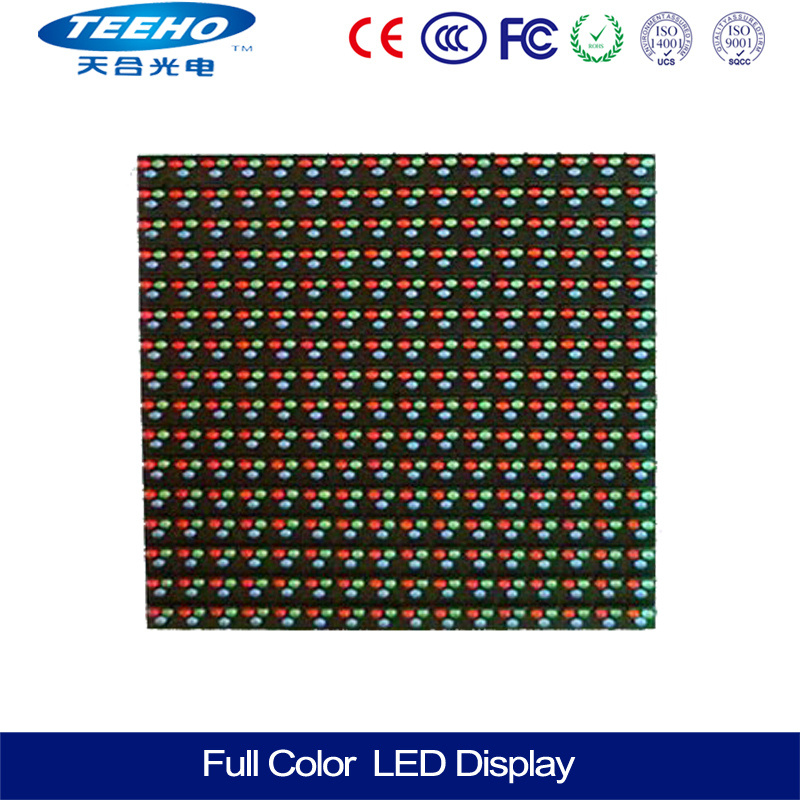

P10 Full Color Outdoor LED Display

P10 Full Color Outdoor LED Display
Price: US $ 7.5/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: PAO-10-4S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 160mm X 160mm
Cabinet Size: 960mm X 960mm X 130mm
Module Resolution: 16X16
Cabinet Resolution: 96X96
Brightness: 7500 CD/Sq.M
Grey Processing: 16 Bit
Contrast: 2000:1
Refresh Rate: >2000 Hz
Working Voltage: AC 85-265V
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 600W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: ETL

Product Description

TEEHO OPTOELECTRIC
P10 Full Color Outdoor LED Display

Application

Stage & Rental
Stadium Project
Municipal Project
Advertising & Media
Meeting & Exhibition
Commercial Property
Broadcast & TV Project


Product  Specification
1Pixel Pitch10mm
2Pixel Configuration1R1G1B/DIP346
3Density10,000 pixel/m2
4Module Size(L×W)mm160mm×160mm
5Cabinet Size(L×W×H)mm960mm×960mm×130mm
6Module Resolution16×16
7Cabinet Resolution96×96
8Driving Method1/4 Scan
9Driving ICMBI 5041
10Brightness7500CD/m2
11Contrast2000:1
12Brightness AdjustmentAuto and Manual
13Power ConsumptionMax Power:<1000W
Average power: <400W
14Cabinet Weight<32kg/m2
15Color Temperature3200K-9300K
16Horizontal Viewing Angle120º
17Vertical Viewing Angle120º
18Grey Processing16 bit
19Control DistanceCable100m,Multimode500m,Single mode 2km
20Frame Frequency65 Hz
21Refresh Rate>2000Hz
22Working VoltageAC85-265V
23Control ModeSynchronous/Asynchronous
24The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
25MTBF(Mean Time Between Failures)>50000 hours
26Life Span100,000 Hours
27Operating TemperatureWorking : -20 - 65 ºC
Storage : -40 - 85 ºC
28Environment Temperature-30ºC to 60ºC; humidity Rh10% to 95%
29Remote ControlCan realize remote control and send alarm signal to operators in case of failure logging (Be customized)
30Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (customized)
31Operating System PlatformWindows NT,Windows2000,Windows XP,Windows7
32ProtectionWaterproof, dustproof, high temperature prevention, anticorrosion, smoulderproof, anti-static, shockproof, lightning proof, smoke alarm and temperature alarm. (customized)
33Descriptions1.This product is wide applied to advertising media, government projects
2.Protection Level:IP65
3.Designs of cabinet sizes are based on installation sites/screen sizes
4.The parameters above are actual tests.
34Warranty24 months
