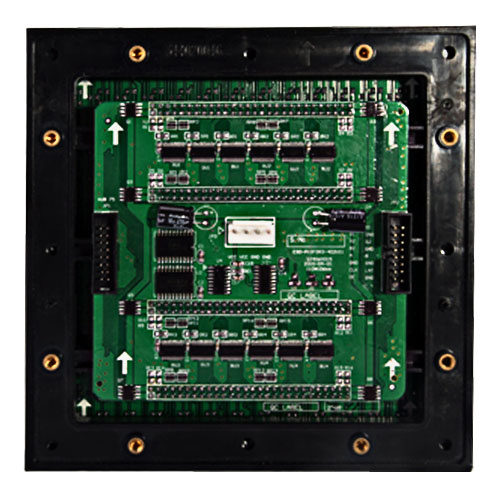

P10 Energy-Saving Product LED Display

Prod Model:	P10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifespan:	100,000 Hours
Warranty:	2~3 Years
Factory Price:	Available
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Certification:	CCC
Pixel Pitch:	10mm
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Pixel Density:	10000 dot / m²
Application:	Advertising/Image/Text
Average Power Consumption:	260W/M2

Product Description

P10 energy-saving product  LED display

specifications:

Part Number	HERO-OD
Resolution	16(H)×16(V)
Pixel Pitch	10mm
LED Configuration	1R1G1B DIP346
Pixel Density	10000pixels/ m2
Module Size	160*160mm
Driving IC	MBI 5024
Driving Method	Static Scan, Constant Current
Cabinet Weight	65kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	±0.25mm
Optical Ratings
Brightness	≥7000cd/ m2
View Angle	110°/70°
Gray Scale	16bits
Display COLOR	281trillion
Brightness Adjustment	0~100%
Power Supply
Operation Power	AC220V/50HZ or AC110V/60Hz
Max. Power Consumption	520W/ m2
Average Power Consumption	260W/ m2
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85Hz
Screen Refresh Frequency	300~1000Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	10000hours
Protection Level	~
Out of Control Rate	<0.02%

Description:
1,constant current,noise reduction technology,LED display driving chip adopt advanced LED display chip system,which is the first-class in the LED filed,from features of such driving chip,constant current noise reduction technology is created to ensure that the effect of other noise source to LED display is the lowest.
2,brightness adjustment technology,to adapt to weather,LED display designed 256 brightness adjustment device to make sure LED display achieve best display effect,it makes LED display has best display effect in any environment.
3,strong convection type heat-extraction system,LED display body give out lots of heat when LED display is working,to ensure the whole LED display system work stably,a strong convection type heat-extraction system is  created after researching it's heat-extraction,because of heat transmission of aluminum,heat-extraction system is more stable,ultra-low energy consumption and advanced electronic circuit make it save 60% energy,comparing with traditional LED display.
4,exclusive custom adjust measures to local conditions to meet difference creative display requirements.


Applications:
Widely used in  stadium,square,billboard,business street,shopping malls,commercial centers,railway station,subway station,hotel,supermarket,store,hospital,restaurant,bank and other advertising.


Packing and transportation:
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero;
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service:
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
