| Prod Model: |
P10 |
| Brightness: |
5800CD |
| Weight: |
0.7kg |
| Drive Mode: |
1/4 Scan Constant Voltage |
| Life Span: |
10000h |
| Viewing Angle: |
H: 110 V: 55 |
| Working Voltage: |
AC110V/220V |
| Best Viewing Distance: |
10-100m |
| Working Humidity: |
10%-90%Rh |
| Tube Chip Color: |
Dual-color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Display Function: |
Text Display |
| Average Power Consumption: |
600W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Application: |
Advertising |
| Certification: |
Bis |
| Pixel Configuration: |
1r1g/1r1b |
| Display Type: |
LED DIP Module |
Product Description
P10 Double Color LED Display Module 2016 1.High quality best price
2.Since 1998
3.OEM
4.professional factoryP10 Double Color LED Display Module Parameters| Data Sheet |
| Unit module | PCB | 1 layers |
| Module size | 320mm(W)*160mm(H) |
| Pixel pitch | 10mm |
| Pixel Density | 10000dots/m2 |
| LED specification | ø5 ellipse |
| Pixel resolution | 32dots(W)*16dots(H) |
| Weight | 0.7kg |
| Optical parameter | Best viewing distance | 10~100m |
| Best viewing angle | 110°(H)/55°(V) |
| Pixel configuration | 1R1G |
| Brightness | 5800cd/SQM |
| Electrical parameter | Working voltage | 5V |
| Max Power consumption | 35W |
| Current | ≤20mA (single LED) |
| Driving device | IC Constant Voltage driver |
| Drive type | 1/4 Scanning |
| Refresh frequency | ≥60Hz |
| Control system | Control system | Single/dual color controller |
| Operating system | Windows |
| Control method | Asyn-synchronous control |
| Communication distance | ≤100m(UTP-5 CABLE) |
| Main technical parameter | Operating environment | Outdoor |
| IP Grade | IP65 |
| Storage temperature | -40°C~60°C |
| Working temperature | -35°C~60°C |
| Operation humidity | 10%~90% |
| MTBF | ≥10000 hours |
| Life span | ≥100000 hours |
| Malfunction dot rate | ≤1/10000 |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤0.6mm |
P10 outdoor LED display module for LED sign
P10 Double Color LED Display Module Product Features:
Ultrahigh definition display effect, 0.1mm high-precision splice seam
New structure design, meet the Hanging&wall mounted assembly requirements, and meet indoor & outdoor requirements
With ultra high refresh rate, to ensure clear text
Fast and convenient assembly and dismount system
P10 Double Color LED Display Module Range of Application
Widely used in the large meeting place, stadium, bank, post & telecommunication bureau, governmental organizations, terminal, wharf, station, securities market and other transaction markets, medical system, electrical power

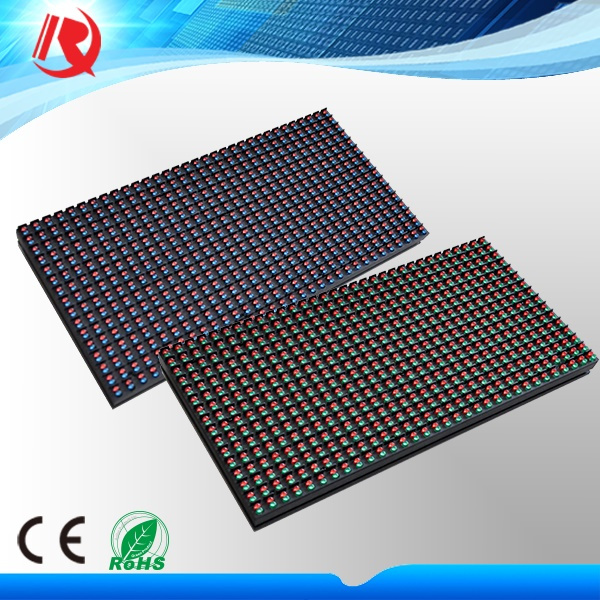

Product show

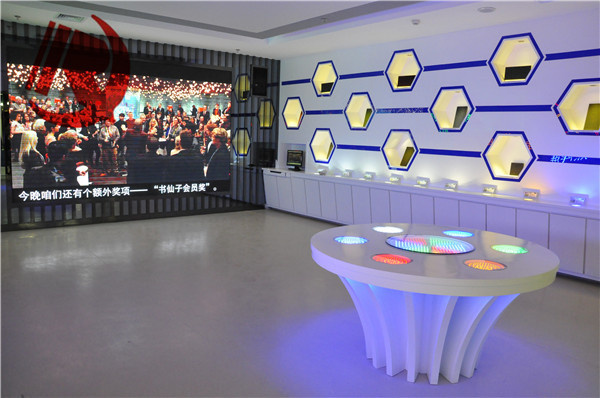

Exhibition Room

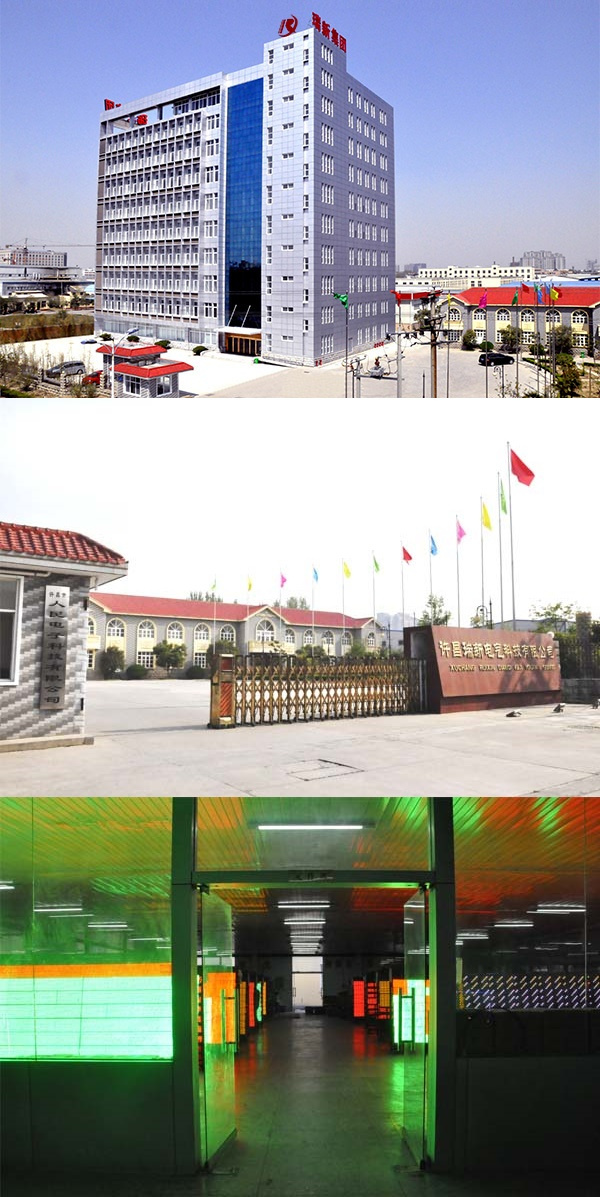

Factory Show

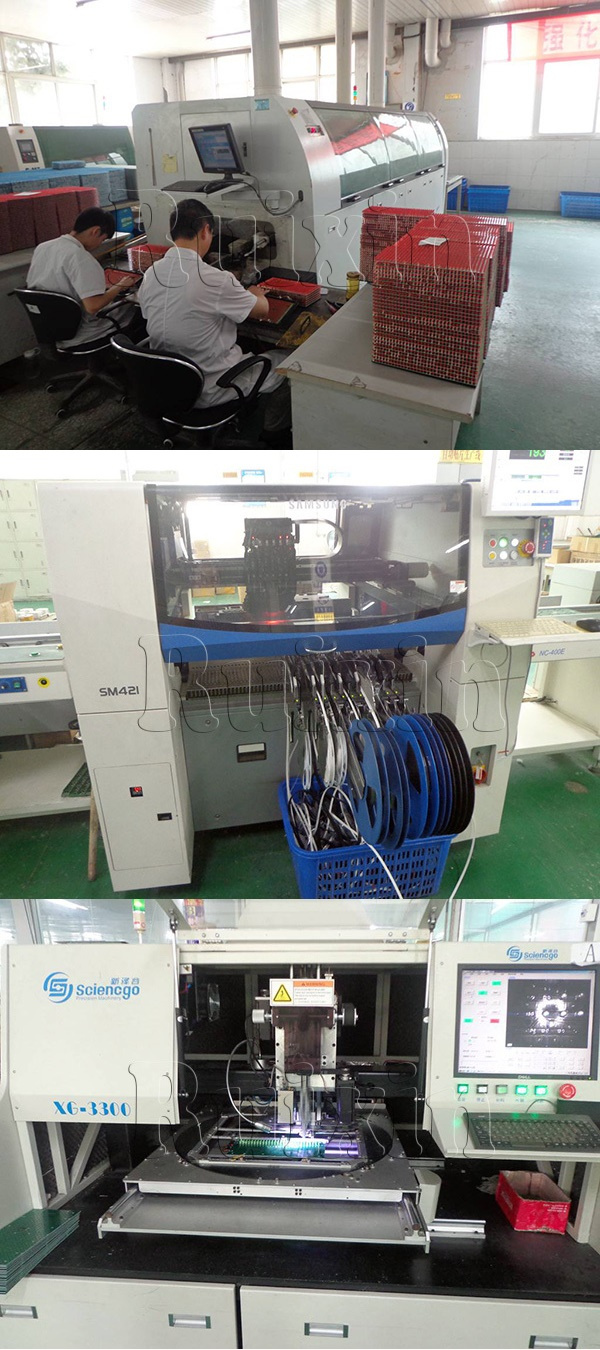

Production Line
Packing and shipping
Any Inquiry and Sample Order are Welcome
