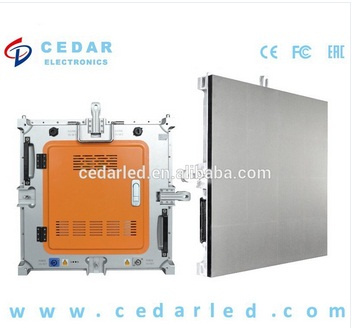

P1.5 COB LED Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Box |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
P1.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Calibration: |
DOT-by-DOT Calibration |
| Software: |
Matching Software |
| High Density: |
P1.5 |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Monitoring, Education, Conference, Transportation |
| IP Rating: |
IP54 |
| Certification: |
FCC |
| Pixel Pitch: |
1.5mm |
| Pixel Density: |
444444 Pixel/M2 |
| Scanning Mode: |
1/32 Scan |
| System Operating Platform: |
All System |
Product Description
P1.5 High Density, Supper Clarity & Low Gray Level, Energy Saving for High Efficiency, Large Viewing Angle, High Uniformity, High Reliability, Excellent Color Mixing.
| Parameters | NP1.5-IM |
| Pixel | Pixel Set | RGB LED COB |
| Pixel Pitch(mm) | 1.5 |
| Pixel Density(Pixel/m2) | 444444 |
| Module | Module Resolution(W/Pixel × H/Pixel) | 160 × 160 |
| Module Size(W/mm × H/mm) | 240 × 240 |
| Cabinet | Cabinet Resolution(W/Pixel × H/Pixel) | 320 × 320 |
| Cabinet Size(W/mm × H/mm) | 480 × 480 |
| Cabinet Material | Aluminum Die-casting Alloy |
| Cabinet Weight(kg/Pcs) | 8.5 |
| Cabinet Area(m2) | 0.2304 |
| Screen Weight(kg/m2) | 37 |
| Cabinet Flatness(mm) | ≤0.2 |
| Maintenance | Backside Maintenance |
| Optical | Dot-by-Dot Calibration | Available |
| Brightness Balanced(cd/m2) | ≥600(@9300K, Cablibrated) |
| Brightness Adjustment | 256 Grades Manually / Automatically |
| Color Temperature(K) | 3000 - 10000 Adjustable |
| Horizontal View Angle( °) | 175 |
| Vertical View Angle( °) | 175 |
| Brightness Uniformty | ≥ 95% |
| Electrical | Max Power Consumption(W/Cabinet;W/m2) | 130/600 |
| Average Power Consumption(W/Cabinet;W/m2) | 40/200 |
| Input Voltage | AC110~240V(50-60Hz) |
| System Process | Driving Mode | Constant(1/20 Scanned) |
| Frame Rate(Hz) | 60 |
| Refresh Frequency(Hz) | ≥ 1200Hz |
| Grey Scale(Bit) | 14 /15/16 |
| Color Capacity(Trillion) | 4.4 /35/281 |
| Enviromental | Typical Lifetime(h) | 100000 |
| Protection | IP54 |
| Operating Temperature(ºC) | -10 ~ +40 |
| Storage Temperature(ºC) | 0 ~ +40 |
| Operating Humidity(RH) | 10% ~ 90% , No Condensing |
| Storage Humidity(RH) | 10% ~ 90% , No Condensing |
| Functional | Available for Dot-by-Dot Calibration |
| Available for Signal Dual Backup |
| Available for being controlled by Cedar RTM Software |
| Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP etc. |
| Most of parameters can be customized according to requirements or special enviroments |
Changchun Cedar Electronics Technology Co., Ltd is a professional LED display and LED lighting product manufacturer in China. Belong to CIOMP under Chinese Academy of Science, which integrates R&D, production, marketing, services and postgraduate education. It is a member of China Solid State Lighting Alliance (CSA) and director of LED Display Application Branch, COEMA.
Cedar Electronics has obtained over 60 patents in LED imaging and LED lighting techniques since its establishment in 2001. Its products have got Chinese 3C, CE, RoHS, UL, FCC and GOST-R Certifications.
Cedar Electronics owns 30, 000 square meter LED comprehensive experimental and producing base equipped with world-class facilities and fully automatic production lines and has established LED display and lighting product testing laboratories, such as luminosity distribution testing laboratory, high-low temperature and humid environment adaptability laboratory, electrical characteristics and optical component testing routine laboratory to ensure the quality of product. Cedar has formed a complete industrial chain from product R&D, device encapsulation, mold structure design, manufacture, inspecting & testing to installation and after-sale service.
For LED display, Cedar has three product types: Integrated 3-in-1, SMD, Individual Inserted Lamp. Cedar LED display product has unique advantages in brightness, uniformity, clarity, color richness, especially in large area display. LED display are widely used in outdoor advertising, television studio hall, public security, fire protection, hospitals, airport terminals, schools, railway stations, stadiums, large plaza and other public places.
For LED lighting product, Cedar has over ten product categories and thirty product types such as LED tube, bulb, candle, down light, spotlight, PAR light, panel light, ceiling light, high bay light and street light, etc. Its LED lighting products are widely used in industry, commerce, transportation and household field.
Cedar has successfully completed many LED display and LED lighting projects at home and abroad, domestic projects such as Shanghai Jinmao Tower, the National Grand Theater, Shanghai World Expo, Shanghai Metro, Beijing Metro, Beijing -Shanghai Express Railway, Beijing-Shenyang Highway etc.; Abroad projects such as Maryland church-USA, Stellar Wholesale City-South Africa, Moscow Chain Supermarket-Russia, Belarus Homeland Company Advertising Screen.
Cedar export markets include Russia, Belarus, Ukraine, USA, Canada, Italy, Japan, Indonesia, UAE, Iran, and South Africa.
Cedar dedicates to make world-class product and provides professional LED solutions for customers with all-round supporting service.
