| Prod Model: |
SY-G280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industry |
| Purifying Technology: |
Ozone |
| Type: |
Ozone |
| Certification: |
CE |
| Structure: |
as Part |
Product Description

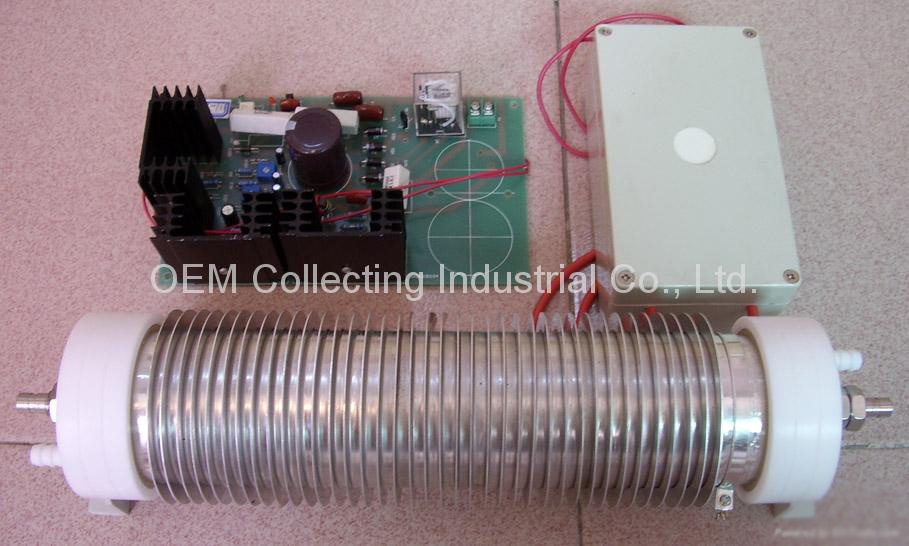

Item: Ozone Generator Air/Water Purifier (SY-G280)
Model No.: SY-G280
Input: AC220V/50Hz
Pipe: 400x80x110mm
Power: 320x210mm
Cooling: Air/Water Cooling
Interface Sizes: %10mm
Water Flow: 5 L/min
Power: 280W
Ozone Adjustable: Standard or adjustable
Oxygen In 0.24m3/h: Ozone output 20300mg/h
Oxygen In 0.48m3/h: Ozone output 33200mg/h
Oxygen In 0.72m3/h: Ozone output 35000mg/h
Oxygen In 0.96m3/h: Ozone output 38400mg/h
Oxygen In 1.23m3/h: Ozone output 40300mg/h
Ozone Generator Major Characteristics:
(1) High Efficiency: 800-1000G/M2, 4-5 times more than the common ozone generators
(2) Low Output: High frequency corona discharge, the consume rate of 8-10KW. H/kg O3
(3) Small Sizes: Save your space, the cubage is 1/4 to 1/3 than common ozone generators at the same output
(4) Very Long Life, Non-Coorode, Non-Oxygenization, High Temp. Resistance: Imported material to be sintered into the high purified ceramic, 316 stainless inner electrode and tighten firmware, polytetrafluorethylene/Teflon, high purified silicon rubber material, all the pipes equipped with radiator slice, 10 years normal life
(5) No Break: The generating pipe with the working voltage of 10% of the Breaking voltage, high non-conductivity rate, low power
(6) Effective Cooling Systems: There is outer air cooling and inner water cooling combination, low degradation rate at continuous working
(7) Good Voltage Flexibility: 50V to generate ozone and 200V to get the efficiency, convenient to adjust the ozone levels
(8) Save Oxygen Source: High ozone density/output and save the oxygen cost
With the life improving people are taking more and more attention on the environment and health. Like the food we eat, the water we drink and the air we breathe has a great impact on our health. Obviously, we have a concern that our survival depends on the availability of clean air and water, and the OCIC series air/water purifiers will just satisfy you by reducing many pollutants, bacterias and virus etc.
OEM Collecting Industrial Co., Limited has been experienced the ozone industry for more than 10 years. Now we're dedicated to enhancing your life by providing with many environmental and healthy products, ranging from Ozone Air Purifiers, Ozone Water Purifiers, Anion Generators, Ceramic Ozone Generators, Ozone Accessories, and Ion Foot SPA to other consumer electronics with high quality nice designs.
We are not only an supplier/exporter, with years of experience we have been always working to meet the customers' unique OEM/ODM requirements by our strong R&D teams and high efficiency production lines.
We are devoted to the goal that "Anywhere, Anytime, You Can Breathe Fresh Air and Drink Soft Water"! We believe our products and service will center here and radiate the global!
If you need any assistance or information related please feel free to Contact us by email, we have professional staff to reply you in 24 hours or call us directly.
