| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size : 256*128*25: |
LED Lamp DIP346 |
| Display Type: |
LED Dot Matrix Display |
| Tube Chip Color: |
Dual-color |
| IP Rating: |
IP54 |
| Certification: |
CCC |
| Pixel Pitch: |
16mm |
| Display Function: |
Text Display |
| Scanning Mode: |
Static Scan |
| Pixel Configuration: |
2r 1g |
| Application: |
Traffic |
| Pixel Density: |
3906DOT / Sq.M |
| Average Power Consumption: |
352W / Sq.M |
Product Description

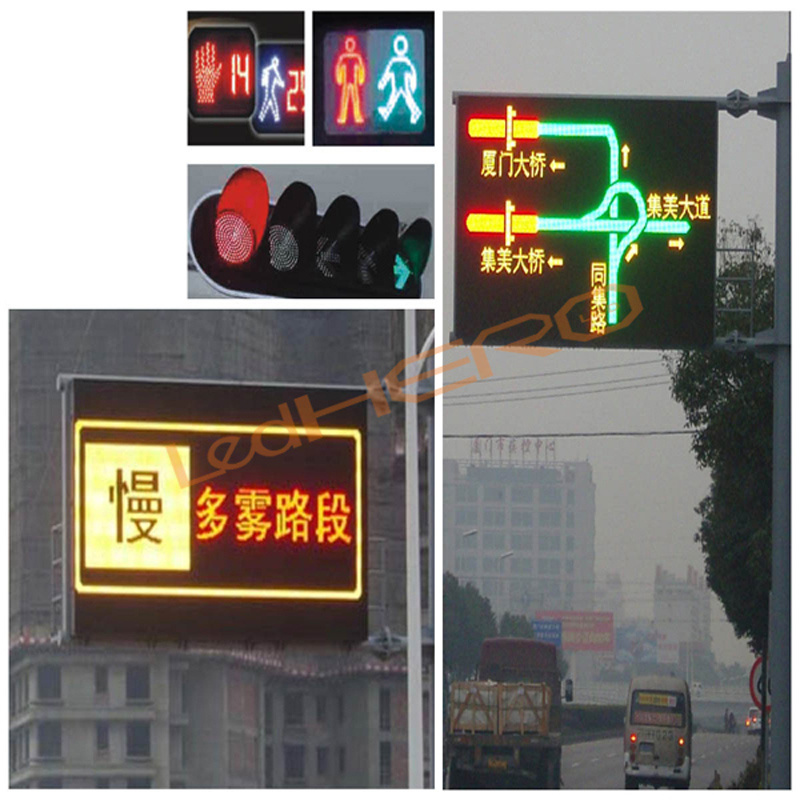

Outdoor traffic led display
Functions of traffic guidance led screen
1.According to monitoring data provided by mount control system linked with CCTV system, it can release traffic illegal information in scope of jurisdiction ,such as over speed, running a red light,ect.
2.IT can be used as information board on highway,providing current traffic jam,reducing traffic accidents.
3.It can show some traffic signal and signs.
4.As a guidance of roads, it can avoid that people lose their ways and decrease traffic jam,reducing traffic accidents.
5.It provide traveler with the best route to destination.
6.Release some friendly reminder,such as ,caution notice, be careful,don't drive fatigue,etc.
Features
Traffic led display contain photosensitive control system and it can adjust the brightness automatically
according to outdoor environment .It's 1/3 energy-saving and environment-protect.It reduces the cost greatly and makes viewing effect better.
1.With high refresh rate and gray scale,deliver vivid picture.
2.Program of advertisement in display is changeable. It can display 24/7.
3.Support double signal cable for hot backup.When one network cable break off,another one will work
automatically.
4.It adopt highly efficient fiber-optic transmission system to reduce signal delay of decline,which ensure the consistency of the display.
5.Controlled by remote IP and Clustered-Control.
Product parameter
| Pixel pitch | 16 mm |
| Module size | 256*128*25mm |
| LED lamp | DIP 346 |
| Refresh rate | Over 600 HZ |
| Viewing angle | H110dgree V70dgree |
| Flatness | More or Less 0.25mm |
| Pixel configuration | 2R 1G |
| Module resolution | 16*8 |
| Scanning | Static constant current |
| Max power consumption | 880 w/sq.m |
| Viewing distance | Ove 16 m |
| Installation method | fixed installation |
| Pixel density | 3906 dot/sq.m |
| Module weight | 0.6 kg |
| Brightness | 8500-10500cd/sq.m |
| Average power consumption | 352w/sq.m |
| Screen weight | 65kg/sq.m |
| Control method | asynchronous |
Package and transportation
Professional package: wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation,
which faultlessly solve your worries about goods damage.
About Led-Hero
With7year experience in LED display industry, our factory has the ability of processing, researching and
developing led display to ensure prolificacy .A strict quality control process make sure that our led
displays are of high quality.
After-sale service
1) Warranty:
Free to solve quality problems to ensure normal operation of led display in the warranty period . If the
problem is from the product itself, we bear all the responsibility at any time.
2) Free maintenance:
If led display can't work,our company repair the broken parts and only charge cost of necessary raw
materials in the warranty period.We provide spare parts and maintenance for the lowest price after the
warranty period.
3)Quick response:
Respond within 2 hours,non-artificial and general fault be solved within 48 hours.
4) Free support:
Provide service support in real time by telephone or internet. With the help of network, we give clients
remote debugging support (software) to solve the problem.
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
