| Prod Model: |
Outdoor Advertising Double Color LED display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Dual-color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Display Function: |
Text Display |
| Scanning Mode: |
1/2 Scan |
| Display Type: |
LED Dot Matrix Display |
| Application: |
Shopping Guide |
| Certification: |
ETL |
| Pixel Configuration: |
2r1g |
| Average Power Consumption: |
7W; 15W |
| Pixel Density: |
3906 Dots/Sq.M |
Product Description

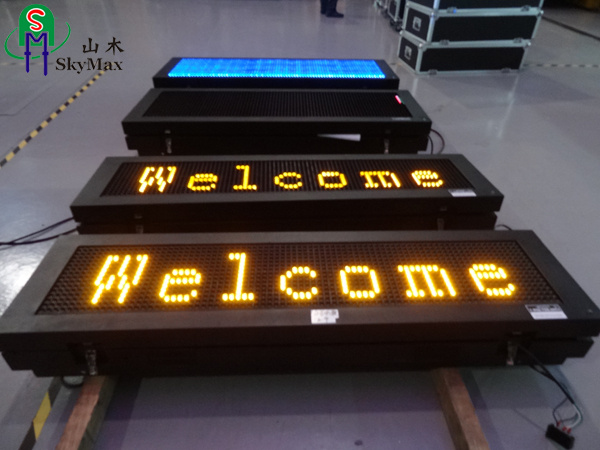

Mono color LED moving text sign.
Red, green, blue, white color is available.
Messages can be sent into the controller card and stored and programmed.
Asychronous system.
The sign is made basing on standard module size, can be made into any size the customers require.
Specification of P16 Outdoor Single Color Display
1. Size of Pixel Diameter(mm): 4.0
2. Pitch of Pixel(mm): 16.0
3. Quantity: 2R/3R
4. Colors: 1
5. Brightness(mcd): 3000 / 4500
6. Frame Rate(Hz/s): 128
7. Refresh Rate(Hz): 240
8. LED Life-span(hour): 80000
9. Mean Time Between Failures(hour): 50000
10. Viewing Angle (horizontal axis): >1600
11. Viewing Angle(vertical axis): >600
12. Data Transfer Range: RS485(1.2KM)/RS232(15m)
13. Viewing Distance (m): 16— 100
14. Module Demensions: WxH(mm): 256X128
15. Module Resolution WxH(pixel): 16X8
16. Maximum Power Consumption of the Module(W): 7 /11
17. Average Power Consumption of the Module(W): 2 /3
18. Pixel Density(pexels/m2): 3906
Specification of P16 Double color display
1. Size of Pixel Diameter(mm): 4.0
2. Pitch of Pixel(mm): 16.0
3. Quantity: 2R1G
4. Colors: 3
5. Brightness(mcd): 6000
6. Frame Rate(Hz/s): 128
7. Refresh Rate(Hz): 240
8. LED Life-span(hour): 80000
9. Mean Time Between Failures(hour): 50000
10. Viewing Angle (horizontal axis): >1600
11. Viewing Angle(vertical axis): >600
12. Data Transfer Range: RS485(1.2KM)/RS232(15m)
13. Viewing Distance (m): 16— 100
14. Module Demensions WxH(mm): 256X128
15. Module Resolution WxH(pixel): 16X8
16. Maximum Power Consumption of the Module(W): 15
