| Prod Model: |
P6 |
| Market: |
High-End |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Die-Casting Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777 |
| Application: |
All, Concerts, Shows and Event, Airport |
Product Description

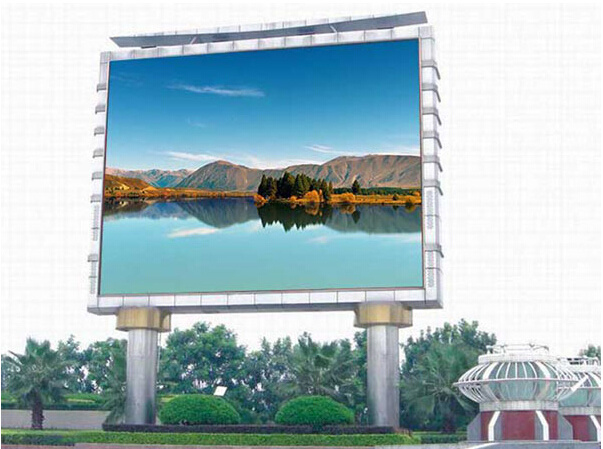

Outdoor SMD LED Display P6
1. High refresh rate.
2. High definition.
3. High brightness.
4. Excellent image quality.
5. With CE,RoHS,FCC, ISO9001, SGS
Contact Us Now to know more: mobile: +86 13538127671
LED module parameter---Full color LED display screen
| No. | Specifications | LED Display |
| 1. | Model | P6 full color indoor led screen display |
| 2. | LED chip | Silan |
| 3. | Physical Pixel Pitch | 6mm |
| 4. | Physical Pixel Density | 27777dots/m2 |
| 5. | Pixel composition | SMD3528 |
| 6. | Moduel Size | 192mm*192mm |
| 7. | Moduel resolution | 32*32dots |
| 8. | Cabinet thickness | < 170 mm |
| 9. | Bracket of cabinet | Easy to install onto the LED cabinet and unistall . |
| 10. | Brightness | ≥ 2000cd/ m2 |
| 11. | Colors | 16.7million |
| 12. | Viewing angle | Horizontal ≥120°, Vertical : ≥ 120° |
| 13. | Viewing distance | 5m -100m |
| 14. | Scan frequency | ≥600 Hz There will be one receive card in each cabinet ,so that the LED display wont sparked .Also it is very easy to move and connetct |
| 15. | Video Frame Rate | ≥150 fps |
| 16. |
Control method |
Controlled by PC, synchronous display |
| 17. | Life span( half brightness) | ≥100,000 hours |
| 18. | Weight | 30Kg /sqm for aluminum cabinet |
| 19. | Average power consumption | 300W/sqm |
| 20. | Peak power consumption | 1000W/sqm |
| 21. | Input voltage | AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
| 22. | Operating Environment | Temperature:-20+60 Humidity:10%95%RH |
| 23. | Operating system | Windows 98/2000/ME/XP |
| 24. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI
|
Why Chengxinguang(CXG) LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: ACE LED) is located in Shenzhen, China, a major production base of global LED display screen industry. Chengxinguang is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
Chengxinguang is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
Chengxinguang uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose Chengxinguang as their partner for LED displays.
