| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years Warranty After Shipping |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Display Function: |
Text Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Dot Matrix Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Pixel Configuration: |
1r |
Product Description

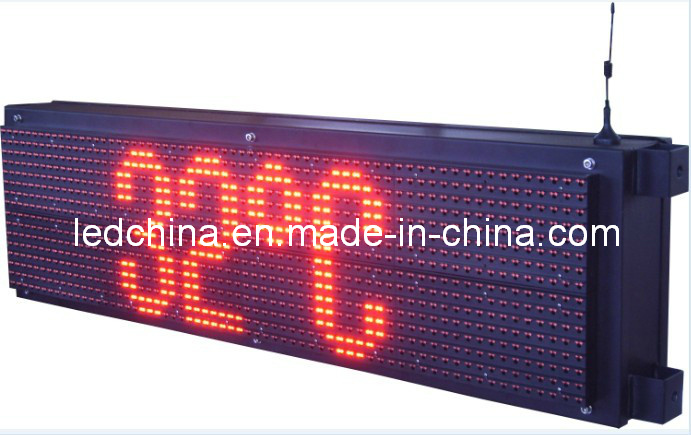

Outdoor Red Color LED Scrolling Display
1. Energy saving.
2. Competitive price.
3. Superior Uniformity.
4. We can expand the size of the LED display according to our requirement based on the cabinet size.
5. Having good lightening accordance and no mosaic.
6. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
7. Good heat emission capability.
8. Environmental-friendly.
| Technical Parameters |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | DIP346 | 520mcd | 620-630nm | 110°/50° |
| Module Specifications |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Configuration | 1R |
| 3 | Unit Module Size | 320mm x 160mm |
| 4 | Module Resolution | 32 x 16 pixels |
| 5 | Pixel Density | 10000 dots/m2 |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 1920mm x 480mm x 165mm |
| 2 | Cabinet Resolution(W X H) | 192 x 48 pixel dots |
| 3 | Module Quantity(W X H) | 6 x 3 pcs |
| 4 | Cabinet Materials | Standard cabinet |
| Whole Screen Specifications |
| 1 | Display Size | W1.92m x H0.48m total 0.9216 |
| 2 | Resolution of whole screen(W X H) | 192 x 48 pixel dots |
| 3 | Cabinet Quantity | 1pc |
| 4 | Screen Brightness | ≥3500cd/ |
| 5 | Driving Mode | 1/4 scan |
| 6 | Max Power Consumption | 230W |
| 7 | Average Power Consumption | 185W |
| 8 | Screen Weight | 45kg |
| 9 | Display Colors | Red color only |
| 10 | Frame Frequency | ≥60Hz |
| 11 | Refresh Frequency | ≥600Hz |
| 12 | Screen Life-span | ≥100,000 hours |
| 13 | Blind Spot Rate | <1/10000 |
| 14 | Protective Scale | IP65 |
| 15 | Screen Plainness | <±1mm |
| 16 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 17 | Environment Temperature & Humidity | Temperature:-20ºC~+60ºC
Humidity:10%~90% RH |
| 18 | Control Mode | Asynchronous control
|
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
